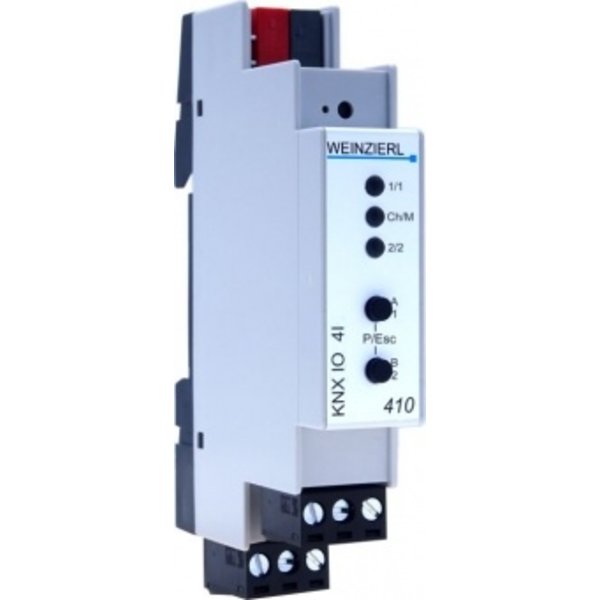

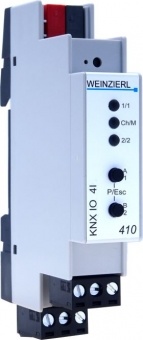

WEINZIERL 5230 4-ch. binary input 12-230V - KNX IO 410 (4I)
€81,02 Excl. tax
€106,90 Excl. tax
€98,03 Incl. tax €129,35 Incl. tax. Out of stock, but available
€98,03 Incl. tax €129,35 Incl. tax. Out of stock, but available
Compact KNX binary input with 4 channels for lighting, blinds, etc. Supports 12-230V switches, pulse counting, local control, 3 LEDs, and 16 logic/timer functions. Read more
Specifications
Brand:
Weinzierl
Article number:
5230
EAN:
426026277305
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information
Weinzierl KNX IO 410 (4I) - Article No. 5230
Product Description
The KNX IO 410 is a compact binary input with 4 channels, designed for controlling lighting, blinds, and other devices through conventional switches with an external voltage range of 12 to 230 V. The device also supports pulse counting.
Two control buttons and three LEDs allow local control and device status visualization. In addition to the four input channels, this device features 16 independent logic or timer functions, offering flexible automation options.
Technical Specifications
- Mechanical Data:
- Housing material: Plastic
- Mounting: DIN-rail, width 1 TE
- Weight: approx. 50 grams
- Control and Display:
- 2 buttons for local operation with menu options
- 3 multi-color LEDs for status indication
- KNX programming LED and recessed programming button
- KNX Data:
- KNX device model: System B
- Compatibility: from ETS 4.2 or higher
- Programming: KNX bus (red/black terminals)
- Connections:
- KNX bus terminals (red/black)
- Removable screw terminals (3-pin) for binary input channels 1 and 2
- Removable screw terminals (3-pin) for binary input channels 3 and 4
- Inputs (binary):
- Input voltage: 12-230 V (AC/DC)
- Input current: <1 mA
- Maximum cable length: dependent on input voltage and type
- Function: Supports pulse counting for switches
- Logic and Timer Functions:
- Number of independent functions: 16
- Logical operations: AND, OR, NOT, XOR
- Timer functions: on/off delay, pulse duration
- Adjustable timers and delays for each logical function
