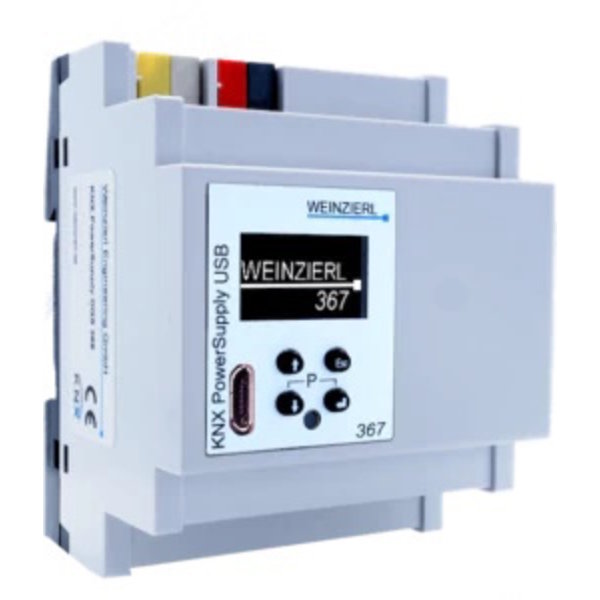

WEINZIERL 5219 KNX Power Supply USB 367 640 mA

257,28 Excl. tax €399,50 Excl. tax
€311,31 Incl. tax 483,40 Incl. tax.
Out of stock, but available
Unit price: €257,28 / Piece
Efficient KNX bus power supply with 640 mA, integrated USB interface, and OLED display. Equipped with choke and diagnostics, ideal for compact setups. Read more

Specifications

Brand:
Weinzierl
Article number:
5219
EAN:
4260262772190
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.

Information

Datasheet

Manuel

WEINZIERL KNX PowerSupply USB 367 - Article No: 5219

Technical Specifications

The KNX PowerSupply USB 367 is an efficient 640 mA bus power supply with an integrated USB interface, compactly designed at only 4 TE (72 mm). The device includes a choke and an additional auxiliary power output. The integrated KNX node monitors output current, bus voltage, and enclosure temperature, supported by an OLED display for local parameter display.

Main Features:

  • 640 mA KNX bus power supply with integrated diagnostic and logic functions
  • Built-in USB interface for secure connection to the KNX bus
  • Compatible with ETS 4.2 and higher
  • Includes choke for high efficiency
  • OLED display with user-friendly buttons

Technical Data

Mechanical Data

  • Enclosure material: Plastic
  • DIN rail mounting width of 4 TE
  • Weight: approx. 260 g

Control and Display Elements

  • OLED display with a resolution of 128x64 pixels
  • KNX programming LED
  • Four buttons for local control

KNX Interface

  • Device Model: System B
  • Max APDU Length: 55
  • Protocols: HID/cEMI

Electrical Specifications

  • Input voltage: 230 V∿, 50 Hz
  • Nominal voltage: 30 V⎓, SELV
  • Nominal current: 640 mA (shared output)
  • Auxiliary voltage: 30 V⎓, SELV

Environmental Conditions

  • Operating temperature: -5°C to +45°C
  • Storage temperature: -25°C to +70°C
  • Relative humidity: 5-93% (non-condensing)

Connections

  • Plug-in terminal for 230 V
  • Terminal for KNX output (red/black)
  • Terminal for auxiliary output (yellow/white)
  • Micro-USB 2.0 interface

Safety Guidelines

This device must be installed and commissioned by a qualified electrician. Do not open the device and follow safety regulations. A 16A external fuse is required during installation.

Note: The device is suitable only for dry indoor environments and is intended for installation in distribution boxes or small housings on DIN rails.
