HU 1 S RF KNX – 1-channel RF heating actuator flush-mounted, Data Secure
€114,84 Excl. tax
€199,73 Excl. tax
€138,96 Incl. tax €241,67 Incl. tax. Out of stock, but available
€138,96 Incl. tax €241,67 Incl. tax. Out of stock, but available
1-channel RF flush heating actuator with integrated controller, silent 230 V AC valve control, 2 binary inputs, valve protection, Data Secure. Read more
Specifications
Brand:
Theben
Article number:
4941641
EAN:
4003468491782
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information

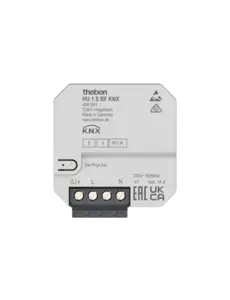

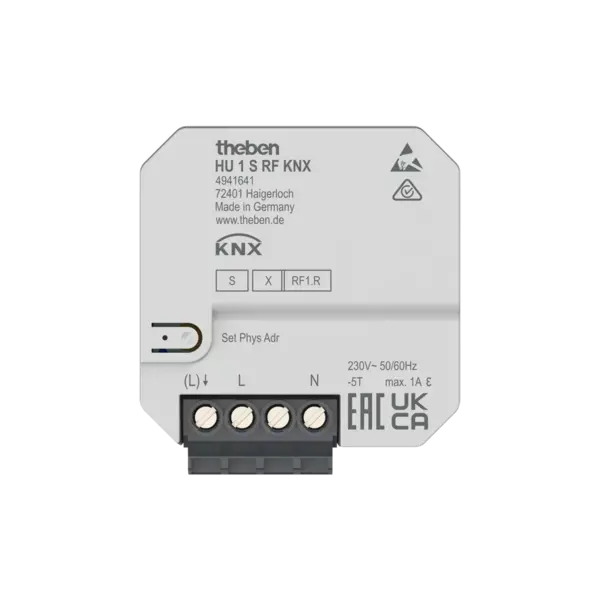

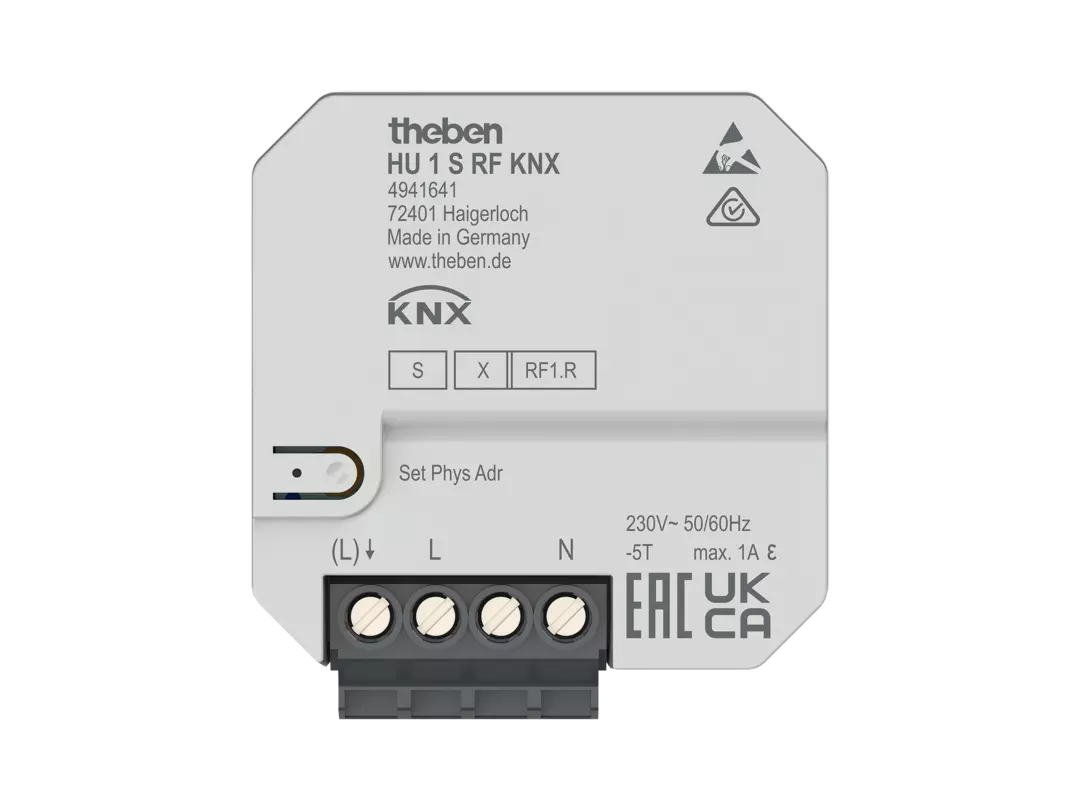

Theben HU 1 S RF KNX
Art. No.: 4941641
Application
The HU 1 S RF KNX is a 1-channel RF flush-mounted heating actuator designed for silent control of thermal actuators (230 V AC) in KNX systems. It includes an integrated temperature controller, supporting both heating and cooling modes. Communication is wireless via KNX RF with support for KNX Data Secure for encrypted data exchange.
Features
- 1-channel RF flush-mounted actuator for heating/cooling
- Silent operation of thermal actuators (230 V AC)
- Integrated temperature controller for heating and cooling
- Valve protection function for long-term reliability
- 2 binary inputs for potential-free contacts such as pushbuttons, switches, or temperature sensors
- Factory-assigned input-to-output mapping allows function testing before programming
- Secure commissioning and communication via KNX Data Secure
- Compact housing for easy, space-saving flush installation
- Integrated temperature monitoring for safe operation under overload conditions
Technical Specifications
| Article number | 4941641 |
| EAN | 4003468491782 |
| KNX bus voltage | Via KNX bus, < 4 mA |
| Power supply | 230 V AC, 50–60 Hz |
| Standby consumption | < 0.4 W |
| Frequency | 50–60 Hz |
| Number of channels | 1 |
| Contact type | 1 A |
| Mounting type | Flush-mounted |
| Module type | Basic module |
| Ambient temperature | -5 °C to +45 °C |
| Protection class | II |
| Predecessor | 4941640 – HU 1 RF KNX |
Important Notes
- Ideal for energy-efficient heating and cooling control in residential and commercial buildings.
- Binary inputs are pre-configured for direct function tests without prior programming.
- The valve protection function prevents actuator seizure during extended inactivity.
- KNX Data Secure ensures encrypted and secure communication.
- Compact design allows installation in standard flush-mounted boxes.
