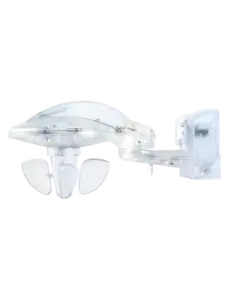

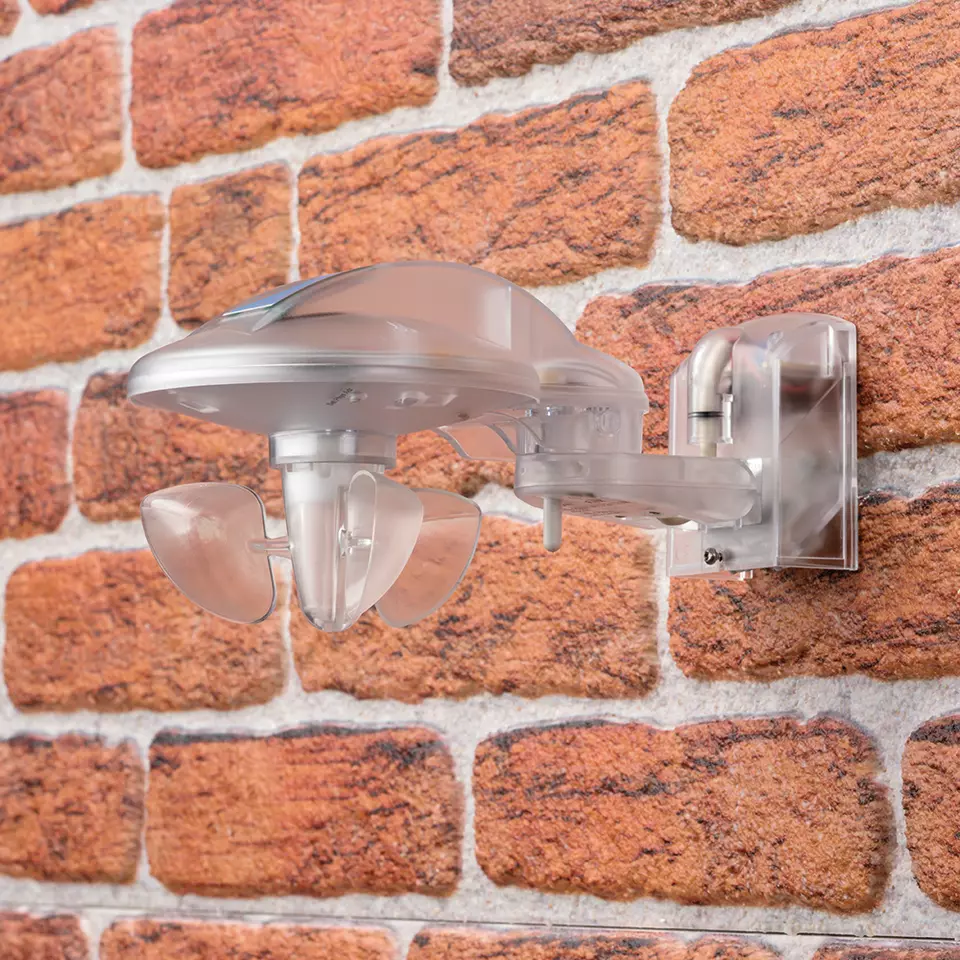

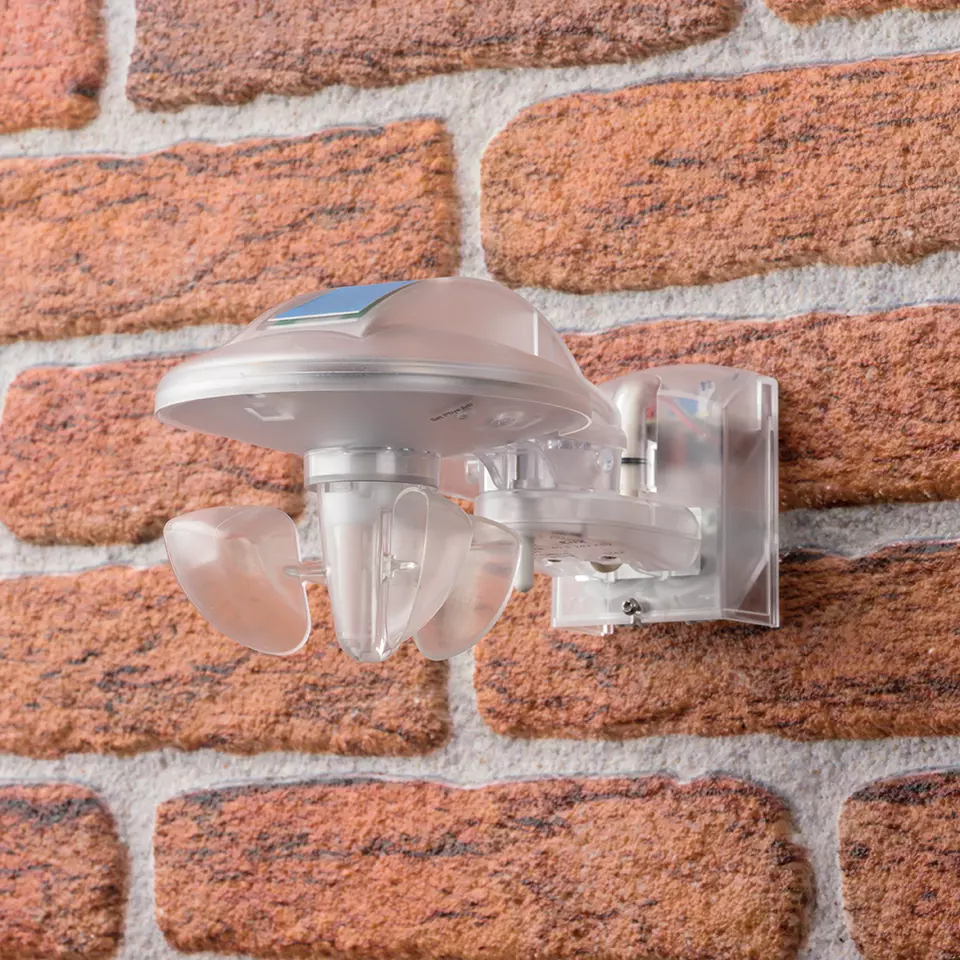

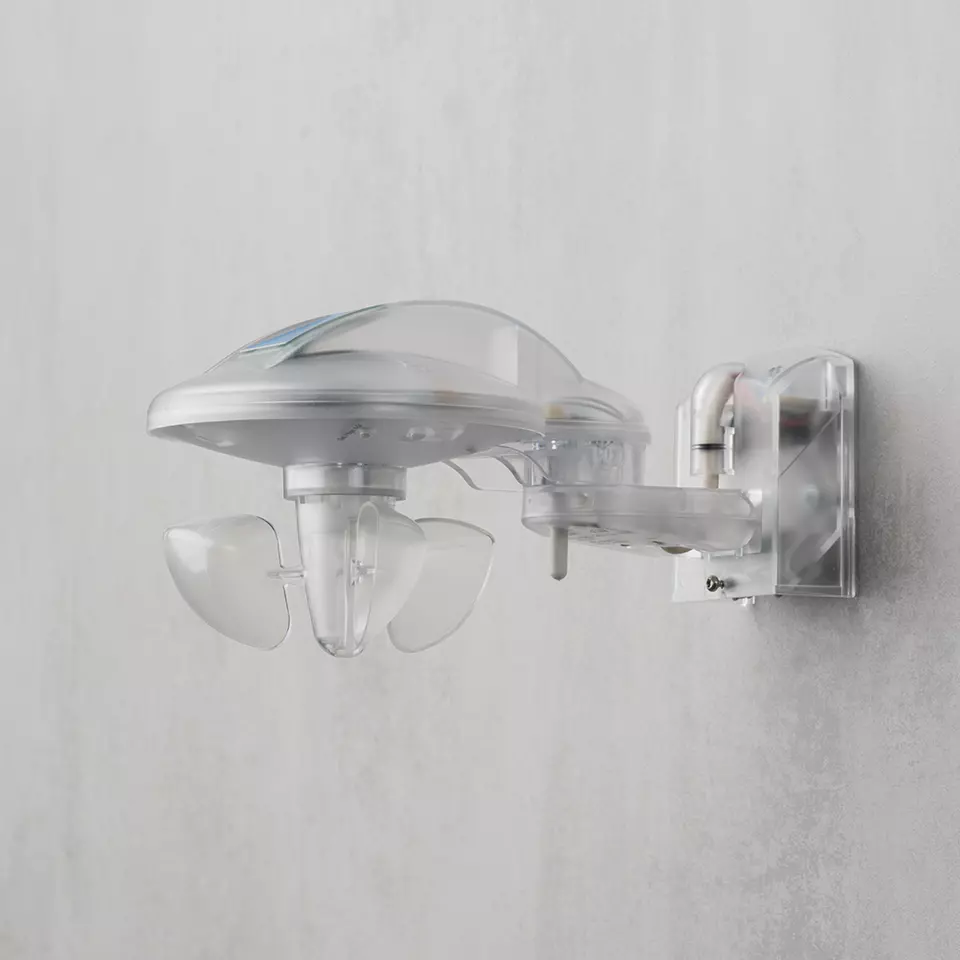

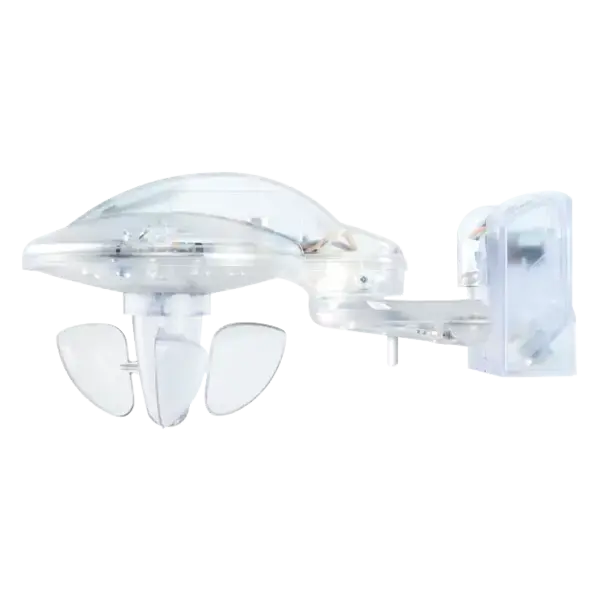

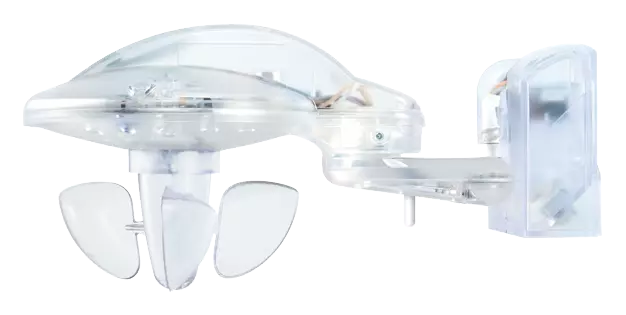

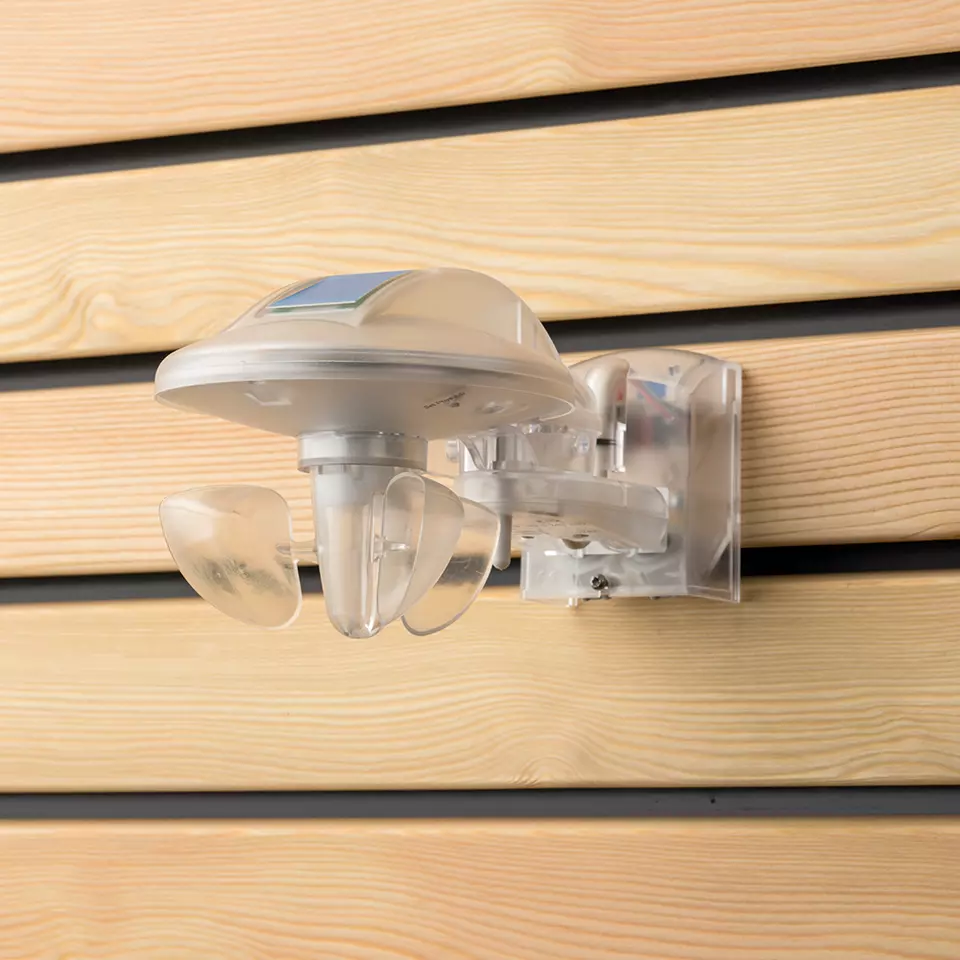

Meteodata 140 S GPS KNX – Weather Station with GPS Receiver
€659,45 Incl. tax €1.146,18 Incl. tax. Out of stock, but available
Specifications
Information
Theben Meteodata 140 S GPS KNX
Art. no. 1409208
Application
The Meteodata 140 S GPS KNX is an advanced combination sensor and weather station for use in KNX systems. It accurately detects wind, rain, brightness, and temperature, enabling automated sun shading control based on real-time weather data and solar position.
Main Features
- Combination sensor/weather station for KNX systems
- Integrated GPS receiver for automatic calculation of elevation and azimuth
- Fully automatic sun shading control for up to 8 façades
- Detection of wind, rain, brightness, and temperature
- Rain sensor with integrated heating
- 3 integrated brightness sensors for façade-based shading
- 4 additional threshold channels for external KNX sensors
- 6 logic channels for flexible applications
- Detection and analysis take place directly in the device
- Weather data display possible via multifunction display (e.g., VARIA 826 KNX)
- Operation without mains voltage possible (GPS and rain sensor heating not functional)
Technical Specifications

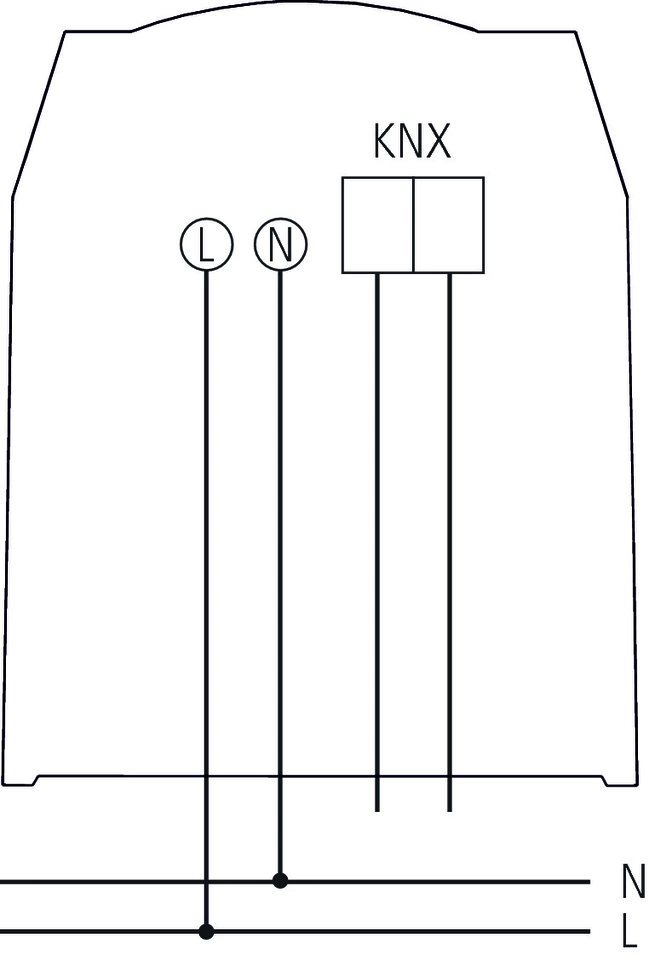

| Operating voltage: | 110 – 230 V AC |
|---|---|
| Frequency: | 50 – 60 Hz |
| KNX bus voltage: | ≤ 10 mA |
| Standby power consumption: | < 0.5 W |

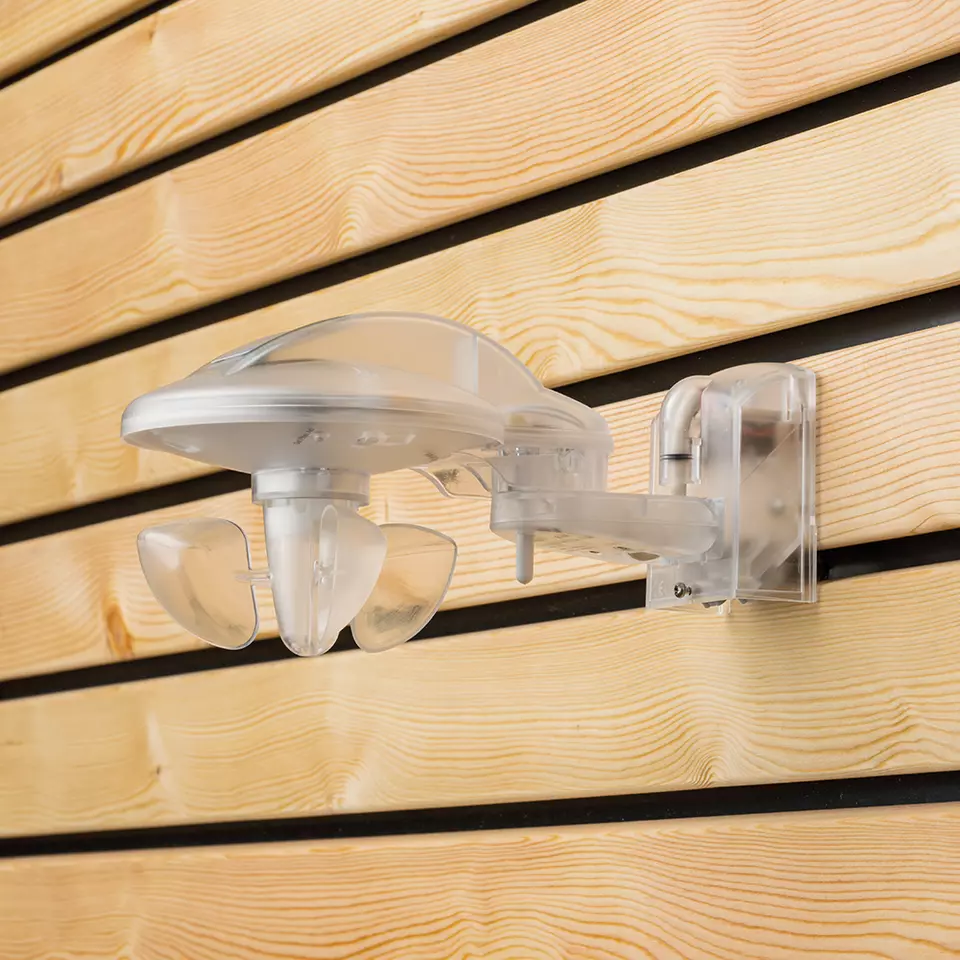

| Mounting type: | Wall mounting |
| Brightness measuring range: | 1 – 100,000 lx |
| Adjustable temperature range: | -30 °C to +60 °C |
| Wind speed measuring range: | 2 – 30 m/s |
| Ambient temperature: | -20 °C to +55 °C |
| Protection rating: | IP44 |
| Protection class: | II |
Important Notes
- The GPS module does not function without mains voltage.
- The rain sensor heating is only active when mains voltage is connected.
- Load specifications are based on exemplary selected light sources and represent typical values.
- Subject to technical changes and typographical errors.
- More information at: www.theben.eu/products/1409208
