Meteodata 140 basic KNX – Sensor for wind, light and temperature
€319,44 Incl. tax €555,24 Incl. tax. Out of stock, but available
Specifications
Information

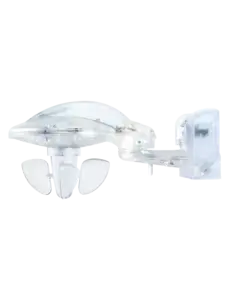

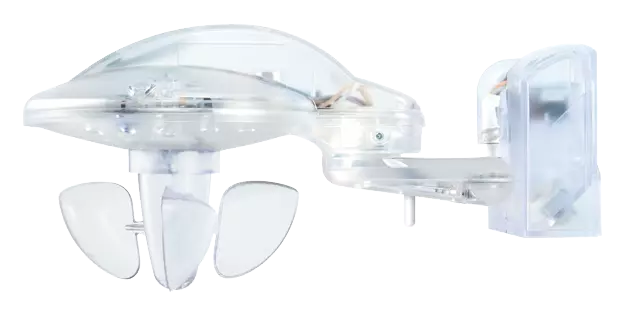

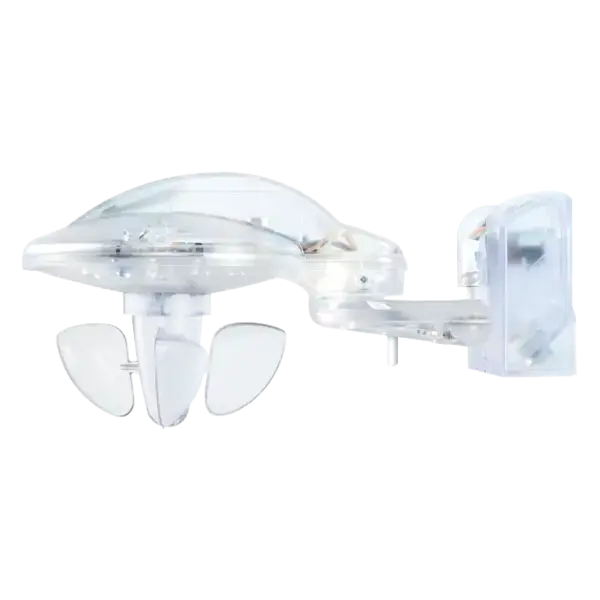

Theben Meteodata 140 basic KNX
Art. no. 1409205
Application
The Meteodata 140 basic KNX is a versatile combination sensor and weather station for KNX systems. It is designed to detect wind, brightness, and temperature, enabling fully automatic sun shading control for up to three façades based on current weather conditions.
Main Features
- Combination sensor / weather station for integration into KNX installations
- Detection of wind, brightness, and temperature
- Automatic sun shading for up to 3 façades using 3 integrated brightness sensors
- Detection and analysis take place directly in the device – no additional modules required
- 4 additional threshold channels for connecting external KNX sensors
- 6 logic channels for advanced control scenarios
- Weather data display possible via multifunction display (e.g., VARIA 826 KNX)
Technical Specifications
| KNX operating voltage: | Bus voltage, ≤ 10 mA |
|---|---|

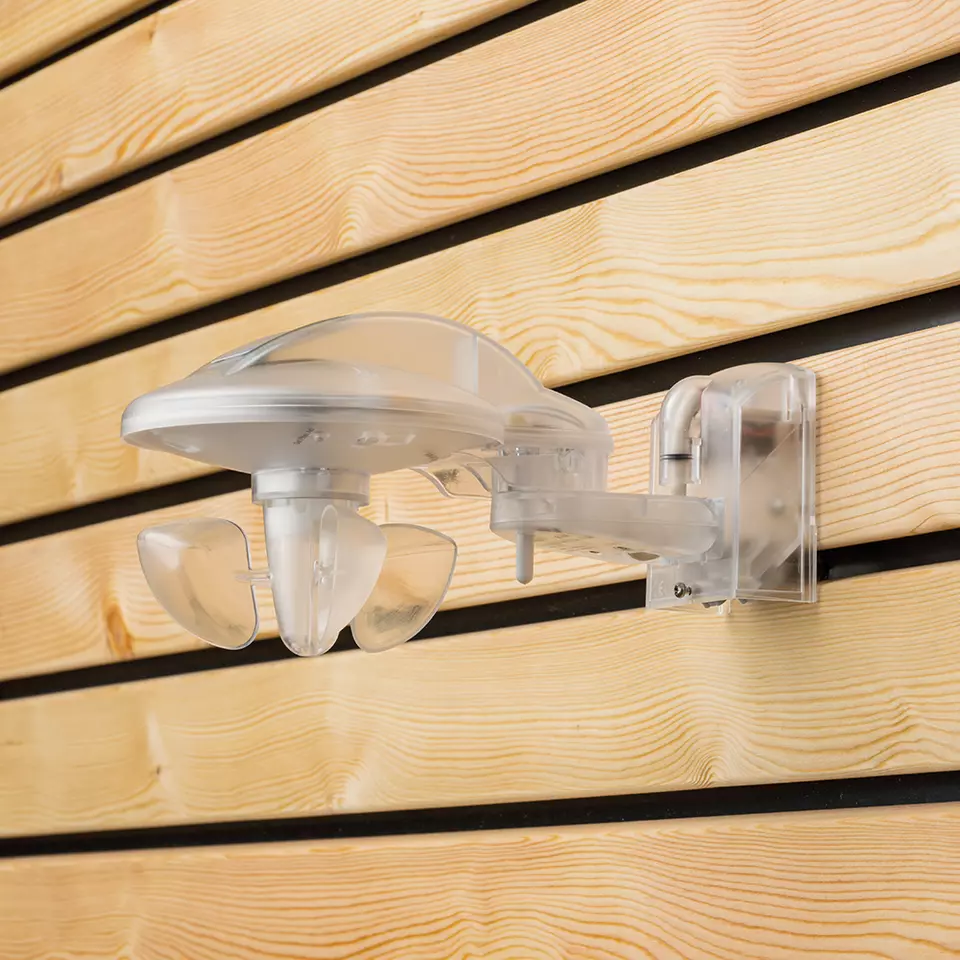

| Mounting type: | Wall mounting |
| Brightness measuring range: | 1 – 100,000 lx |
| Adjustable temperature range: | -30 °C to +60 °C |
| Wind speed measuring range: | 2 – 30 m/s |
| Ambient temperature: | -20 °C to +55 °C |
| Protection rating: | IP44 |
| Protection class: | III |
Important Notes
- The load values are based on exemplary selected light sources and represent typical values.
- Subject to technical changes and typographical errors.
- More information at: www.theben.eu/products/1409205
