Meteodata 140 S 24V KNX – Weather sensor with sun tracking control
€481,58 Incl. tax €837,21 Incl. tax. Out of stock, but available
Specifications
Information

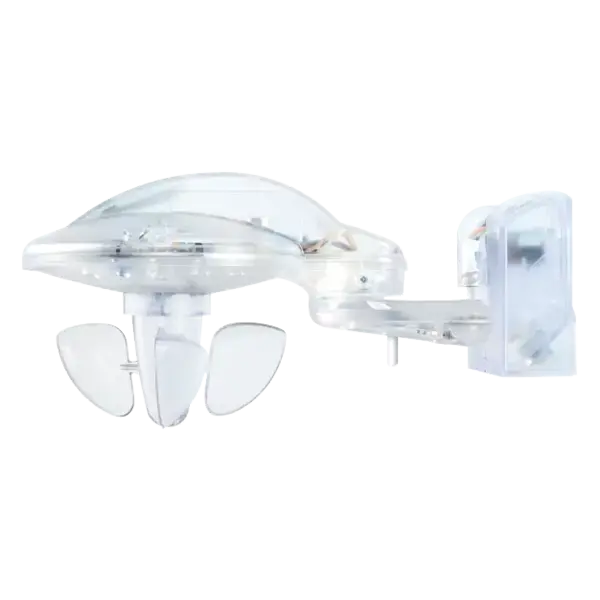

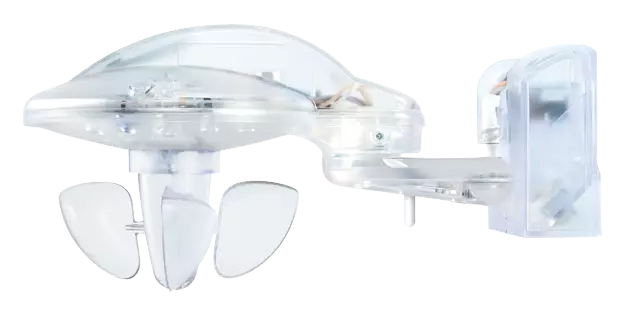

Theben Meteodata 140 S 24V KNX
Art. no. 1409201
Application
The Meteodata 140 S 24V KNX is a high-performance combination sensor and weather station for KNX systems. It accurately measures wind, rain, brightness, and temperature, and enables fully automatic control of blinds and sun protection based on real-time weather conditions and sun tracking. The sensor operates on 24V DC, making it suitable for low-voltage installations.
Main Features
- Combination sensor / weather station for KNX building automation
- Power supply: 15 – 34 V DC (nominal 24V)
- Detection of wind, rain, brightness, and temperature
- Fully automatic sun shading control with solar position tracking
- Rain sensor with integrated heating
- Measurement and data processing directly in the device – no external unit required
- 3 integrated brightness sensors for shading control of up to 8 façades
- 4 threshold channels for connecting external KNX sensors
- 6 logic channels for flexible and advanced automation tasks
- Weather data display via multifunctional display (e.g. VARIA 826 KNX)
Technical Specifications
| Operating voltage: | 15 – 34 V DC |
|---|---|
| KNX bus voltage: | ≤ 10 mA |
| Standby power consumption: | < 0.5 W |

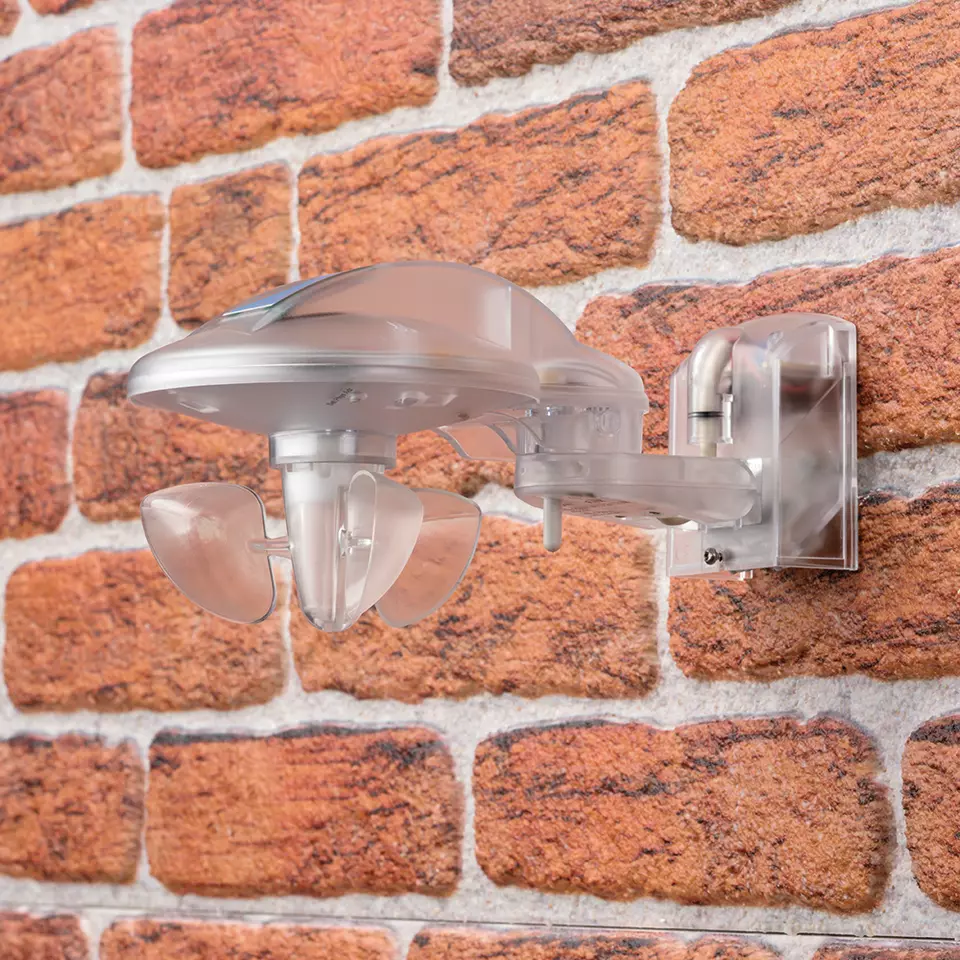

| Mounting type: | Wall mounting |
| Brightness measurement range: | 1 – 100,000 lx |
| Adjustable temperature range: | -30 °C to +60 °C |
| Wind speed measurement range: | 2 – 30 m/s |
| Ambient temperature: | -20 °C to +55 °C |
| Protection rating: | IP44 |
| Protection class: | III |
Important Notes
- The rain sensor heating is only active when a 24V DC power supply is connected.
- The specified load values are based on exemplary selected light sources and represent typical data.
- Subject to technical changes and typographical errors.
- More information at: www.theben.eu/products/1409201
