Tecla 55 X6 Touch sensor push button 6-fold

Name: Zennio Tecla 55 X6 Touch sensor push button 6-fold
Brand: Zennio
Price: 108.41 EUR
Availability: OutOfStock
Rating: 0 (0 reviews)

0 Review(s)

€108,41 Excl. tax €138,99 Excl. tax
€131,18 Incl. tax €168,18 Incl. tax. Out of stock, but available

Unit price: €108,41 / Piece

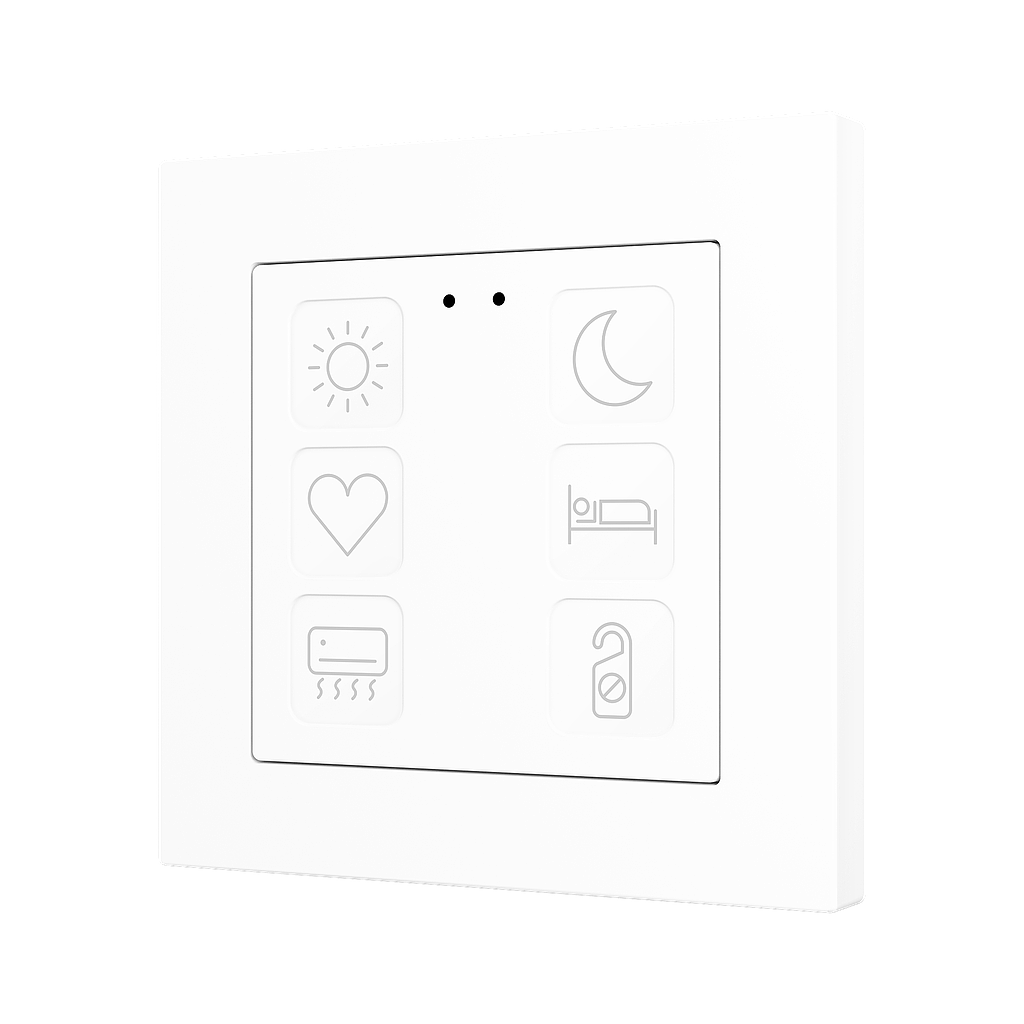

Capacitive 6-fold tastsensor with customizable icons, backlighting, thermostat, and temperature probe input. Available in white, silver, anthracite, or custom. Read more

Specifications

Brand:

Zennio

Article number:

ZVIT55X6W

EAN:

8411080801272

Availability:

Out of stock, but available

Delivery time:

Will be shipped within approximately 8 working days.

Due to the holidays, orders may be delayed and pickup is not possible.

Information

Datasheet

Manual

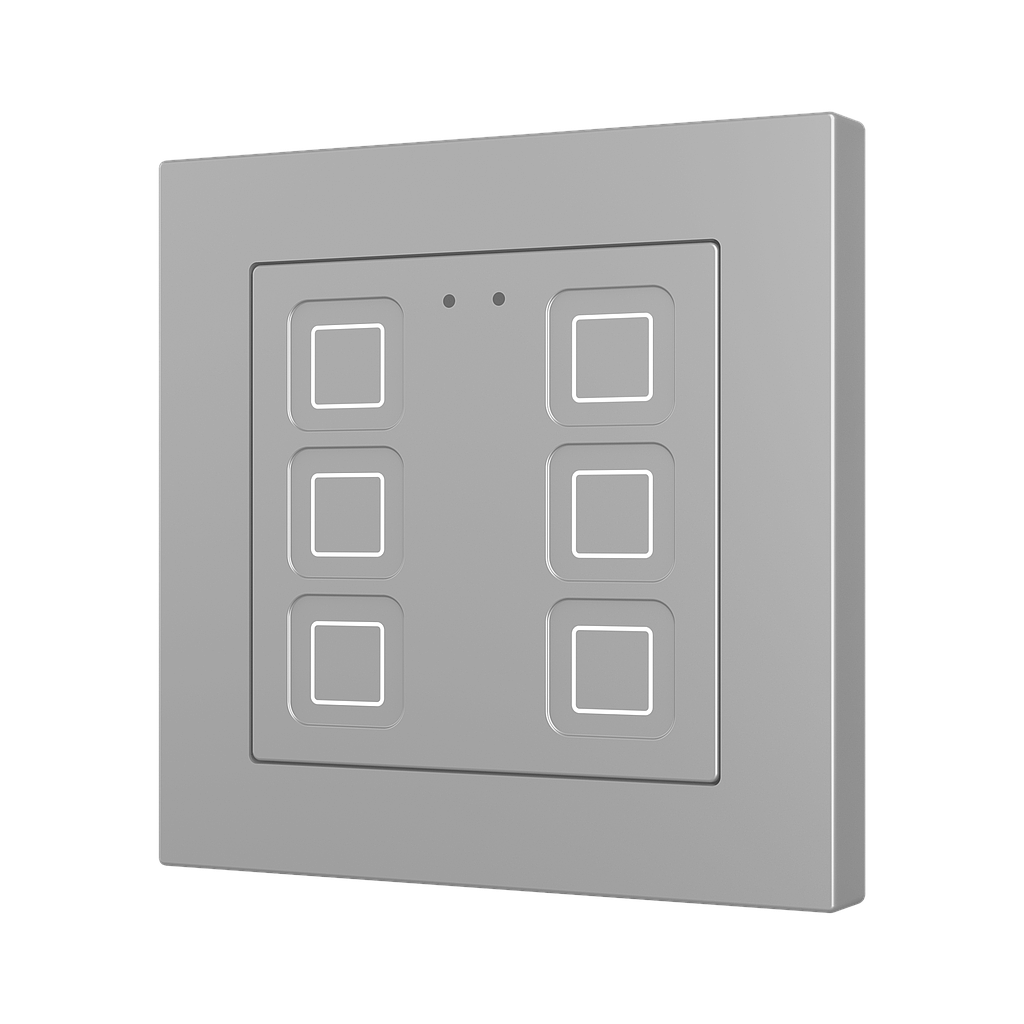

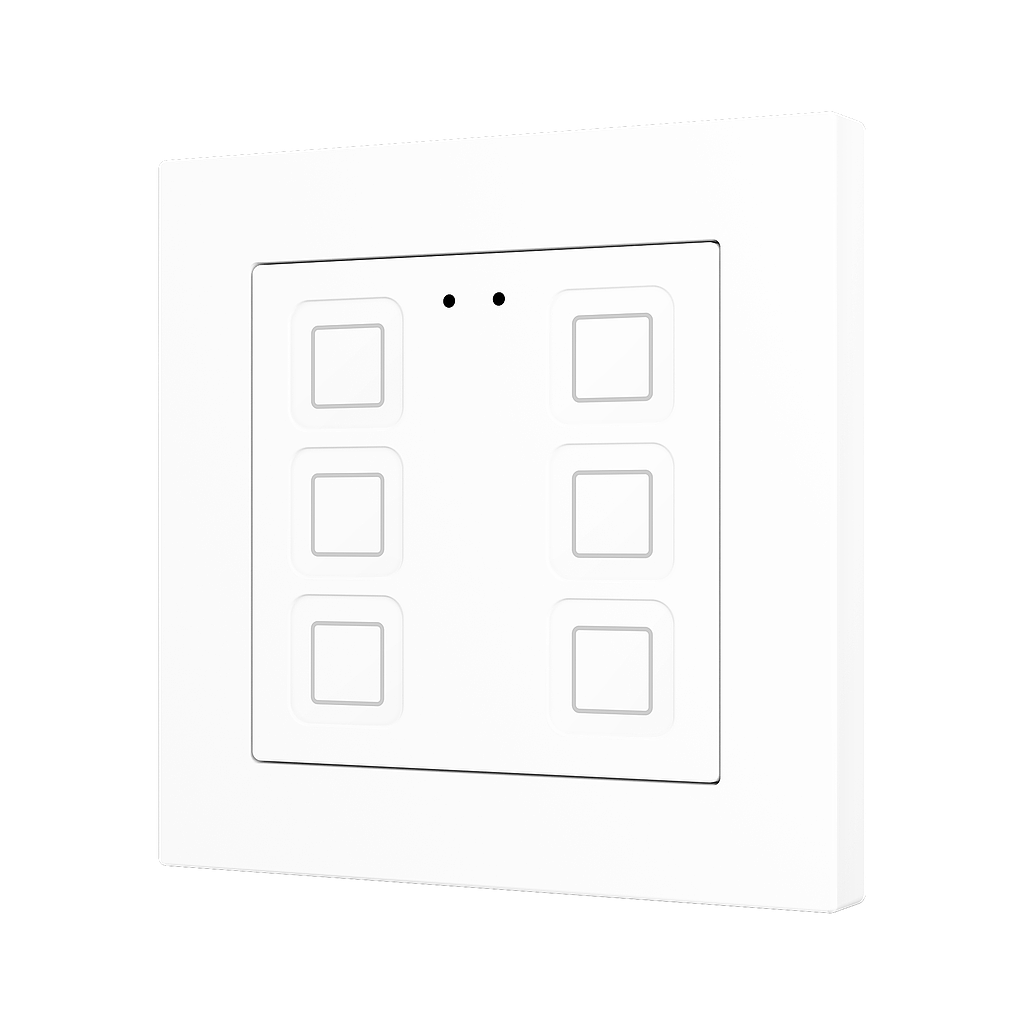

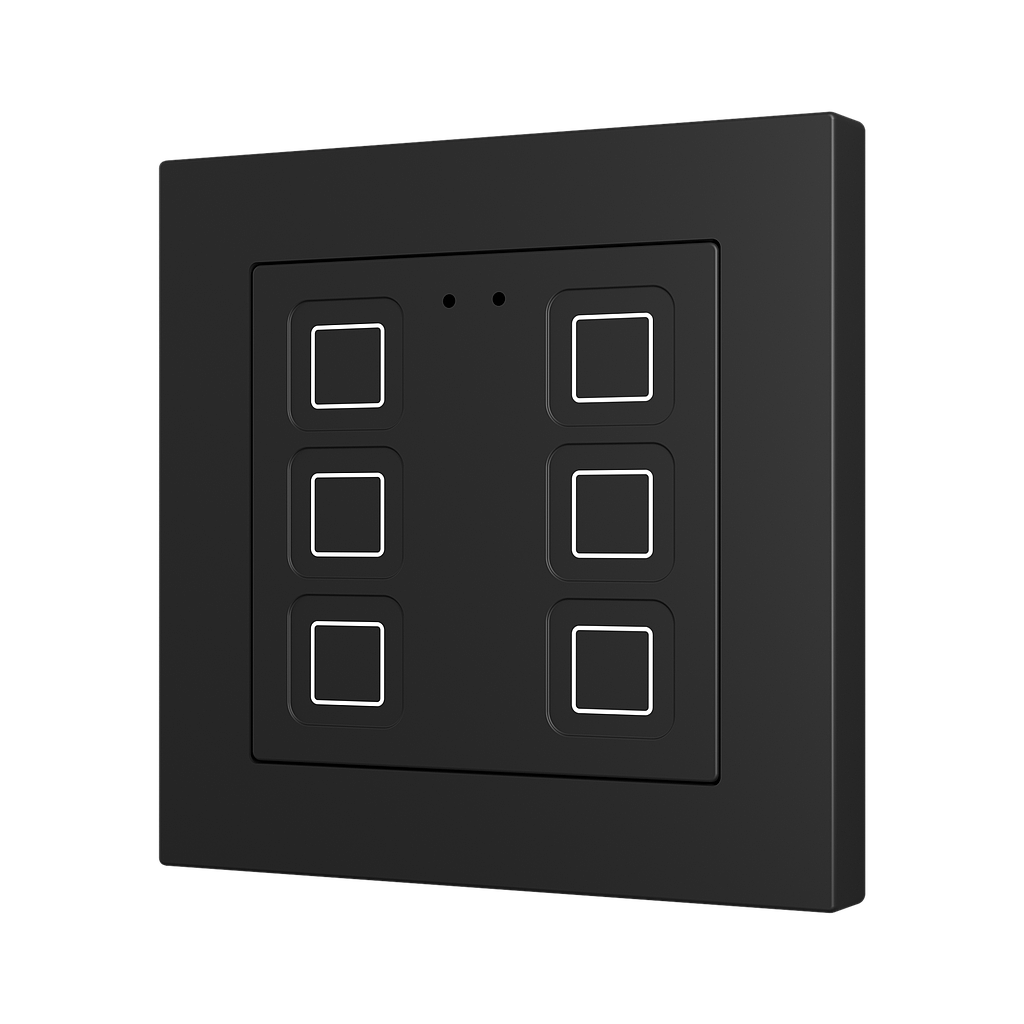

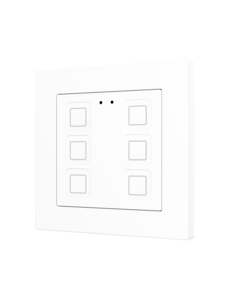

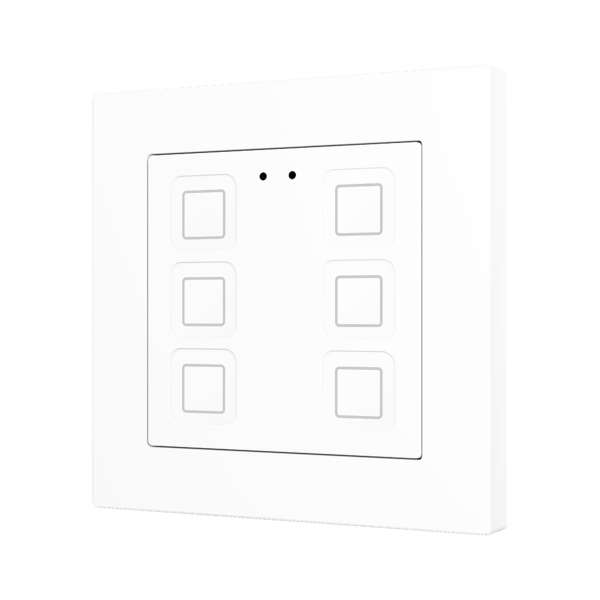

KNX 6-Fold Tastsensor Tecla 55 X6

The Tecla 55 X6 is a capacitive KNX tastsensor with six touch zones, designed for smart home and building automation. The sensor features customizable icons, dynamic backlighting, and an integrated thermostat. Compatible with 55x55 mm frames.

Key Features

6 capacitive touch zones with dynamic backlighting.
Integrated thermostat and connection for an external temperature probe.
Acoustic feedback for touch confirmation.
Proximity and light sensors for intelligent functionality.
Full data saving in case of KNX bus failures.
Available in white (RAL 9016), silver (RAL 9006), and anthracite (RAL 9004).
Compatible with 55x55 mm frames and Zennio devices.
Suitable for flush mount installation in standard back boxes.

Technical Specifications

Model	Tecla 55 X6
Dimensions	55.5 x 55.5 x 25.6 mm
Power Supply	21-31 VDC (typical 29 VDC)
Maximum Energy Consumption	9.3 mA at 29 VDC (269.7 mW)
Protection Class	IP20
Temperature Sensor	-30 to +90 °C, accuracy ±0.5 °C
Housing Material	PC+ABS, halogen-free
Weight	38 grams
