Datasheet

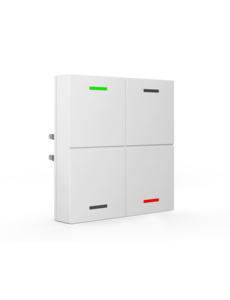

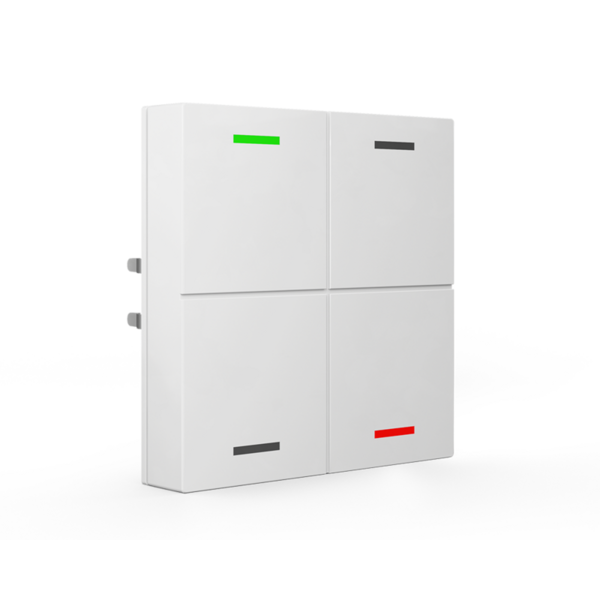

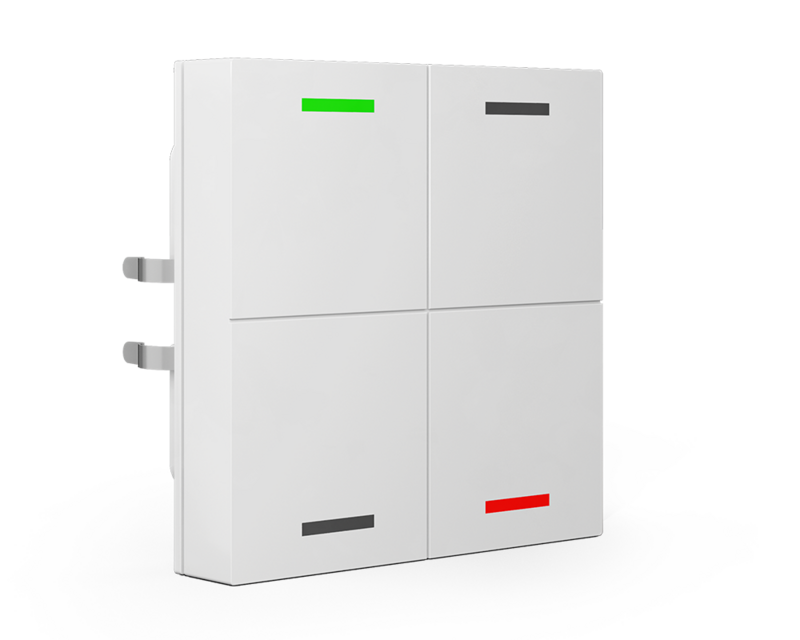

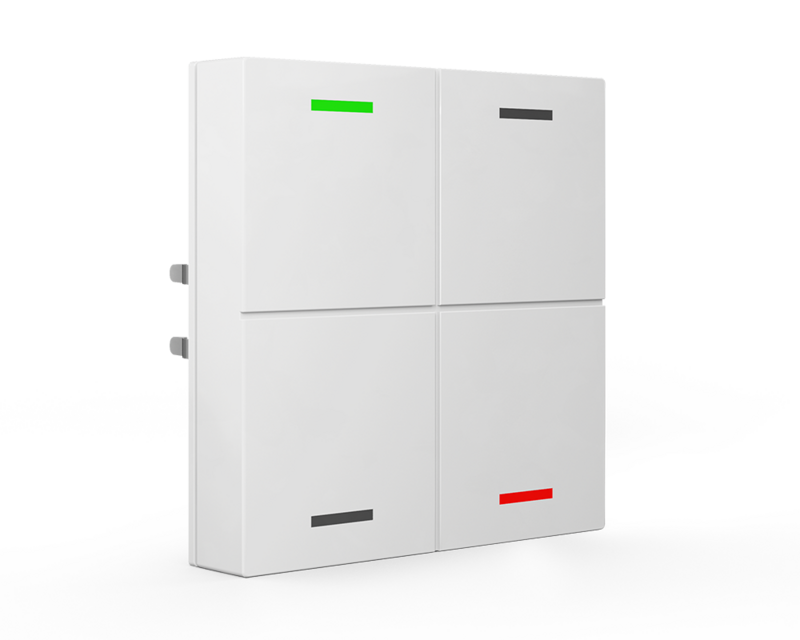

Push-button Lite 55, White Glossy Finish, 4-fold

The Push-button Lite 55 is a versatile KNX push-button with 4 programmable buttons and color-adjustable RGBW status LEDs. In addition to functions like switching, dimming, and shutter control, this model features a multi-touch function, allowing up to four values to be sent to different objects.

With a long or extra-long button press, a group of shutters can be controlled. The LED brightness can be adjusted based on a day/night or brightness object.

This model is also available with a temperature sensor and includes 4 integrated logic blocks for additional functionality.

Technical Data

• Number of buttons: 4 (or 1/2, depending on version)
• RGBW status LEDs per button
• Temperature sensor: Optional (0 to +40°C)
• Power supply: KNX Bus, typ. <0.5W
• Dimensions: 55mm x 55mm x 25mm
• Protection class: IP20
• Operating temperature: 0°C to +45°C

Available Models and Article Numbers

• BE-TAL5501.01 - Push Button Lite 55 1-fold, White glossy, Version NEUTRAL
• BE-TAL55T1.01 - Push Button Lite 55 1-fold, White glossy, Version NEUTRAL, with temperature sensor
• BE-TAL5501.A1 - Push Button Lite 55 1-fold, White glossy, Version UP/DOWN symbol
• BE-TAL5501.B1 - Push Button Lite 55 1-fold, White glossy, Version I/O symbol
• BE-TAL55T1.B1 - Push Button Lite 55 1-fold, White glossy, Version I/O symbol, with temperature sensor
• BE-TAL5502.01 - Push Button Lite 55 2-fold, White glossy, Version NEUTRAL
• BE-TAL55T2.01 - Push Button Lite 55 2-fold, White glossy, Version NEUTRAL, with temperature sensor
• BE-TAL5502.A1 - Push Button Lite 55 2-fold, White glossy, Version UP/DOWN symbol
• BE-TAL5502.B1 - Push Button Lite 55 2-fold, White glossy, Version I/O symbol
• BE-TAL55T2.B1 - Push Button Lite 55 2-fold, White glossy, Version I/O symbol, with temperature sensor
• BE-TAL5502.C1 - Push Button Lite 55 2-fold, White glossy, Version UP/DOWN and I/O symbol
• BE-TAL55T2.C1 - Push Button Lite 55 2-fold, White glossy, Version UP/DOWN and I/O symbol, with temperature sensor
• BE-TAL5502.D1 - Push Button Lite 55 2-fold, White glossy, Version I/O and UP/DOWN symbol
• BE-TAL55T2.D1 - Push Button Lite 55 2-fold, White glossy, Version I/O and UP/DOWN symbol, with temperature sensor
• BE-TAL5504.01 - Push Button Lite 55 4-fold, White glossy, Version NEUTRAL
• BE-TAL55T4.01 - Push Button Lite 55 4-fold, White glossy, Version NEUTRAL, with temperature sensor

For project design and commissioning of the Push-button Lite 55, it is recommended to use the ETS software.
