Push-button Lite 55, 2-fold pure white gloss
€80,22 Incl. tax €123,42 Incl. tax. Out of stock, but available
Specifications
Information

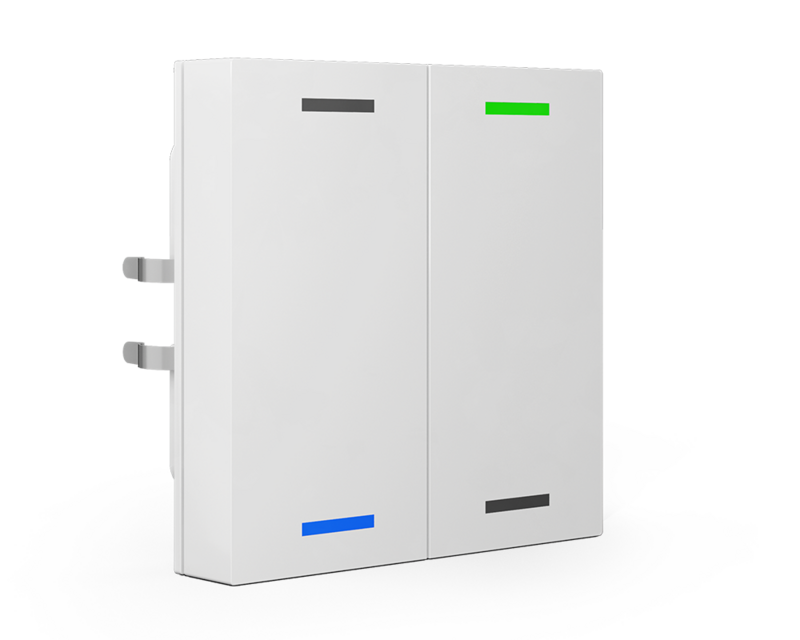

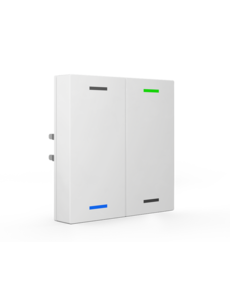

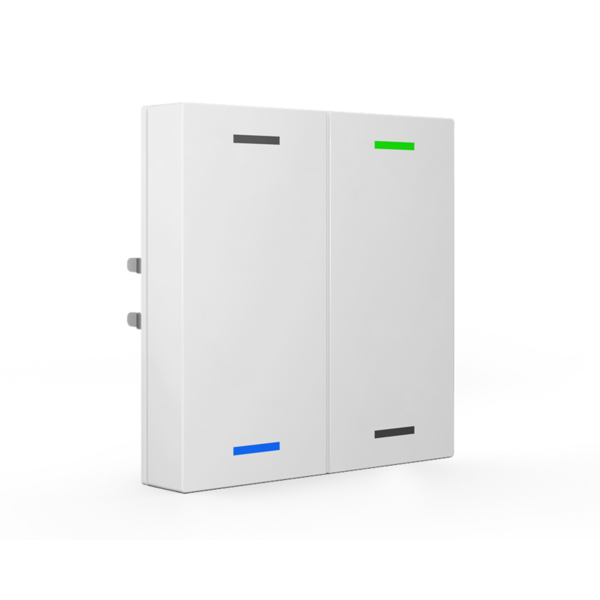

MDT Tactile Sensor Lite 55 (2-fold, white glossy)
The MDT Tactile Sensor Lite 55 is a versatile KNX sensor with vertically arranged 2-fold button operation and adjustable RGBW status LEDs. The sensor offers flexible control for switching, dimming, blinds, and sending values. It is available in different versions with symbols like UP/DOWN and I/O, as well as models with an integrated temperature sensor.
Main Features:
- Flexible 1- or 2-button operation
- Adjustable RGBW status LEDs per button
- Suitable for switching, dimming, blinds, and scenes
- New multi-touch function to send up to 4 values simultaneously
- Logical blocks for advanced control

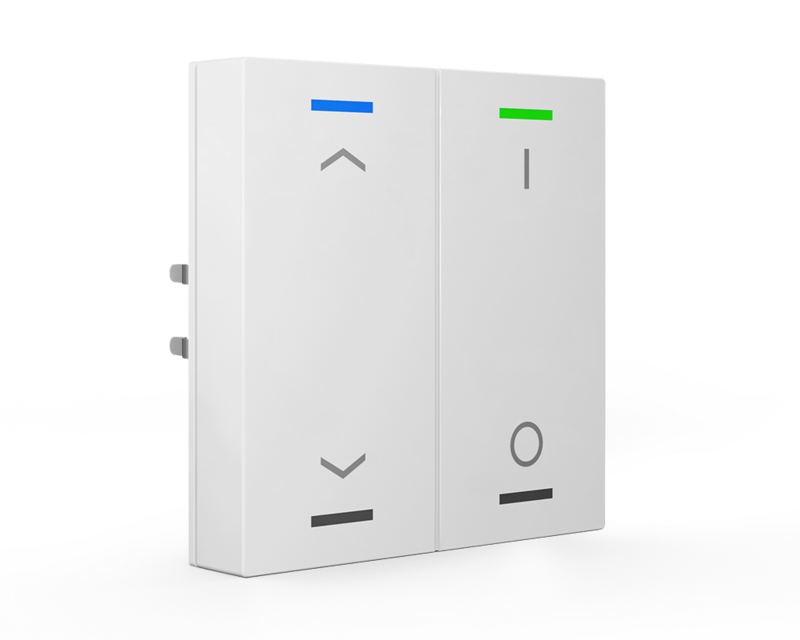

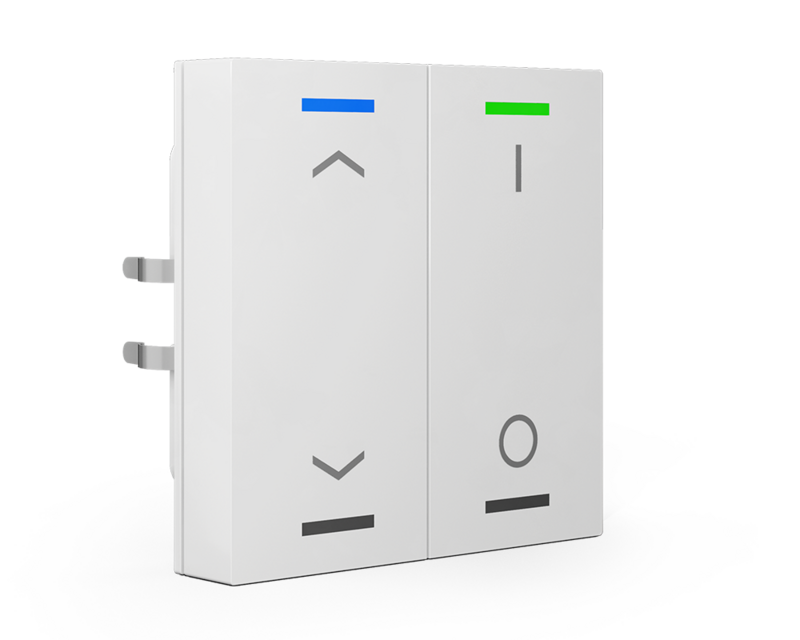

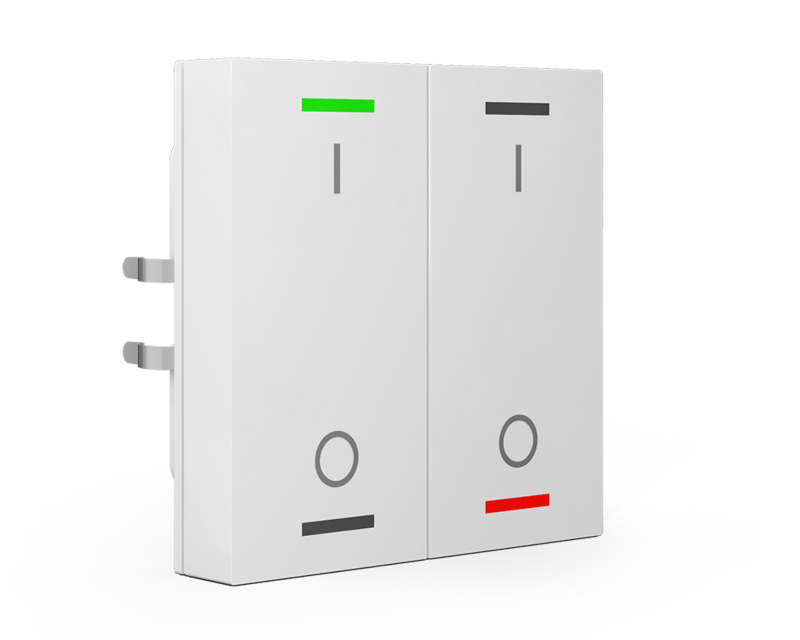

- Available with UP/DOWN, I/O symbols
- Options with integrated temperature sensor
Technical Specifications:
| Dimensions | 55 mm x 55 mm x 25 mm |
|---|---|
| Temperature Range | 0 to +45°C |
| Available Symbols | UP/DOWN, I/O |
| Temperature Sensor | Optional (0 to +40°C) |
| LED Control | RGBW, adjustable brightness (day/night) |
| Power Consumption | KNX bus < 0.5W |
| Available Software | ETS 4/5 |
| Protection Class | IP 20 |
The MDT Tactile Sensor Lite 55 is connected directly to the KNX bus and requires no additional power supply. It is designed for installation in dry rooms and is recommended for residential and commercial buildings. With flexible configuration options and integrated logical functions, this device is ideal for any project.
Available Models and Article Numbers:
- BE-TAL5501.01: Tactile Sensor Lite 55 1-fold, White glossy, Neutral version
- BE-TAL55T1.01: Tactile Sensor Lite 55 1-fold, White glossy, Neutral version, with temperature sensor
- BE-TAL5501.A1: Tactile Sensor Lite 55 1-fold, White glossy, UP/DOWN symbol version
- BE-TAL5501.B1: Tactile Sensor Lite 55 1-fold, White glossy, I/O symbol version
- BE-TAL55T1.B1: Tactile Sensor Lite 55 1-fold, White glossy, I/O symbol version, with temperature sensor
- BE-TAL5502.01: Tactile Sensor Lite 55 2-fold, White glossy, Neutral version
- BE-TAL55T2.01: Tactile Sensor Lite 55 2-fold, White glossy, Neutral version, with temperature sensor
- BE-TAL5502.A1: Tactile Sensor Lite 55 2-fold, White glossy, UP/DOWN symbol version
- BE-TAL5502.B1: Tactile Sensor Lite 55 2-fold, White glossy, I/O symbol version
- BE-TAL55T2.B1: Tactile Sensor Lite 55 2-fold, White glossy, I/O symbol version, with temperature sensor
- BE-TAL5502.C1: Tactile Sensor Lite 55 2-fold, White glossy, UP/DOWN and I/O symbols version
- BE-TAL55T2.C1: Tactile Sensor Lite 55 2-fold, White glossy, UP/DOWN and I/O symbols version, with temperature sensor
- BE-TAL5502.D1: Tactile Sensor Lite 55 2-fold, White glossy, I/O and UP/DOWN symbols version
- BE-TAL55T2.D1: Tactile Sensor Lite 55 2-fold, White glossy, I/O and UP/DOWN symbols version, with temperature sensor
- BE-TAL5504.01: Tactile Sensor Lite 55 4-fold, White glossy, Neutral version
- BE-TAL55T4.01: Tactile Sensor Lite 55 4-fold, White glossy, Neutral version, with temperature sensor
