Push Button Lite 55 Basic 1-fold
€65,28 Incl. tax €100,43 Incl. tax. In stock (6)
Specifications
Information

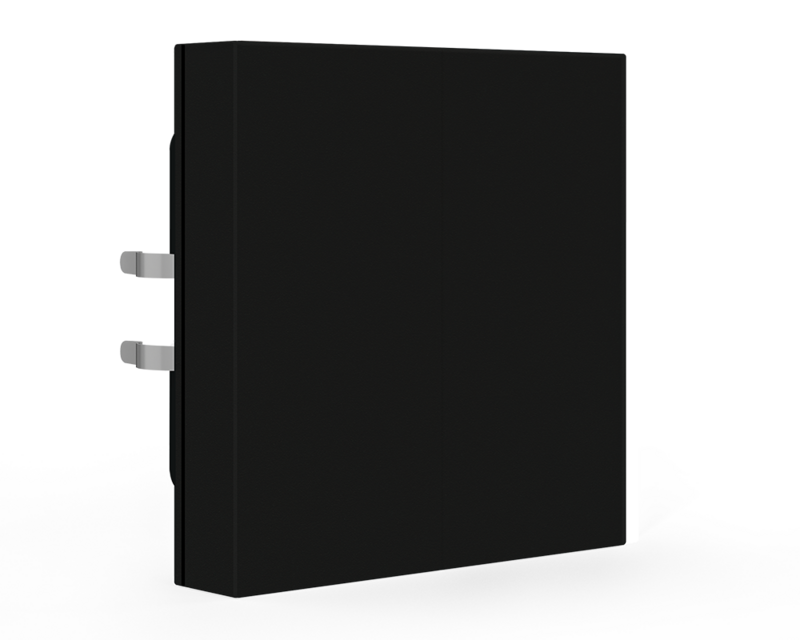

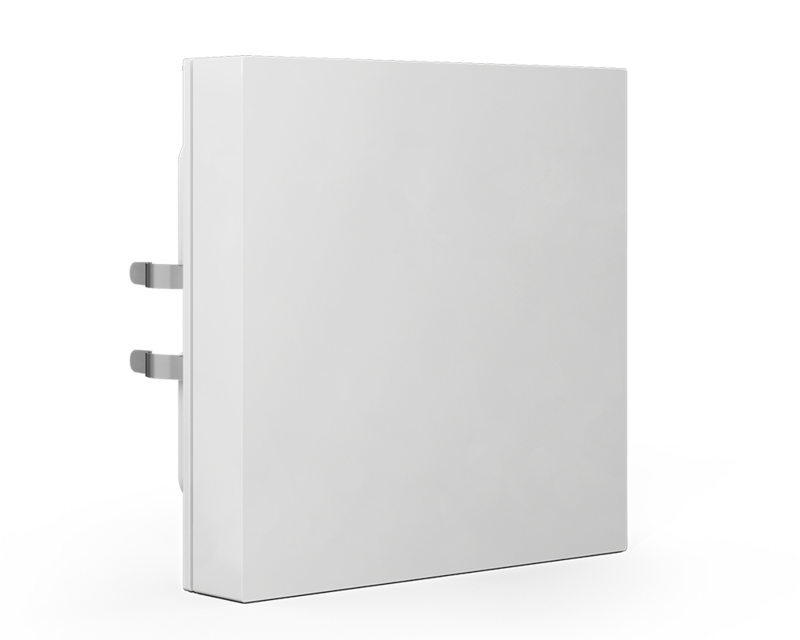

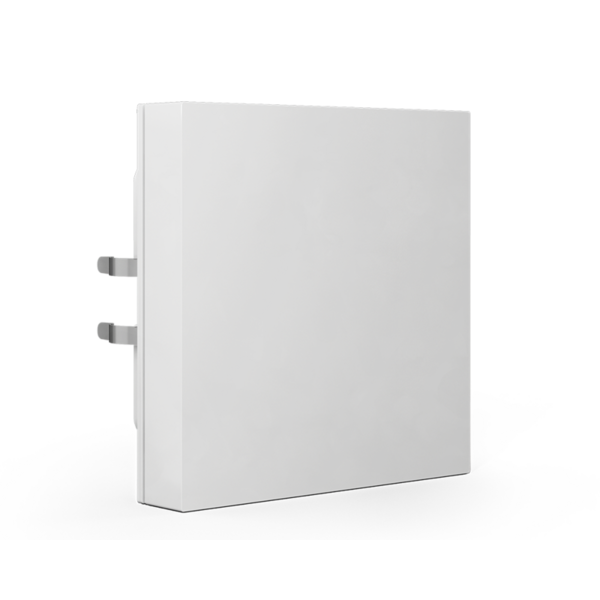

MDT Push-button Lite 55 Basic 1-fold
The MDT Push-button Lite 55 Basic is a versatile KNX button with single operation. This button supports switching, dimming, controlling shutters, calling up scenes, and sending values. Thanks to the innovative multi-touch function, up to 4 values or datapoints can be sent to different objects. The button features 4 integrated logic blocks and a new group control function with long and extra long button presses. The device is designed for flush-mounted fixed installations in dry rooms.
Technical Data
- Dimensions: 55mm x 55mm x 25mm
- Available software: ETS 4/5
- Power supply: KNX Bus
- Power consumption: typically < 0.5W
- Operating temperature: 0 to +45°C
- Protection class: IP 20
- Color: Pure white gloss, Black matt
This product is manufactured in Germany and certified according to ISO 9001, with a 3-year warranty. It is recommended to use the ETS software for project design and commissioning.
