Push Button 55mm 4-fold Flush mounted
€77,08 Incl. tax €118,58 Incl. tax. Out of stock, but available
Specifications
Information
Push-button 55 | series .02

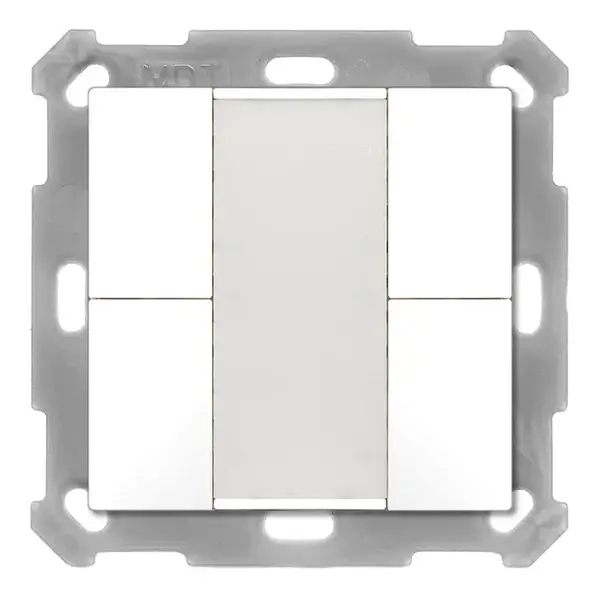

MDT KNX Push-button 4-gang
The MDT Push-button 55 is a clearly arranged 4-gang KNX push-button, available in matte, glossy, or black matte finish. This push-button offers flexible control for KNX systems with functions such as switching, dimming, scene recall, and shutter control.
Technical Specifications
- Number of buttons: 4
- Dimensions (WxHxD): 55 mm x 55 mm x 13 mm
- Available colors: White matt, White glossy, Black matt
- Power supply: KNX bus
- Power consumption: < 0,3 W
- Protection rating: IP20
- Temperature range: 0°C to +45°C
- ETS configuration: Required (ETS5 and above)
- Mounting: Flush-mounted in switch boxes, including mounting ring
Main Features
- Configurable as individual buttons or button pairs
- Supports switching, dimming, shutter control, and scenes
- Innovative group control with long and extra-long keystrokes
- Dual object handling with short/long button actions
- Includes central labeling field with cover foil for individual labeling
This push-button is compatible with 55 mm switch ranges from well-known manufacturers such as GIRA, Berker, Jung, and Merten, as well as MDT glass cover frames. The ETS software is required for push-button configuration.
Available items in this series:
- BE-TA5502.02 (White matt)
- BE-TA5502.G2 (White glossy)
- BE-TA550206.02 (Black matt)
- BE-TA5504.02 (White matt)
- BE-TA5504.G2 (White glossy)
- BE-TA550406.02 (Black matt)
- BE-TA5506.02 (White matt)
- BE-TA5506.G2 (White glossy)
- BE-TA550606.02 (Black matt)
- BE-TA5508.02 (White matt)
- BE-TA5508.G2 (White glossy)
- BE-TA550806.02 (Black matt)
Products are manufactured in Germany and certified according to ISO 9001.
