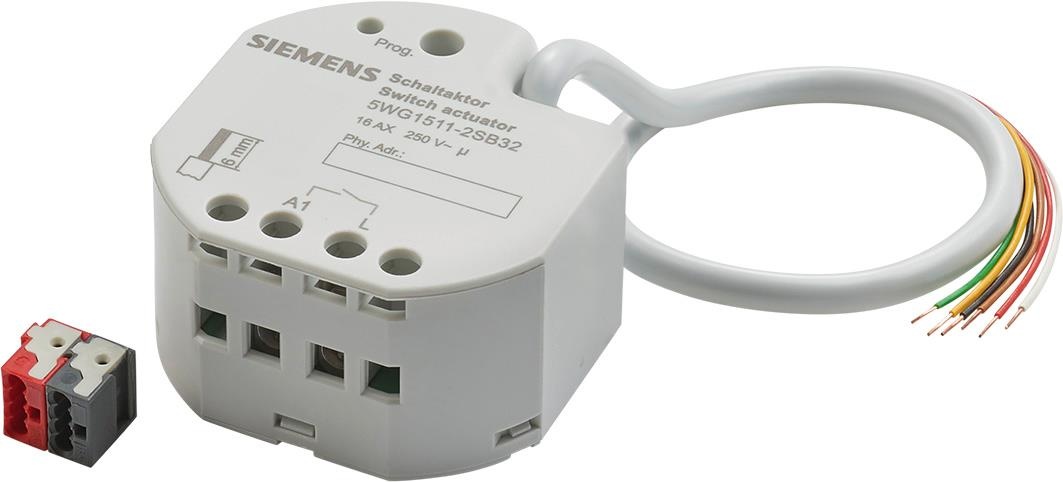

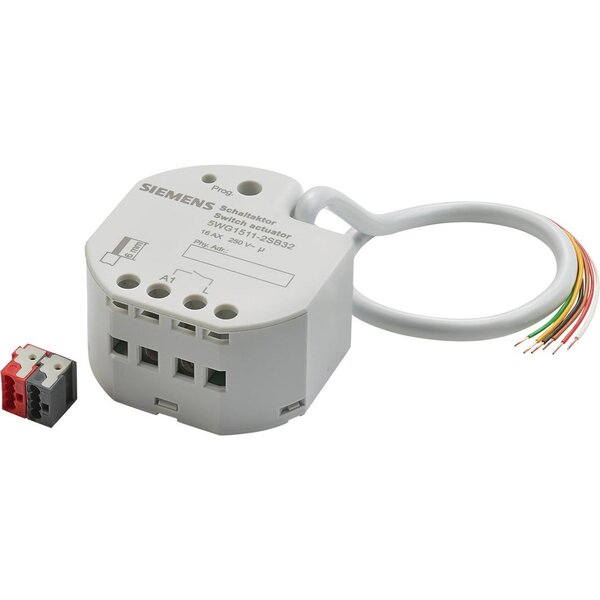

KNX switch actuator flush-mount | 1-fold, 3 bin. inputs flush 511S32
€86,94 Excl. tax
€161,00 Excl. tax
€105,20 Incl. tax €194,81 Incl. tax. Out of stock, but available
€105,20 Incl. tax €194,81 Incl. tax. Out of stock, but available
Switching module with 1 channel (16 A, AC 230 V), 3 binary inputs, advanced switching and logic options, flush-mounted. Supports KNX Data Secure. Read more
Specifications
Brand:
Siemens
Article number:
5WG1511-2SB32
EAN:
4047625017545
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information
KNX Switch Actuator - 1-channel, 3 binary inputs KNX Secure
Description: This switching module provides one channel (16 A, AC 230 V) and 3 binary inputs for building automation with advanced features. The module supports KNX Data Secure and offers flexible configuration options for switching, dimming, and logic.
Technical Specifications
- Switching output: 1 relay contact, AC 230 V, 16 A, suitable for 50/60 Hz.
- Inputs: 3 binary inputs for potential-free contacts with a polling voltage of approx. 5 V.
- Connections: Screw terminals for wires from 0.5 to 4 mm² (solid) or 0.5 to 2.5 mm² (with ferrules).
- Mounting: Suitable for flush-mounted boxes according to DIN 49073 or mounting housing M 592/01.
- KNX compatibility: KNX Data Secure and integrated bus coupling unit.
- Maximum cable length: 10 meters (recommended: J-Y(St)Y).
- Power supply: Electronics powered via KNX bus (no external power supply required).
Additional Features
- Individual configuration for each input: switching, dimming, color temperature control, value transmission (1-6 bytes), and more.
- Logic functions: logic gates, value comparisons, thresholds, and time delays.
- Output functions: status feedback, NO/NC contact configuration, delays, and scene control.
- Special options: stairwell function, central control, and operating hours counter with limit monitoring.
- Upgradeable via Siemens Firmware Download Tool for future functionality.
Additional Specifications
- Temperature range: -5 °C to +45 °C (operating temperature).
- Storage temperature: -25 °C to +70 °C.
- Certificate: Includes a device certificate for secure installation and configuration.
- Dimensions: Suitable for standard flush-mounted boxes and compact installation.
Important Note: For secure and successful installation, it is necessary to keep the device certificate safe after configuration. This certificate is required for KNX Data Secure.
