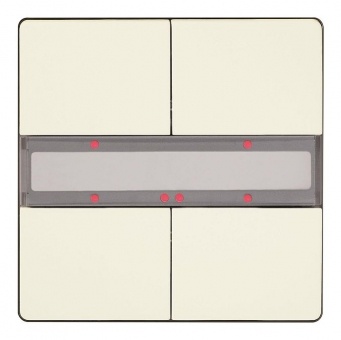

KNX touch sensor DELTA style | 2-fold | titanium white UP 286/13
€81,84 Incl. tax €141,57 Incl. tax. Out of stock, but available
Specifications
Information
UP 286/13 Touch Sensor
The UP 286/13 is a dual-button touch sensor with status LED in titanium white, designed for versatile applications in modern spaces. This sensor offers a stylish and functional solution for controlling lighting, shading, and other electrical devices.
Technical Data
- Type: Touch sensor, dual-button
- Color: Titanium white
- Operation: Vertical operation
- Functions: Selectable functions per sensor
- LED: For orientation in the dark
- Bus Coupling: Connectable to bus coupling unit (BTM) or flush-mounted actuators via BTM
- KNX Bus Voltage: Via bus coupling unit (BTM)
- KNX Bus Current: 8 mA
- Number of Switch Operations: > 20,000 per sensor
- Display Elements:
- 1 red LED for bus voltage control
- 1 LED as orientation light in the dark
- 1 LED per touch sensor for status indication (up to 4 LEDs)
- Installation: Mounted together with the DELTA style design frame onto a bus coupling unit (BTM)
- Compatibility: Supports various KNX functions such as dimming, switching, and scene/effect control
Important Note
The touch sensor supports dual-button dimming with stop telegram and also provides various options for controlling shading (blinds, roller shades) and scene/effect control. The time delay for certain functions can be configured from 100 ms to 655 seconds. Depending on the selected main function, an additional function may be executed after a time delay. This versatile component is ideal for any modern installation.
Specifications
- Bus Transceiver Interface (BTI): For electrical connection between touch sensor and bus coupling unit (BTM)
- Supported KNX Functions:
- Switching (on)
- Switching (off)
- Send percent value
- Send 8-bit value (0…255)
- Send temperature value
- Send brightness value
- Send 16-bit value (0…65535)
- 1-bit scene control (scene 1 and 2: recall/save)
- 8-bit scene/effect control (recall/save)
- Forced on/off control
- Deactivate forced control
