UP 258D61 - KNX Presence Detector WIDE DualTech with temp. measurement
€135,72 Excl. tax
€261,00 Excl. tax
€164,22 Incl. tax €315,81 Incl. tax. Out of stock, but available
€164,22 Incl. tax €315,81 Incl. tax. Out of stock, but available
Ultrasonic presence detector with PIR technology, 360° detection, brightness and temperature sensors. For ceiling mounting. Read more
Specifications
Brand:
Siemens
Article number:
5WG1258-2DB61
EAN:
4047625008055
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Due to the holidays, orders may be delayed and pickup is not possible.
Information

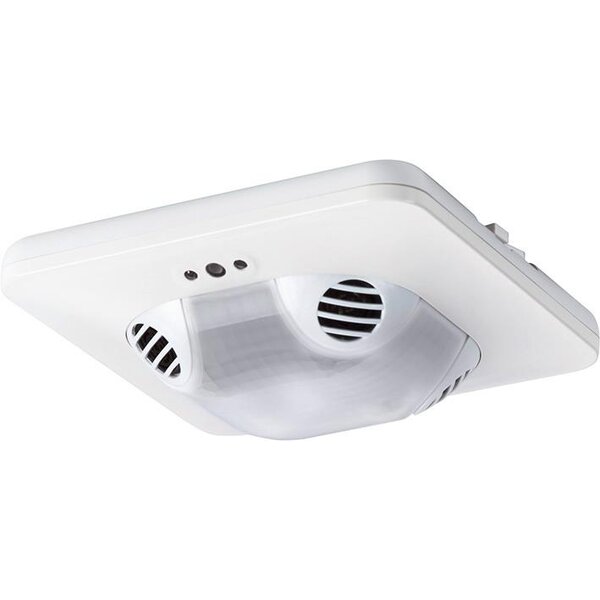

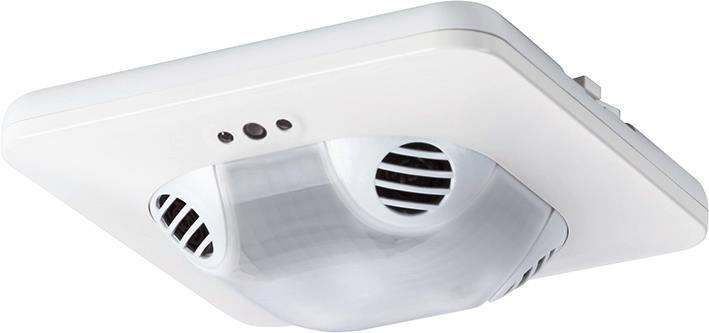

Ultrasonic Presence Detector WIDE with Dual Technology | Art.No.: UP 258D61
The Ultrasonic Presence Detector UP 258D61 combines advanced ultrasonic and PIR technology for reliable detection, even behind objects. Designed for indoor use and ceiling mounting, this device is ideal for offices, conference rooms, and residential spaces. Technical specifications:
Technical Data
- Detection:
- 360° detection angle
- Range: 28 m² (presence) and 79 m² (motion), depending on mounting height
- Sensors:
- Brightness sensor (0-10,000 lux)
- Temperature sensor (-20°C to +60°C)
- Control:
- Integrated IR receiver
- Programming options via IR remote control (6 button pairs)
- Manual programming button on the front
- Bus Coupling: Integrated, bus connection via bus terminal.
- Mounting:
- Flush-mounted installation in standard flush-mounted boxes (Ø 60 mm)
- Optional: Surface-mounted housing or mounting plate for 4x4 boxes
- Lighting Control:
- Constant light control (1 main group, max. 4 additional groups)
- 2-point light control
- Temperature Control:
- Adjustable as 2-point or proportional control (PI control)
- Supports heating and cooling
- Adjustable fan speed
- Dew point alarm via object
- Advanced Features:
- Parallel operation (master/slave or master/master)
- Analog value comparison
- Threshold monitoring for brightness, temperature, humidity, and CO₂
- Min/max calculator for environmental parameters
- Commissioning:
- LED indicator for motion detection
- Easy calibration and correction factors for measurements
- Color: White (similar to RAL 9016)
- Power Supply: Powered via KNX bus voltage
Dimensions: Suitable for standard flush-mounted installation.
Note: This product is designed exclusively for use with KNX configuration and requires professional installation.
