KNX Presence Detector WIDE | with temp.sensor | white | 258D41
€196,56 Excl. tax
€378,00 Excl. tax
€237,84 Incl. tax €457,38 Incl. tax. Out of stock, but available
€237,84 Incl. tax €457,38 Incl. tax. Out of stock, but available
KNX presence detector with PIR sensors, brightness, and temperature measurement. Suitable for ceiling installation. Detection range: up to 64 m² (presence) and 400 m² (motion). Read more
Specifications
Brand:
Siemens
Article number:
5WG1258-2DB41
EAN:
4047625008024
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Due to the holidays, orders may be delayed and pickup is not possible.
Information

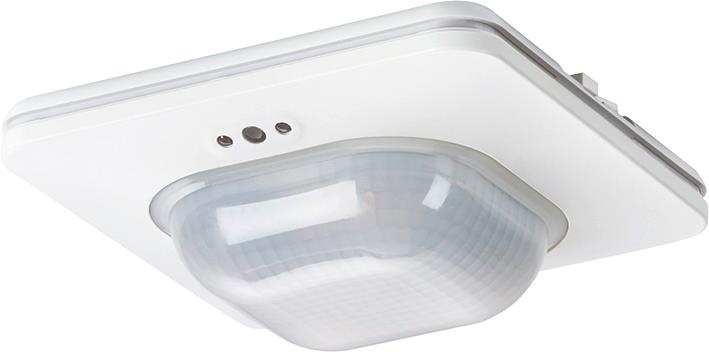

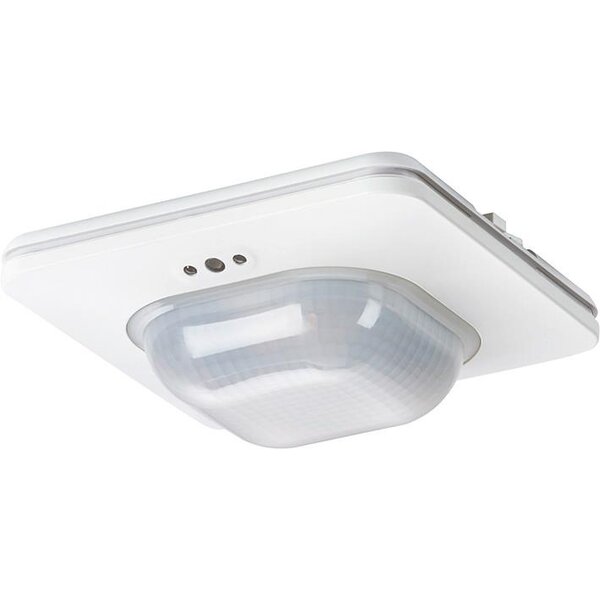

KNX Presence Detector WIDE with Temperature Sensor | Art.nr. 258D41
The KNX Presence Detector WIDE is designed for precise detection and intelligent automation in commercial and residential environments. The device offers extensive functionality for lighting and climate control.
Key Features:
- Sensors: Passive Infrared (PIR), brightness, and temperature.
- Detection Range: Up to 64 m² for presence and 400 m² for motion.
- Mounting Options:
- Ceiling mounting on a flush-mounted box (60 mm diameter).
- Optional: Surface-mounted housing or mounting plate (4x4 boxes).
- Functionality:
- Constant light regulation with automatic calibration.
- 2-point brightness regulation (on/off).
- Temperature management and threshold monitoring.
- Sensitivity adjustment and sectorized detection.
- Programming: Supported by ETS software for flexible configuration.
- Additional Features: Integrated IR receiver for remote control, programmable buttons, and a status LED for easy commissioning.
Technical Data:
- Power Supply: KNX bus voltage DC 24 V (DC 21-30 V).
- Current Consumption: Approx. 12.5 mA.
- Power Loss: Approx. 0.28 W.
- KNX Medium: TP1-256.
- Detection Angle: Horizontal 360°, vertical approx. 150°.
- Brightness Measurement:
- Range: 1-1000 Lux.
- Method: Mixed light measurement.
- Temperature Measurement:
- Range: 0-50 °C.
- Typical Accuracy:
- ±0.6 K at 23 °C.
- ±0.8 K between 5-30 °C.
- Mounting Height: Optimal: 3 meters.
- Protection Class: IP20.
- Material: Plastic.
- Color: Polar white (similar to RAL 9016).
- Operating Temperature: -5 °C to +45 °C.
- Dimensions: See product image for exact specifications.
Certifications and Reliability:
- Conforms to EN 50428 and EN 61000-6-3.
- CE marking and KNX approval.
- MTBF (Mean Time Between Failures): 565 FIT at 40 °C.
Important Note:
This model offers flexible mounting options and easy configuration, making it ideal for lighting and climate control applications.
