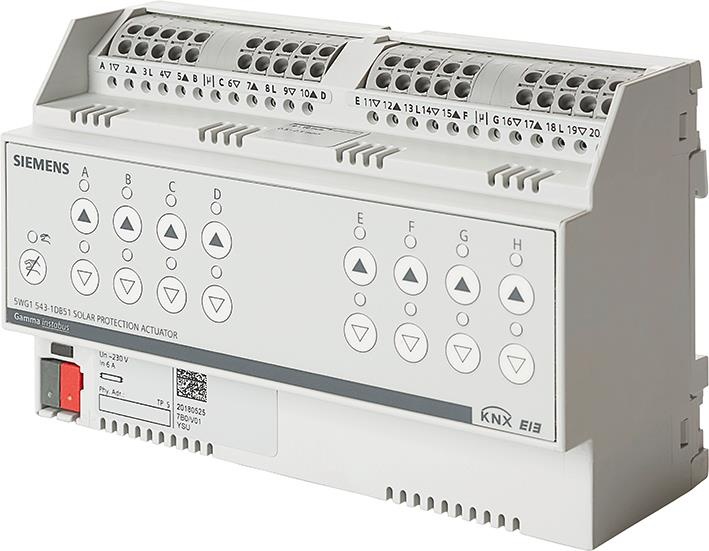

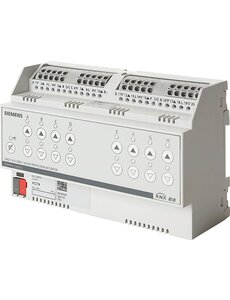

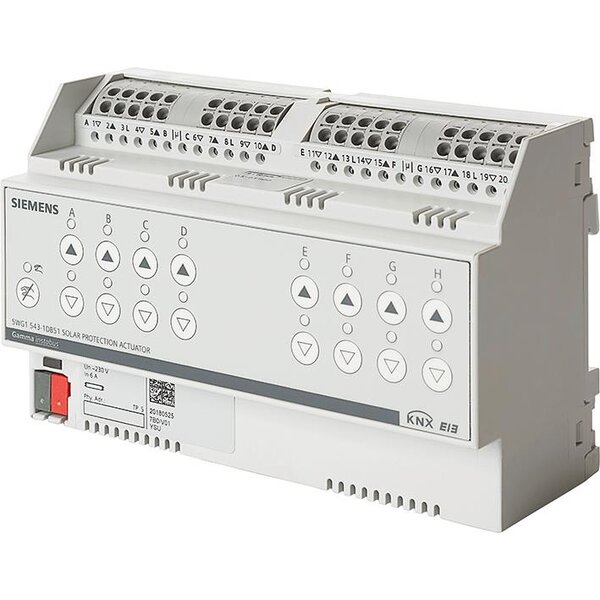

KNX-Blind Actuator 230 V | 8-fold, Run Time Measurement | N543D51
€352,56 Excl. tax
€678,00 Excl. tax
€426,60 Incl. tax €820,38 Incl. tax. Out of stock, but available
€426,60 Incl. tax €820,38 Incl. tax. Out of stock, but available
KNX blind actuator with 8 channels, AC 230 V, 6 A. Supports end-position detection, manual and automatic modes. Ideal for blinds, awnings, and ventilation flaps. Read more
Specifications
Brand:
Siemens
Article number:
5WG1543-1DB51
EAN:
7612914108777
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Due to the holidays, orders may be delayed and pickup is not possible.
Information
KNX Blind Actuator 230 V | 8-fold | Art. no.: 5WG1543-1DB51
The KNX Blind Actuator 543D51 is an advanced device designed for controlling blinds, shutters, awnings, and ventilation flaps. Ideal for integrated building automation systems, this device operates at a nominal voltage of AC 230 V and supports both manual and automatic modes, including end-position detection.
Key Features:
- 8 channels, each with a nominal current of 6 A.
- Relay contacts per channel: 2, electromagnetically interlocked.
- Supports shading control via weather stations with edge tracking.
- No external power supply required; fully powered by KNX bus voltage (DC 21-30 V).
- Manual and automatic modes for local and central control.
- Maintenance-free terminals for cables (0.5 to 2.5 mm², solid or stranded).
- Each L-conductor connection powers two channels.
Technical Specifications:
- Nominal voltage: AC 230 V.
- Nominal current: 6 A (resistive load).
- Minimum switching capacity: 5 V, 10 mA.
- Mechanical lifespan: 50,000,000 switching cycles.
- Electrical lifespan: 100,000 switching cycles.
- Dimensions (W x H x D): 144 x 90 x 60 mm.
- Width: 8 MW (1 MW = 18 mm).
- Maximum switching power: 1380 W per channel (resistive load).
- Maximum DC1 breaking capacity: 30 V, 6 A.
- Maximum power loss: 5.5 W per device, 0.66 W per channel.
- Operating temperature: -5 °C to +45 °C.
- Storage temperature: -20 °C to +70 °C.
- Protection class: IP20.
- Relative humidity: 5% to 95% (non-condensing).
- Mounting: DIN rail TH35 as per DIN EN 60715.
- Housing: Plastic with a fire load of 9 MJ.
Certifications:
- Compliant with IEC 60664-1 and EN 50428.
- Test Marks: KNX, EAC, RCM, WEEE, China-RoHS.
- CE certified.
Important Note: The KNX Blind Actuator requires no neutral wire and uses maintenance-free connections. The device comes with integrated application software for a wide range of applications.
