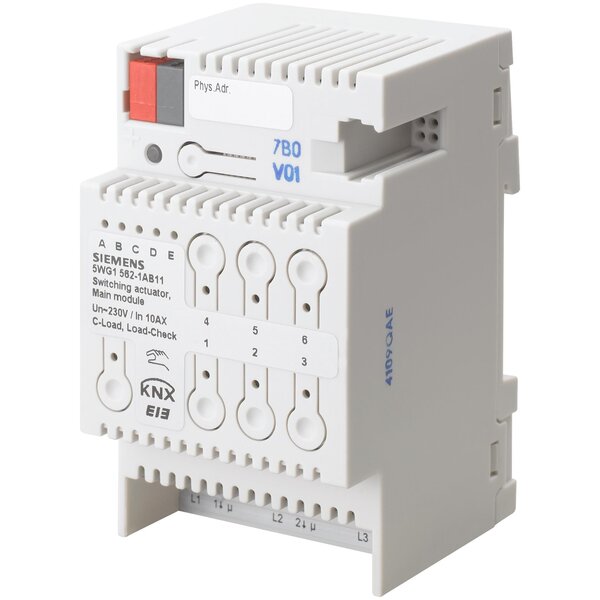

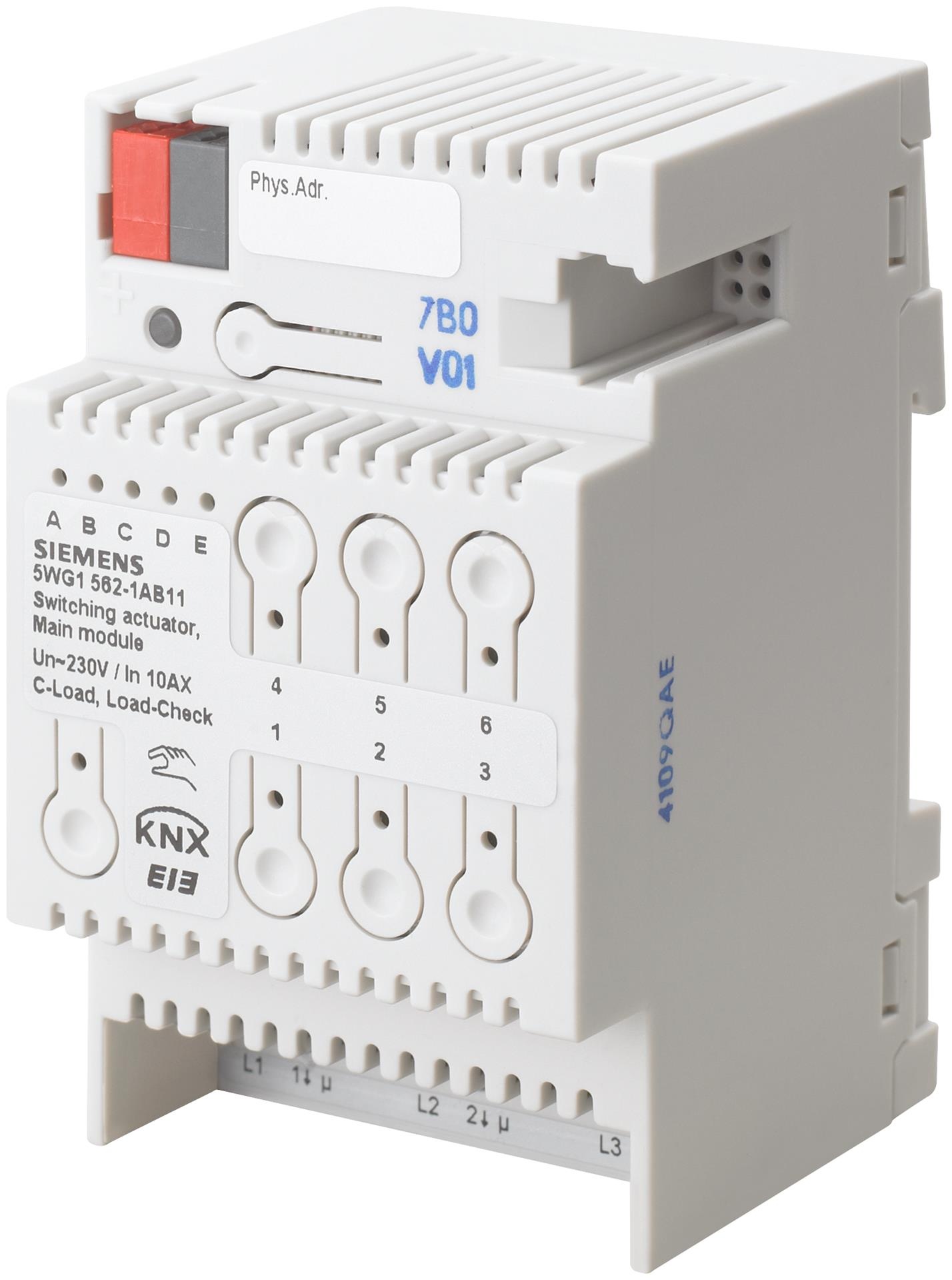

N 562/11 - KNX switch act., main mod., 3x AC 230/400 V, 10 AX, C load

141,44 Excl. tax €272,00 Excl. tax
€171,14 Incl. tax 329,12 Incl. tax.
Out of stock, but available
Unit price: €141,44 / Piece
Flexible KNX switch actuator with 3 outputs, suitable for various loads. Expandable to 15 outputs with extension modules. Supports direct and bus operation. Read more

Specifications

Brand:
Siemens
Article number:
5WG1562-1AB11
EAN:
4001869395944
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Due to the holidays, orders may be delayed and pickup is not possible.

Information

Datasheet

KNX Switch Actuator N 562/11 - Detailed Specifications

The KNX Switch Actuator N 562/11 is an advanced main module designed for controlling electrical loads via the KNX bus. With three independent switching outputs, it offers versatile applications and can be expanded to up to 15 outputs using extension modules.

Key Features

  • Number of outputs: 3 (expandable to 15)
  • Switching current: 10 AX (DIN EN 60669-1), 16 A (AC1)
  • Voltage: AC 230/400 V
  • Operation: Direct and bus operation
  • Modules: Supports up to 4 extensions

Technical Specifications

  • Dimensions: 54 x 90 x 60 mm (3 MW width)
  • Bus current: 7-26 mA (depending on extensions)
  • Relay contacts: Potential-free, mechanical lifespan > 1,000,000 cycles
  • Maximum load: Up to 2,300 W (incandescent lamps)
  • Error detection: LED indicators for diagnostics

Notes

The device offers flexible control options, including night mode and integrated scene management. Note: Correct parameterization is required for full functionality.
