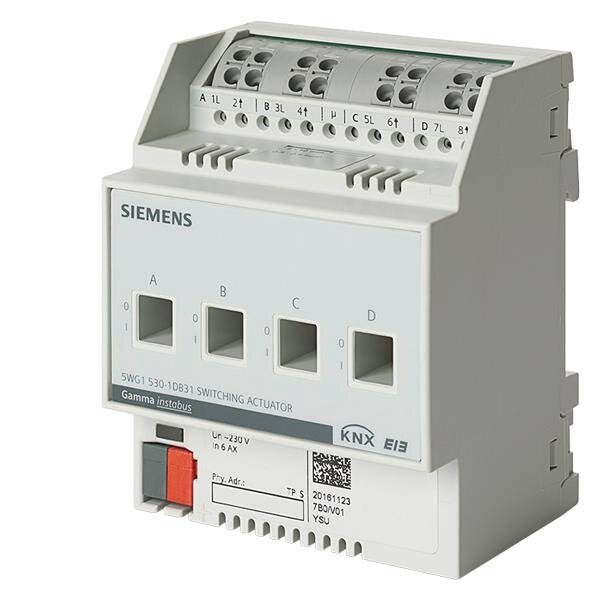

KNX Switching actuator 4 x AC 230 V, 6 AX, C-Load | 530D31
€125,32 Excl. tax
€241,00 Excl. tax
€151,64 Incl. tax €291,61 Incl. tax. Out of stock, but available
€151,64 Incl. tax €291,61 Incl. tax. Out of stock, but available
Four-channel KNX switching actuator, suitable for capacitive, inductive, and resistive loads. Supports logic operations, manual control, and time programs. Read more
Specifications
Brand:
Siemens
Article number:
5WG1530-1DB31
EAN:
7612914108517
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information
KNX Switching Actuator 4 x AC 230 V, 6 AX, C-Load | Article Number: 530D31
The KNX switching actuator is a versatile solution for controlling capacitive, inductive, and resistive loads. The device offers advanced features and enables reliable control of four independent groups of electrical consumers via potential-free outputs.
Key Features:
- 4 independent potential-free outputs (bi-stable relays)
- Suitable for capacitive loads up to 70 µF and fluorescent lamps (6 AX according to DIN EN 60669-2-1)
- Manual operation for testing installation and switching functions
- Time programs and night mode with adjustable on-time
- Advanced logic functions: AND, OR, NAND, NOR, XOR, FILTER, TRIGGER
- Scene control: Configurable up to 8 scenes per output
- Overload and operating hour counter with threshold monitoring
- Configuration via ETS software
- Automatic status message on power recovery
Technical Specifications:
- Power Supply: KNX bus voltage DC 24 V (21...30 V)
- Bus Current Consumption: 20 mA
- Nominal Voltage: AC 230 V, 50/60 Hz
- Nominal Current per Output: 6 AX (capacitive loads)
- Maximum Inrush Current:
- 400 A (t = 150 µs)
- 320 A (t = 250 µs)
- 200 A (t = 600 µs)
- Switching Capacity: 1380 W for resistive loads
- Minimum Load: 12 V / 100 mA
- Operating Temperature: -5°C to +45°C
- Protection Class: IP20
- Mechanical Lifespan: 1,000,000 switching cycles
- Connection Terminals: Maintenance-free terminals, suitable for solid and stranded wires of 0.5 to 2.5 mm²
- Dimensions: DIN-rail mounting (35 mm) according to IEC 60715
- Overheating Protection: Yes
Additional Functions:
- Warning signal before switching off through brief interruption (flash mode)
- Output blocking and forced switching
- Applicable for central switching and group commands
- Support for scenes and logical operations
- Control object for monitoring device status
The KNX switching actuator 530D31 provides a reliable and flexible solution for modern building installations. With its advanced functionalities, maintenance-free terminals, and intuitive configuration via ETS, this device is ideal for a wide range of applications.
