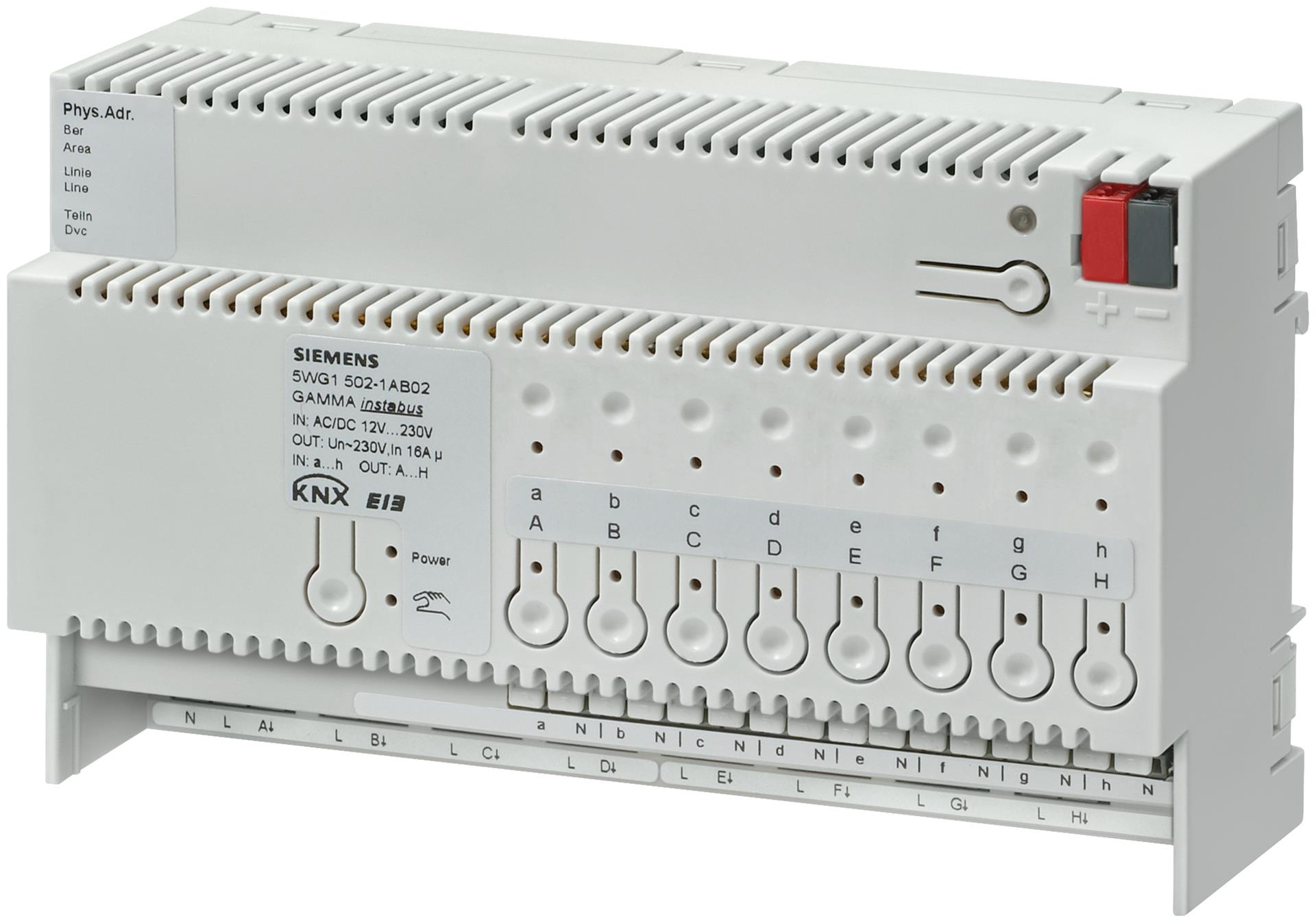

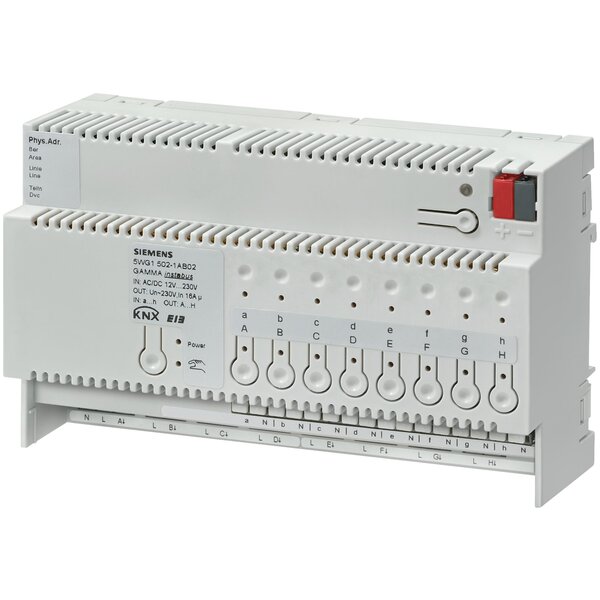

Combi Switching Actuator 8 x AC 230 V, 16 A, 8 x Binary Inp, | N 502/02
€302,64 Excl. tax
€582,00 Excl. tax
€366,19 Incl. tax €704,22 Incl. tax. Out of stock, but available
€366,19 Incl. tax €704,22 Incl. tax. Out of stock, but available
Combined switching actuator with 8 outputs (AC 230 V, 16 A) and 8 binary inputs (AC/DC 12-230 V). Direct or bus-controlled, with extensive configuration options. Read more
Specifications
Brand:
Siemens
Article number:
5WG1502-1AB02
EAN:
4001869421339
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information
Combined Switching Actuator 8 x AC 230 V, 16 A, 8 x Binary Inputs
This switching actuator combines 8 relay outputs (AC 230 V, 16 A) and 8 binary inputs (AC/DC 12-230 V) for direct or bus-controlled operation. Perfect for advanced KNX smart home solutions.
Key Features:
- 8 relay outputs up to 16 A for various loads.
- 8 binary inputs compatible with AC/DC 12-230 V.
- Supports switching, dimming, shading control, and scenes.
- Direct control via front panel buttons.
- Fully configurable via ETS software.
Technical Specifications:
- Power Supply: AC 230 V, integrated power supply unit
- Outputs: 8 relay contacts, 16 A resistive load
- Inputs: 8 binary inputs (AC/DC 12-230 V)
- Operating Temperature: -5 °C to +45 °C
- Protection Class: IP20
- Dimensions: 8 modular units (DIN rail mounting)
Note:
The actuator can be used directly without a bus connection. With extensive configuration options via ETS, this device offers maximum flexibility for smart home solutions.
