KNX combination sensor | Brightness, Temperature AP 254/02
€219,11 Excl. tax
€379,00 Excl. tax
€265,12 Incl. tax €458,59 Incl. tax. Out of stock, but available
€265,12 Incl. tax €458,59 Incl. tax. Out of stock, but available
Combination sensor for brightness and temperature, offers automatic shading and lighting control. Measurement range: temperature -25°C to +55°C, brightness 1-100,000 Lux. IP54, for outdoor mounting. Read more
Specifications
Brand:
Siemens
Article number:
5WG1254-3EY02
EAN:
4001869384726
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information

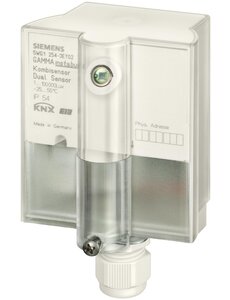

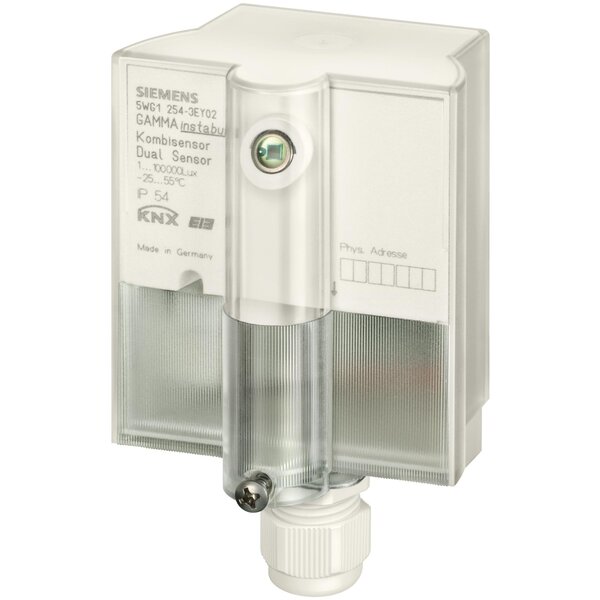

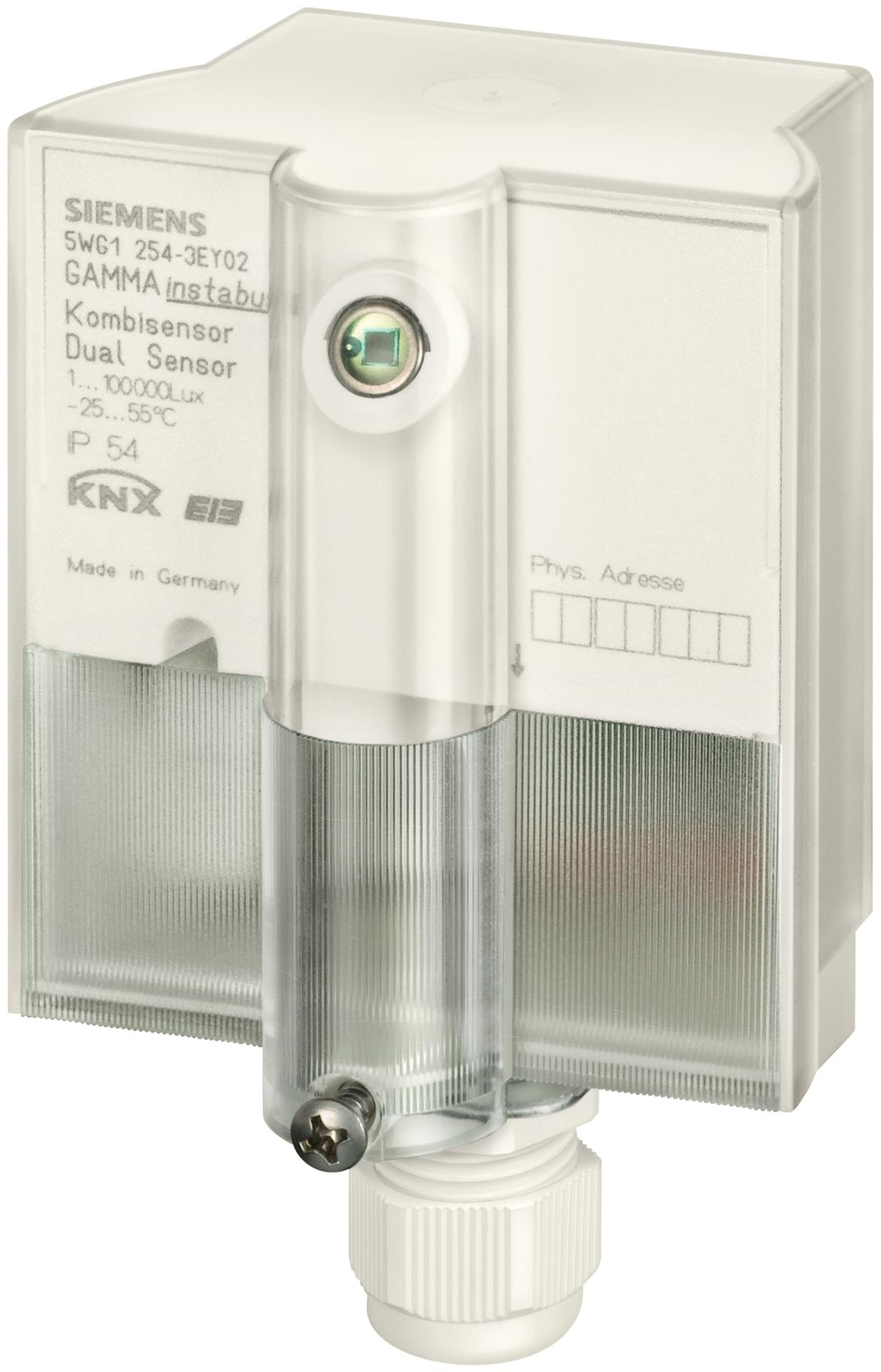

SIEMENS KNX Combination Sensor for Brightness and Temperature
The Siemens KNX combination sensor provides precise brightness and temperature measurements, ideal for outdoor environments. The sensor supports automatic shading and lighting control, enhancing the efficiency of building automation.
Main Features:
- Temperature measurement range: -25°C to +55°C
- Brightness measurement range: 1 Lux to 100,000 Lux
- Protection rating: IP54, suitable for outdoor use
- Detection angle: horizontal -60° to +60°, vertical -35° to +66.5°
- Automatic control of switching, dimming, and shutter actuators based on ambient brightness and/or temperature
- Sun protection channel with automatic control, including start and stop via an object or threshold condition
- Up to three brightness thresholds for determining shutter position
- Universal channels for function adjustment based on ambient temperature and brightness
- Bus-powered, integrated bus coupler
Note: The sensor is powered via the bus connection and supports surface mounting.
