Shutter Push-button Smart 55
€104,00 Excl. tax
€160,00 Excl. tax
€125,84 Incl. tax €193,60 Incl. tax. Out of stock, but available
€125,84 Incl. tax €193,60 Incl. tax. Out of stock, but available
The Shutter Push-button Smart 55 with colour display offers precise control of shutters and blinds. Equipped with an integrated timer, brightness adjustment, and alarm display. Operable via manual buttons and innovative group control. Read more
Specifications
Brand:
MDT
Article number:
BE-JTA5504.01
EAN:
4251916110598
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information

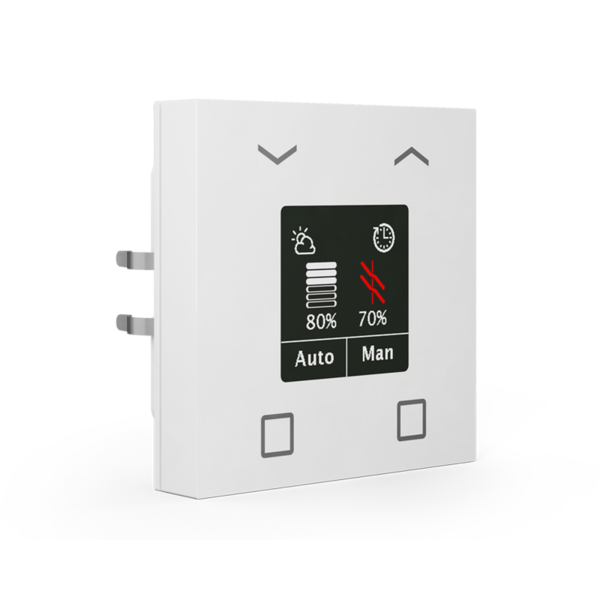

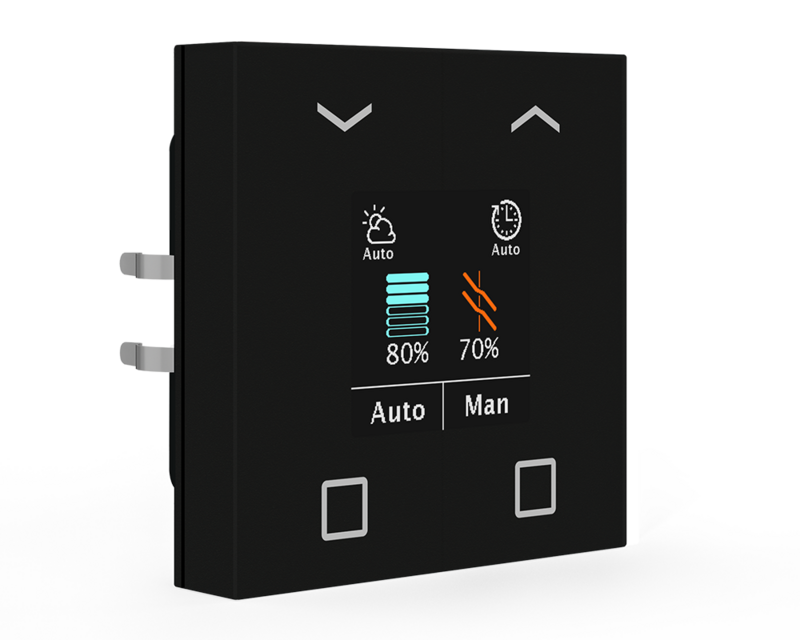

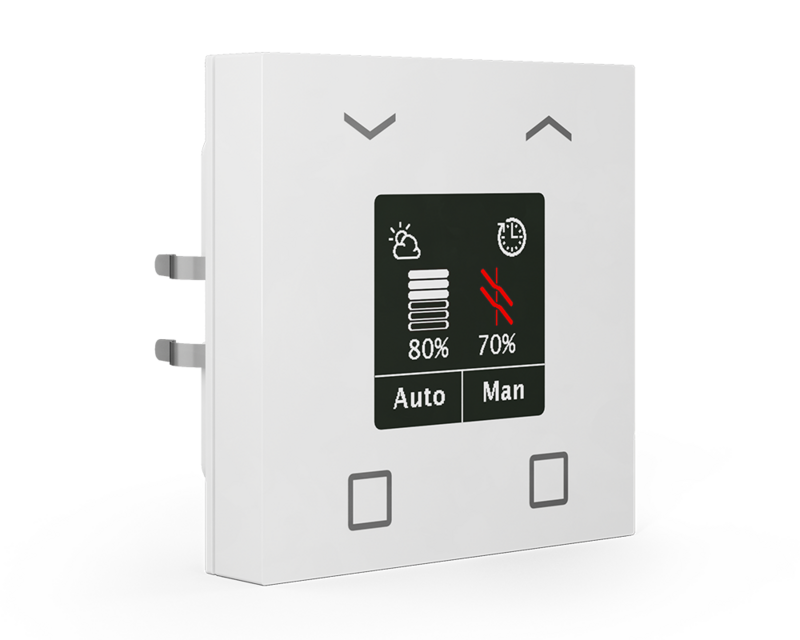

Shutter Push-button Smart 55 with Colour Display
The Shutter Push-button Smart 55 offers advanced control of blinds and shutters, including an active colour display for status and function notifications. The integrated timer provides daily, weekly, and astronomical switching functions, allowing for automatic management of shading systems. The system is equipped with alarm notifications such as wind and frost warnings, clearly displayed on the screen. Display brightness can be adjusted via a day/night object.
Main Features:
- Compatible with 55 mm switch systems
- Active colour display for function and status indication
- Manual control of blinds with up/down buttons
- Innovative group control with long/extra-long button press
- Integrated timer with 8 switching times and power reserve
- Daily, weekly, and astro switching functions
- Automatic holiday calculation
- 8 logic blocks with 4 inputs each
- Integrated bus coupling unit, no additional power supply required
Technical Specifications:
- Number of buttons: 4
- Power: KNX bus, typical < 0.5 W
- Dimensions: 55 x 55 mm
- Installation depth: 12 mm
- IP rating: IP20
- Operating temperature: 0 to +45°C
Installation must be performed in dry indoor spaces. For project design and commissioning, it is recommended to use the ETS software. Download the software via this link.
