MDT - Mini Presence Detector 360°

89,05 Excl. tax €137,00 Excl. tax
€107,75 Incl. tax 165,77 Incl. tax.
Out of stock, but available
Unit price: €89,05 / Piece
Mini presence detector for ceiling mounting, 1 pyro sensor, 360° detection, up to 4 m range, light sensor, bus coupling, suitable for KNX systems. Read more

Specifications

Brand:
MDT
Article number:
SCN-P360D1.01
EAN:
4251916111410
Availability:
Out of stock, but available

Information

Datasheet

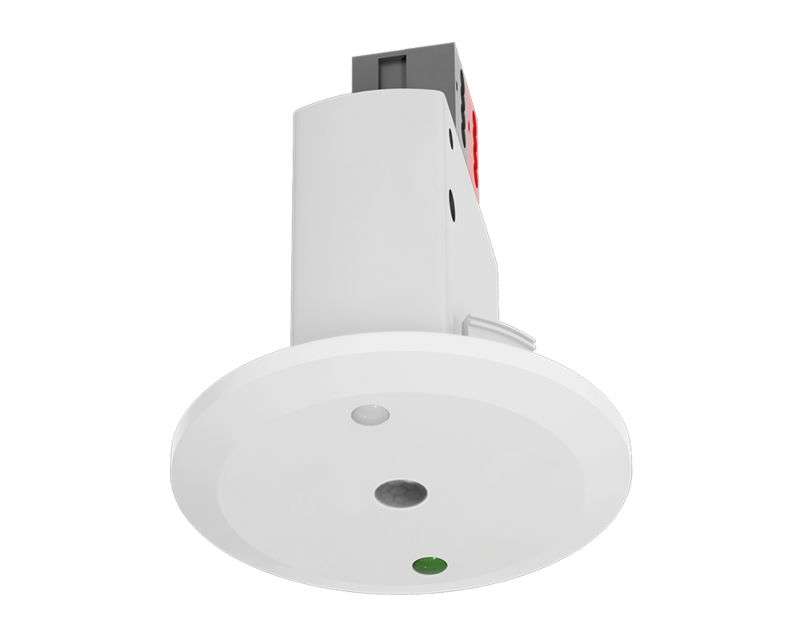

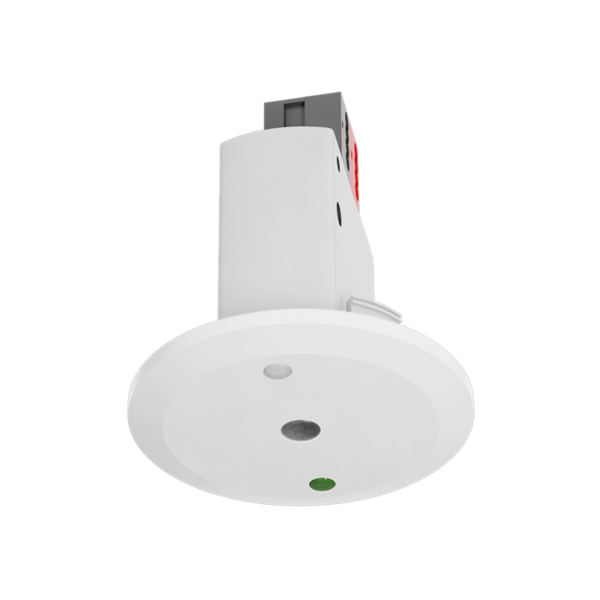

Mini Presence Detector 360°

The MDT Mini Presence Detector features a pyro sensor and a high-resolution lens for precise detection of movement and presence. Designed for ceiling installation in a 35 mm installation box, it has a range of up to 4 meters.

  • Detection angle: 360°
  • Presence range: 3-4 meters (diameter)
  • Light sensor: Yes (5-1000 lux)
  • HVAC control channel: Yes
  • Scene functions and day/night modes
  • Orientation light function for leaving the room
  • Dimensions (WxHxD): 43 mm x 43 mm x 30 mm
  • Power supply: KNX bus (<0.3 W)
  • Operating temperature: 0 to +40°C

The detector offers several configuration options, including adjustable sensitivity, and is compatible with ETS 4/5 software. Made in Germany and certified according to ISO 9001. The detector has a 3-year warranty.
