Line Coupler with KNX DATA Secure
€192,75 Excl. tax
€257,00 Excl. tax
€233,23 Incl. tax €310,97 Incl. tax. In stock (2)
€233,23 Incl. tax €310,97 Incl. tax. In stock (2)
Line Coupler with Data Secure offers electrical isolation, supports extended group addresses, and KNX Data Secure. Easy installation on DIN rails, designed to reduce bus load. Read more
Specifications
Brand:
MDT
Article number:
SCN-LK001.03
EAN:
4251916100087
Availability:
In stock (2)
Delivery time:
Will be shipped within 1 to 2 working days.
Information

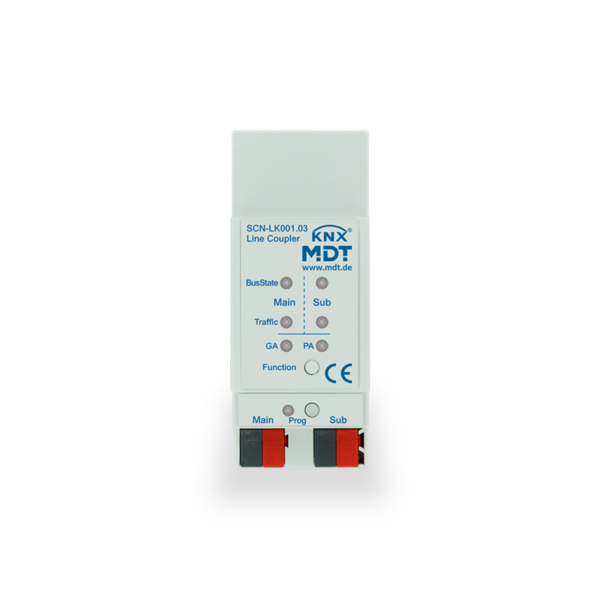

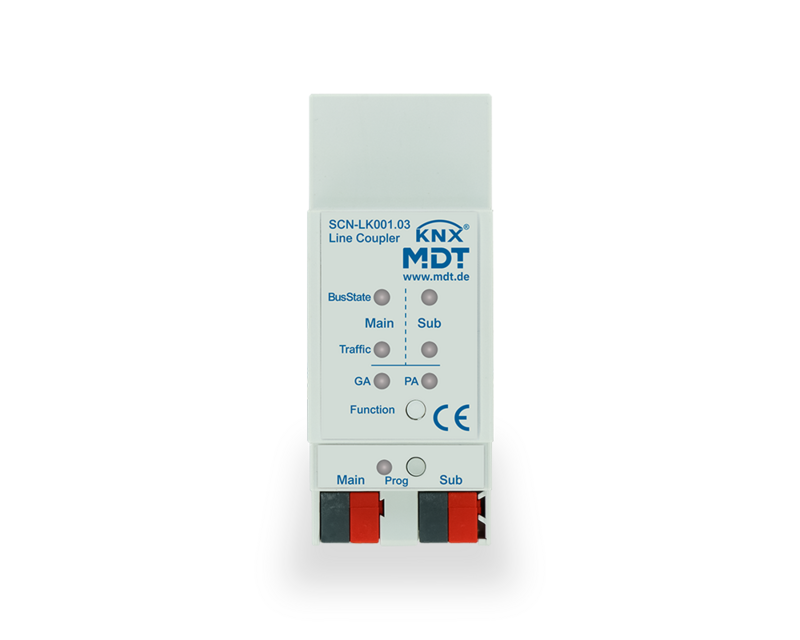

Line Coupler with Data Secure
The Line Coupler with Data Secure is an advanced KNX interface that connects two KNX lines while providing electrical isolation between the lines. This coupler is designed to reduce bus load through advanced filtering functions, enhancing system efficiency. Support for extended group addresses and KNX Data Secure (from ETS 5.7.2) makes this device ideal for modern installations.
Product Features
- Connects two KNX lines
- Electrical isolation between the lines
- Separate power supply required for each line
- Filtering functions to reduce bus load
- Supports extended group addresses
- Supports KNX Data Secure (from ETS 5.7.2)
- Quick application download with long frame support for ETS 5/6
- Modular installation device for DIN 35 mm rails
- Integrated bus coupling unit
- Made in Germany, certified according to ISO 9001
- 3-year warranty
Technical Specifications
- KNX Interface: KNX interface TP-256
- Available application software: ETS 5/6
- Permitted wire gauge:
- Screw terminal --
- KNX bus connection terminal: 0.8 mm Ø, solid core
- Power Supply: KNX bus
- Power consumption: < 0.3 W per line
- Operating temperature range: 0 to +45 °C
- Enclosure: IP 20
- Dimensions: MDRC (Space Units) 2SU
Note: For project design and commissioning of the MDT Line Coupler, it is recommended to use ETS software. Download the application software at www.mdt.de/Downloads.html.
