IP Router with IP Secure and Data Secure
€267,00 Excl. tax
€356,00 Excl. tax
€323,07 Incl. tax €430,76 Incl. tax. In stock (12)
€323,07 Incl. tax €430,76 Incl. tax. In stock (12)
The MDT IP Router enables secure communication between PC and KNX bus via LAN. Supports up to 4 simultaneous connections, KNX IP Secure and Data Secure, and requires no external power supply. Read more
Specifications
Brand:
MDT
Article number:
SCN-IP100.03
EAN:
4251916100117
Availability:
In stock (12)
Delivery time:
Will be shipped within 1 to 2 working days.
Information

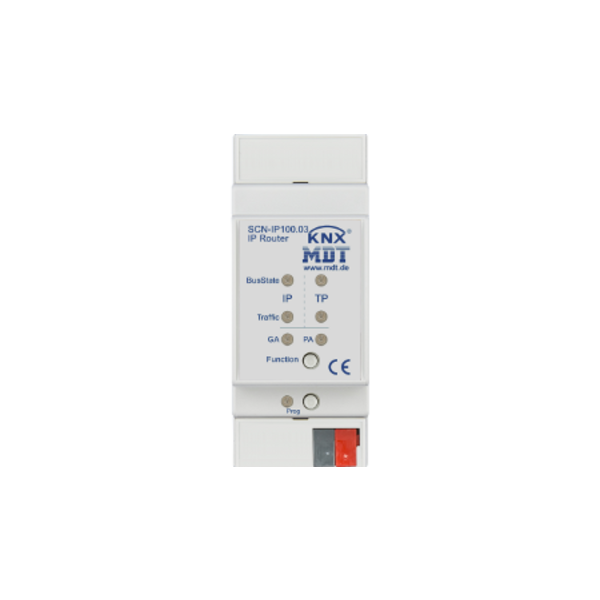

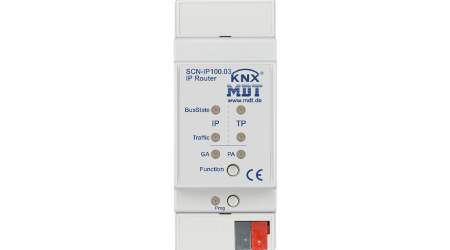

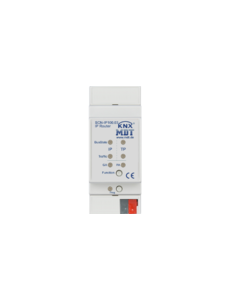

MDT SCN-IP100.03 IP Router with IP Secure and Data Secure
The MDT SCN-IP100.03 IP Router provides a secure and reliable solution for communication between a PC and the KNX bus system via LAN. This router not only functions as an IP interface but also routes telegrams as a line/area coupler. With support for KNX IP Secure and KNX Data Secure, communication is optimally protected. The router accommodates up to 4 simultaneous connections and can program the KNX bus via TCP/IP without requiring an external power supply.
Key Features:
- Secure communication between PC and KNX bus via LAN
- Supports KNX IP Secure and KNX Data Secure
- Up to 4 simultaneous connections
- Firmware can be updated
- Time server function for sending time and date on the KNX bus
- No external power supply needed, powered via KNX bus
Technical Specifications:
- Interface: Ethernet
- Specification: KNX interface TP-256 with long frame support for ETS5
- Available software: ETS 4/5
- Secure functions: Available from ETS 5.72
- Operating temperature range: 0 to +45°C
- Dimensions: 2SU (MDRC)
- Enclosure: IP 20
- Production: Engelskirchen, certified according to ISO 9001
- Warranty: 3 years
