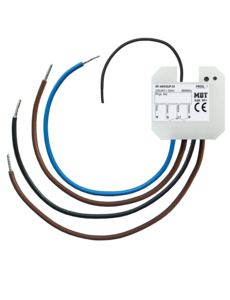

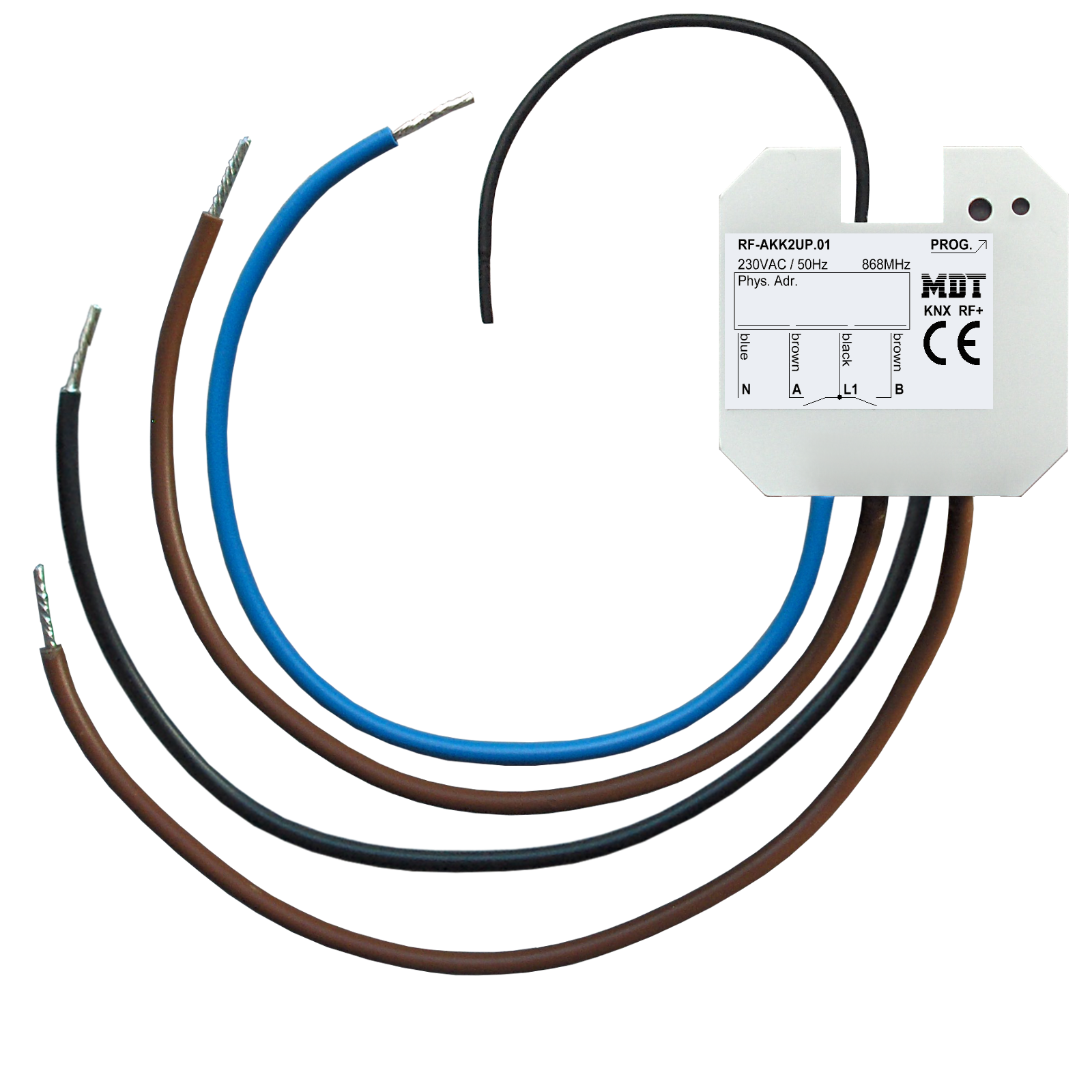

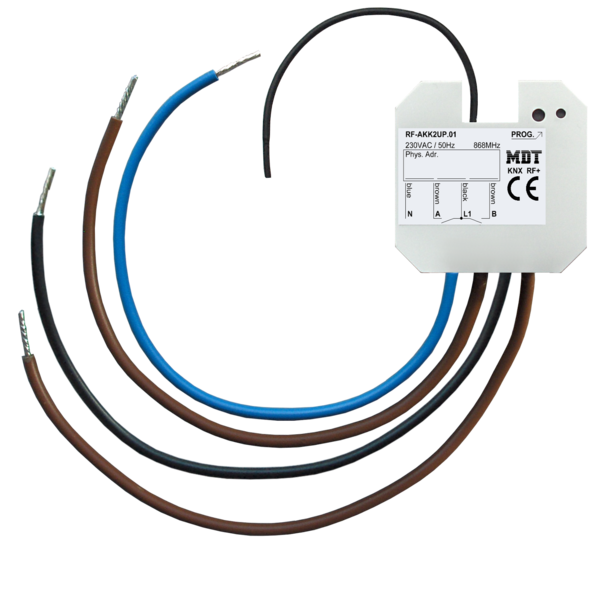

KNX RF+ Switch Actuator 2-fold Flush, 230V, 10A

0 Review(s)

€127,50 Excl. tax €170,00 Excl. tax
€154,28 Incl. tax €205,70 Incl. tax. Out of stock, but available

Unit price: €127,50 / Piece

The KNX RF+ 2-fold switch actuator controls up to 2 independent loads via KNX RF+. With 10A power, time functions, and scenes, ideal for modern installations without KNX wiring. Read more

Specifications

Brand:

MDT

Article number:

RF-AKK2UP.01

EAN:

4251916148522

Availability:

Out of stock, but available

Information

Datasheet

KNX RF+ 2-Fold Switch Actuator (RF-AKK2UP.01)

The MDT KNX RF+ Switch Actuator controls up to two independent electrical loads via KNX RF+ and uses monostable relays, making it ideal for modern installations without KNX wiring.

Key Features:

Control of 2 independent electrical loads.
Operates via KNX RF+ (S-Mode) with ETS5 support.
Monostable relays per output.
Central switching, block functions, and logical operations.
Supports up to 8 scenes per channel.
Switching and time functions (e.g., delays, staircase lighting).
Frequency: 868.3 MHz (EU). Range: 150m.
Maximum load: 10A (resistive), 800W halogen lamps.
Dimensions: 41mm x 41mm x 24mm. Power supply: 230VAC.

The MDT KNX RF+ Switch Actuator integrates seamlessly without KNX wiring, working perfectly in conventional installations. In case of power failure, all outputs are switched off automatically, and when power is restored, the relay states are recovered.
