Push Button Lite 63 1-fold

Information

Push-button Lite 63 1-fold - Technical Specifications

The Push-button Lite 63 1-fold is a versatile KNX push-button available with or without an integrated temperature sensor. It offers comprehensive functionality for switching, dimming, and controlling shutters within KNX systems. Each button is equipped with two RGBW status LEDs, whose brightness can be adjusted via day/night or brightness object. With programmable logic blocks and multitouch functionality, it is possible to trigger various functions such as scenes or value changes.

Product Features:

• Available with or without integrated temperature sensor.
• 1- or 2-button operation for switching, dimming, shutter control, and sending values.
• RGBW status LEDs per button pair, brightness adjustable via day/night or brightness object.
• Multitouch functionality: sends up to 4 values or data points to one or more objects.
• Innovative group control with long/extra-long button press for advanced control of multiple devices.
• Four integrated logic blocks for advanced control functionalities.
• Fully programmable for 1- or 2-button operation.
• KNX telegrams are sent depending on the parameterization.
• Compatible with switch ranges such as Busch-Jaeger future linear, solo, carat, and Busch-axcent.

Technical Specifications:

• Number of buttons: 1/2
• Temperature range: 0 to +45°C
• Temperature sensor: Yes/No (depending on model)
• Power supply: KNX Bus
• Dimensions: 63mm x 63mm x 25mm
• Protection class: IP 20
• Maximum power consumption: < 0.5 W
• Applicable software: ETS 4/5
• Operating temperature range: 0 to +45°C

Important Note:

The Push-button Lite 63 is a flush-mounted device for fixed installations in dry rooms. For project design and commissioning, it is recommended to use the ETS software. The application software can be downloaded from mdt.de/downloads.

Available Article Numbers and Versions:

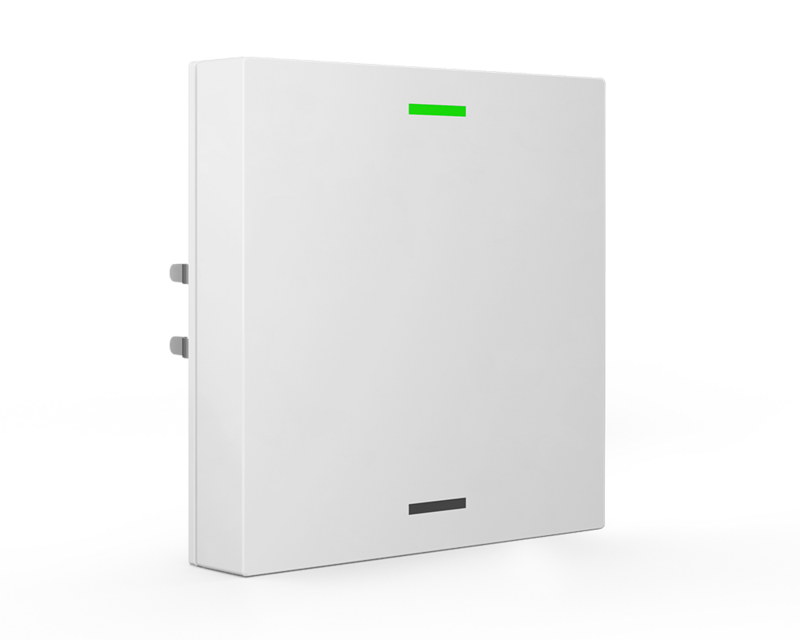

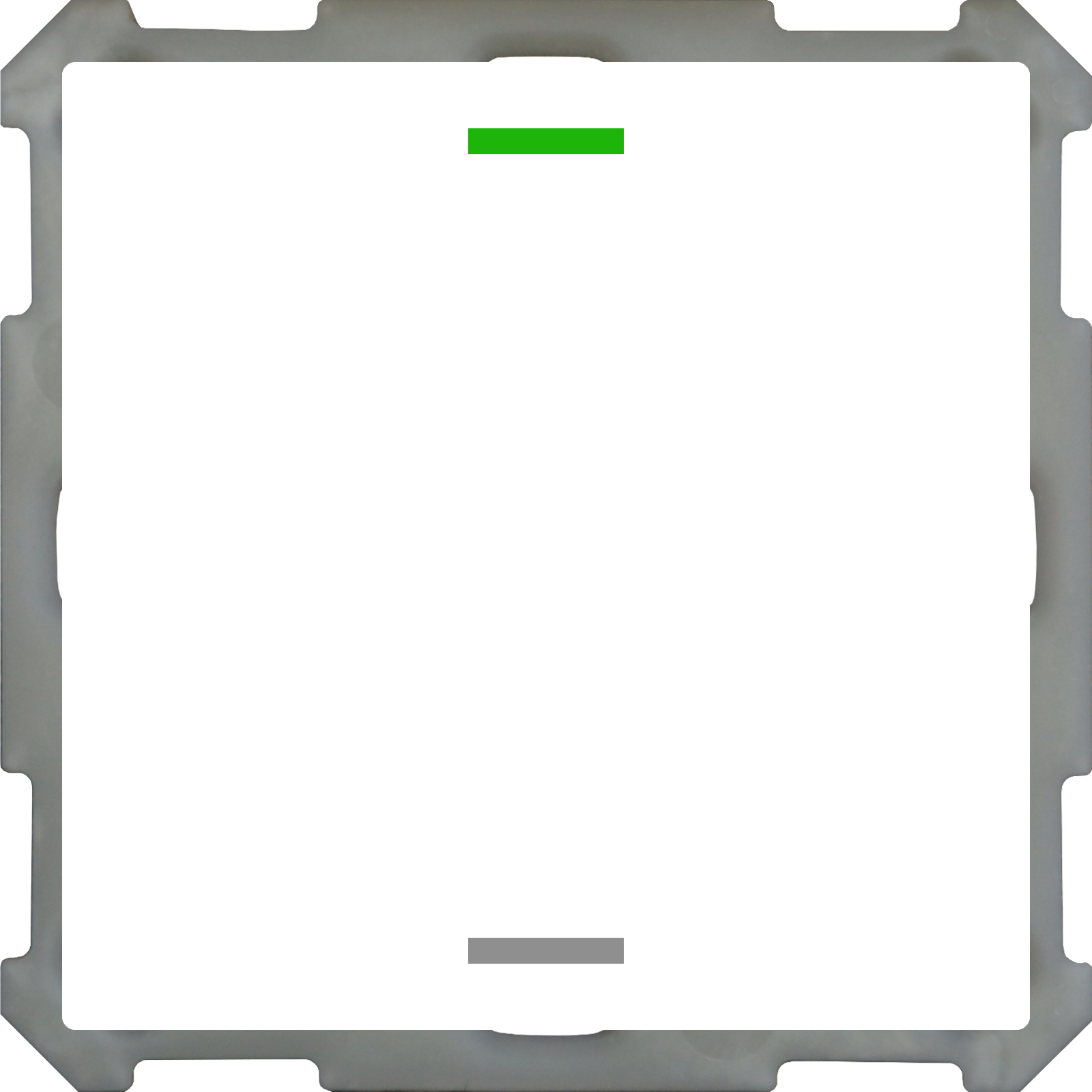

• BE-TAL6301.01 Push Button Lite 63 1-fold, glossy white, neutral version
• BE-TAL63T1.01 Push Button Lite 63 1-fold, glossy white, neutral version, with temperature sensor
• BE-TAL6301.A1 Push Button Lite 63 1-fold, glossy white, with UP/DOWN symbol

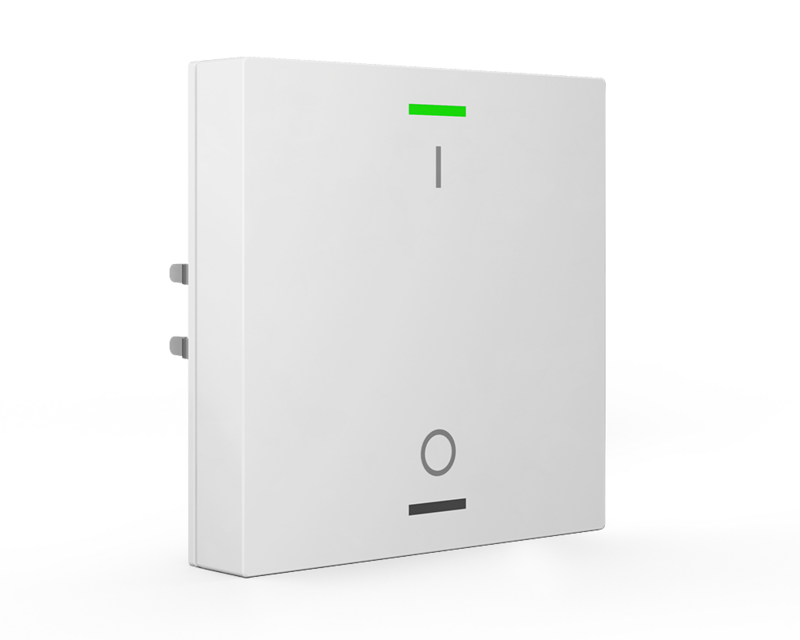

• BE-TAL6301.B1 Push Button Lite 63 1-fold, glossy white, with I/O symbol
• BE-TAL63T1.B1 Push Button Lite 63 1-fold, glossy white, with I/O symbol, with temperature sensor
• BE-TAL6302.01 Push Button Lite 63 2-fold, glossy white, neutral version
• BE-TAL63T2.01 Push Button Lite 63 2-fold, glossy white, neutral version, with temperature sensor
• BE-TAL6302.A1 Push Button Lite 63 2-fold, glossy white, with UP/DOWN symbol
• BE-TAL6302.B1 Push Button Lite 63 2-fold, glossy white, with I/O symbol
• BE-TAL63T2.B1 Push Button Lite 63 2-fold, glossy white, with I/O symbol, with temperature sensor
• BE-TAL6302.C1 Push Button Lite 63 2-fold, glossy white, with UP/DOWN and I/O symbols
• BE-TAL63T2.C1 Push Button Lite 63 2-fold, glossy white, with UP/DOWN and I/O symbols, with temperature sensor
• BE-TAL6302.D1 Push Button Lite 63 2-fold, glossy white, with I/O and UP/DOWN symbols
• BE-TAL63T2.D1 Push Button Lite 63 2-fold, glossy white, with I/O and UP/DOWN symbols, with temperature sensor
• BE-TAL6304.01 Push Button Lite 63 4-fold, glossy white, neutral version
• BE-TAL63T4.01 Push Button Lite 63 4-fold, glossy white, neutral version, with temperature sensor
