Presence Detector | 3 sensors, temperature sensor | white

0 Review(s)

€101,40 Excl. tax €156,00 Excl. tax
€122,69 Incl. tax €188,76 Incl. tax. Out of stock, but available

Unit price: €101,40 / Piece

Presence detector with 3 sensors and temperature sensor, designed for hollow ceiling installation. Detects motion up to 11 m Ø, presence up to 5 m Ø. Features 3 light channels, HVAC, alarm channels, and LED night light. Read more

Specifications

Brand:

MDT

Article number:

SCN-P360L3.03

EAN:

4251916112554

Availability:

Out of stock, but available

Delivery time:

Will be shipped within approximately 8 working days.

Information

Datasheet

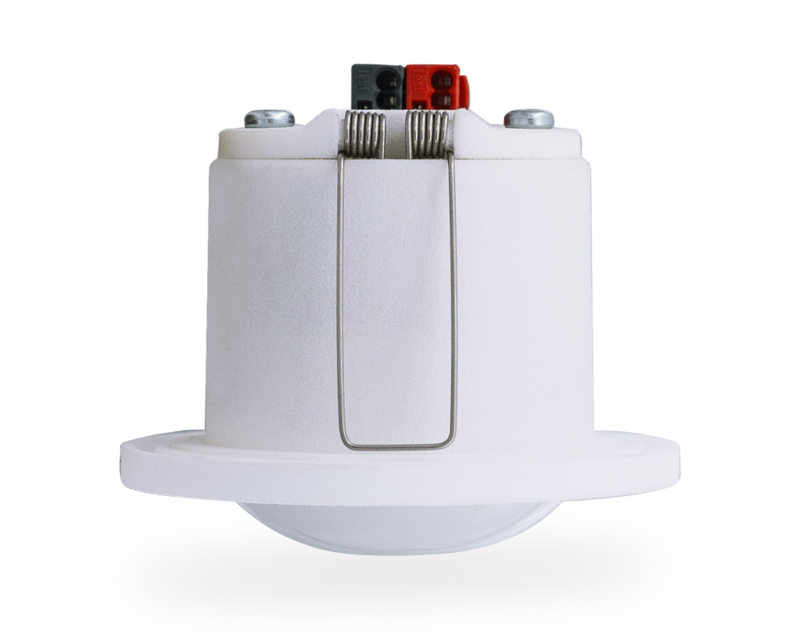

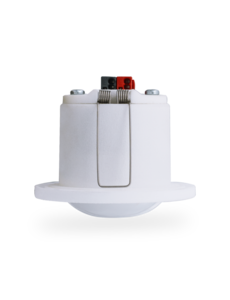

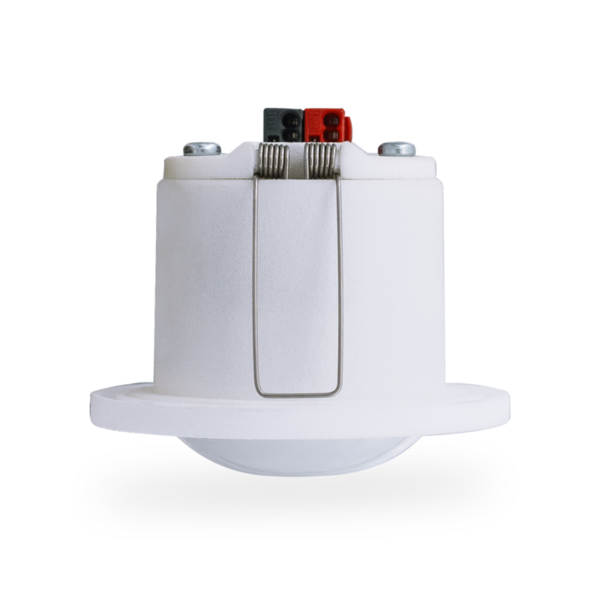

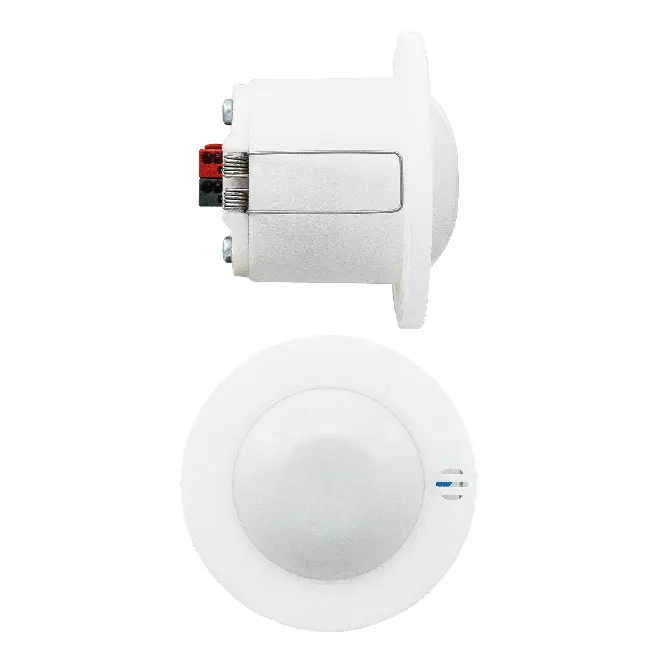

Presence Detector 360° L3 TS with Temperature Sensor

The MDT Presence Detector 360° L3 TS is designed for installation in hollow ceilings. It features three pyro sensors and a high-resolution lens, detecting motion within a diameter of up to 11 meters and presence within a diameter of up to 5 meters. The three light channels can be flexibly assigned to various tasks, such as lighting, HVAC control, and alarm notification. Each channel can be configured independently and has adjustable follow-up times.

The device includes an integrated light sensor that allows independent adjustment of the on/off thresholds for day and night operation. Additionally, the detector offers extensive functionality, such as the integrated temperature sensor, blocking and forced functions, and an orientation light function with a white LED night light for safely exiting the room. The alarm system reduces false alarms by adjusting sensitivity and observation window settings.

The MDT Presence Detector is powered via the KNX bus and can be easily configured using the Engineering Tool Software (ETS). The product database is available at www.mdt.de/downloads.html and in the ETS online catalog. This device comes with a 3-year warranty and is made in Germany.
