Presence Detector D3/D4/K3/K4
€115,62 Incl. tax €177,87 Incl. tax. Out of stock, but available
Specifications
Information

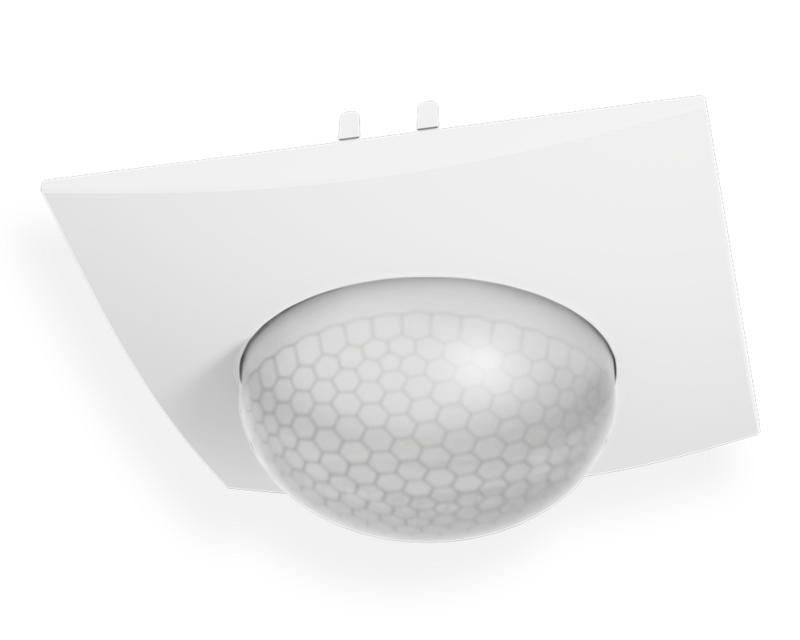

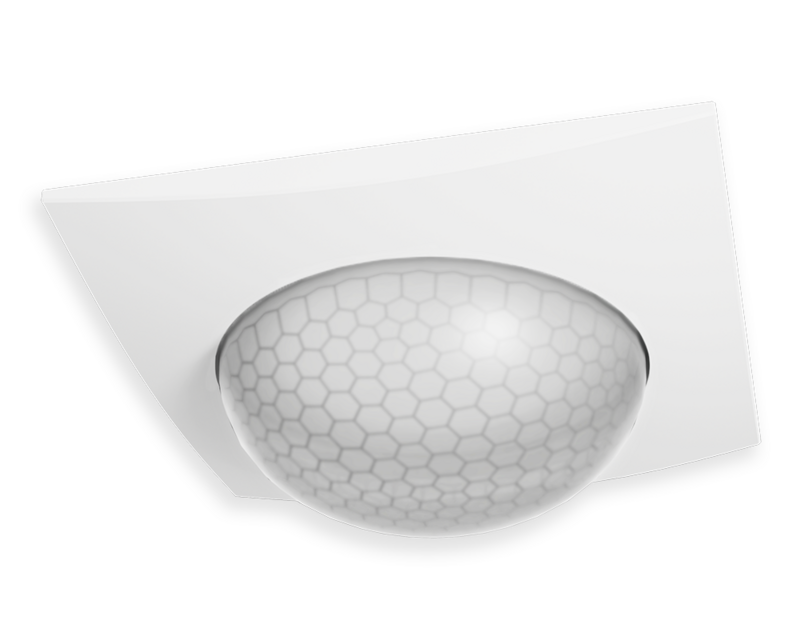

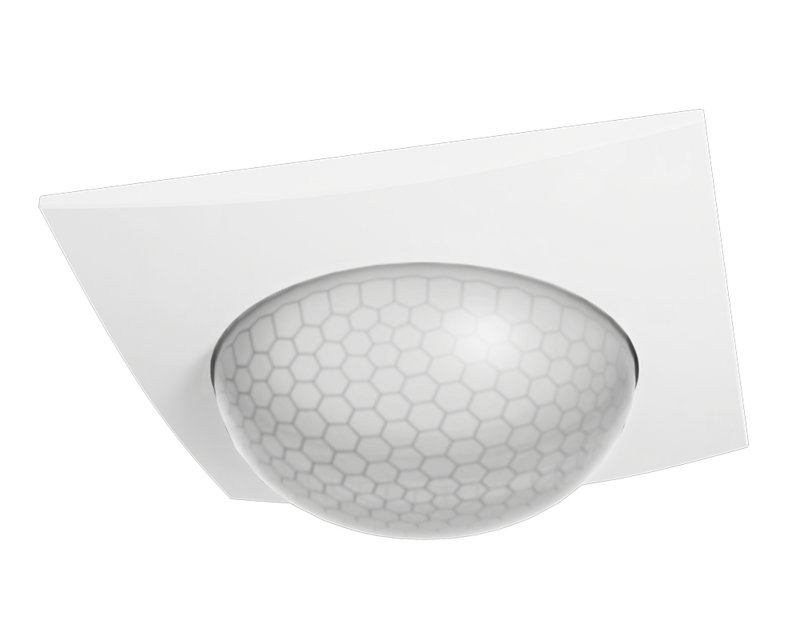

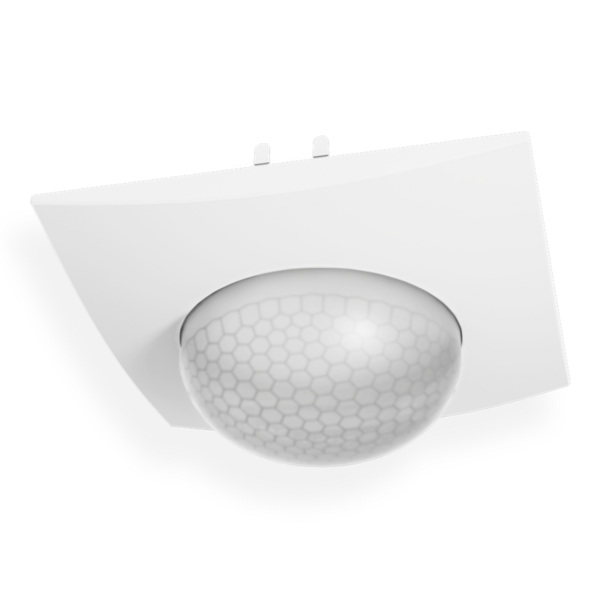

MDT KNX Presence Detectors D3/D4/K3/K4
The MDT KNX Presence Detector offers highly accurate motion and presence detection using 1 to 4 pyro sensors with a high-resolution lens. This detector is available in several versions: as a presence detector with a light sensor or as a presence detector with a light sensor and constant light regulation, making it ideal for smart lighting and HVAC applications.
Main Features
- Available with 1, 3, or 4 pyro sensors for motion and presence detection
- Sensitivity adjustable in 10 steps for day, night, and alarm scenarios
- Motion detection range: up to 16 meters (Ø)
- Presence detection range: up to 8 meters (Ø)
- Constant light regulation available on K3 and K4 models for uniform light intensity
- Supports up to 4 light channels with individual sensor evaluation
- 1 HVAC channel and 1 alarm/notification channel
- White LED nightlight and orientation light function
- Avoidance of false alarms through sensitivity reduction and adjustable observation windows
- Lock and forced guidance function with release time
- Short-term presence detection to reduce follow-up time
- Extensive day and night settings with a second switch object
Technical Specifications
| Model | Motion Detection (Ø) | Presence Detection (Ø) | Sensitivity | Light Sensor Range | Power Supply | Dimensions (W x H x D) |
|---|---|---|---|---|---|---|
| SCN-P360D4.03 | 16 m | 8 m | 10 steps | 5-1000 Lux | KNX bus | 85mm x 85mm x 38mm |
| SCN-P360K4.03 | 16 m | 8 m | 10 steps | 5-1000 Lux | KNX bus | 85mm x 85mm x 38mm |
| SCN-P360D3.03 | 11 m | 5 m | 10 steps | 5-1000 Lux | KNX bus | 75mm x 75mm x 35mm |
| SCN-P360K3.03 | 11 m | 5 m | 10 steps | 5-1000 Lux | KNX bus | 75mm x 75mm x 35mm |
| SCN-P360D1.01 | 5 m | 3-4 m | Fixed sensitivity | 5-1000 Lux | KNX bus | 43mm x 43mm x 30mm |
Accessories
- SCN-P360R3.01 Mounting frame for SCN-P360x3.xx | white
- SCN-P360R306.01 Mounting frame for SCN-P360x3.xx | black matt
- SCN-P360R4.01 Mounting frame for SCN-P360x4.xx | white
- SCN-P360R406.01 Mounting frame for SCN-P360x4.xx | black matt
Available Models
- SCN-P360D3.03 KNX Presence Detector | 3 Sensors | white

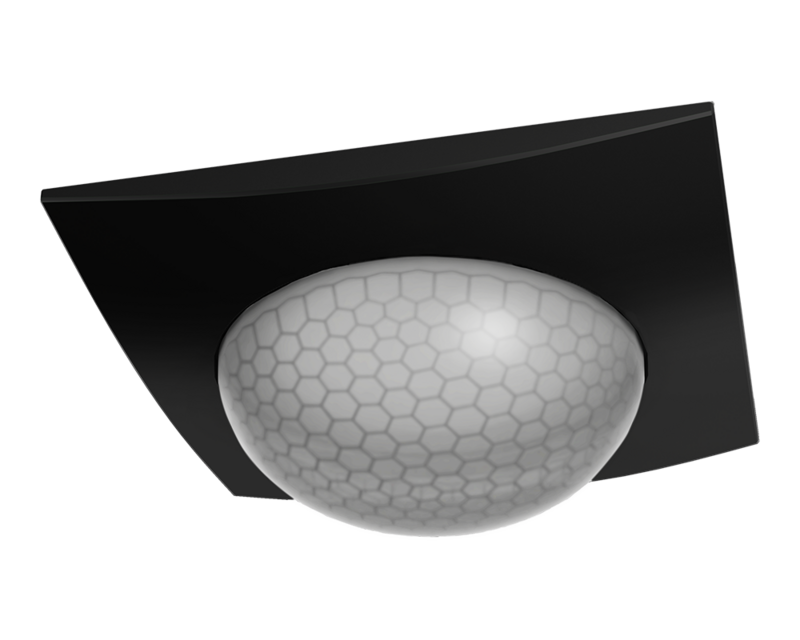

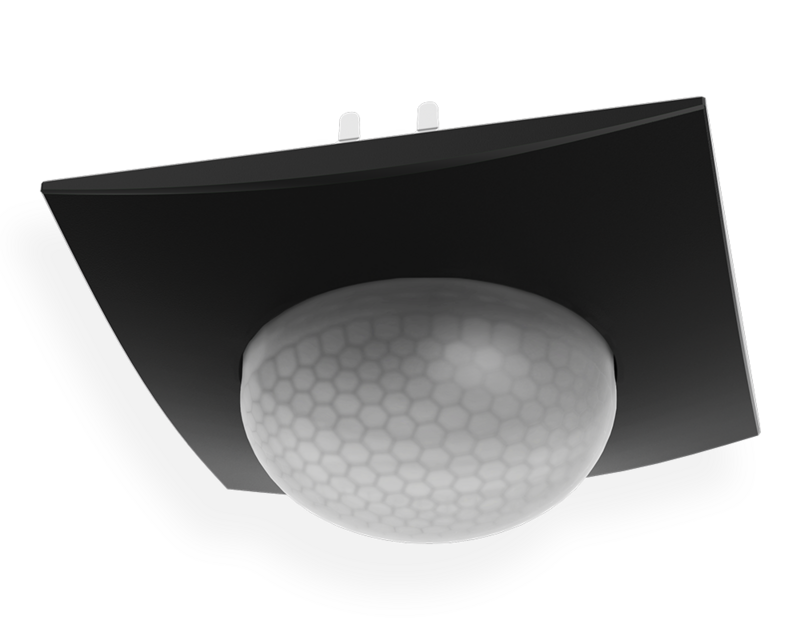

- SCN-P360D306.03 KNX Presence Detector | 3 Sensors | black matt
- SCN-P360K3.03 KNX Presence Detector | 3 Sensors with Constant Light Regulation | white
- SCN-P360K306.03 KNX Presence Detector | 3 Sensors with Constant Light Regulation | black matt
- SCN-P360D4.03 KNX Presence Detector | 4 Sensors | white
- SCN-P360D406.03 KNX Presence Detector | 4 Sensors | black matt
- SCN-P360K4.03 KNX Presence Detector | 4 Sensors with Constant Light Regulation | white
- SCN-P360K406.03 KNX Presence Detector | 4 Sensors with Constant Light Regulation | black matt
Note: The MDT KNX Presence Detector is developed and manufactured in Germany and is ISO 9001 certified. For project design and commissioning, we recommend using the ETS software. Application software can be downloaded from the website.
Related products

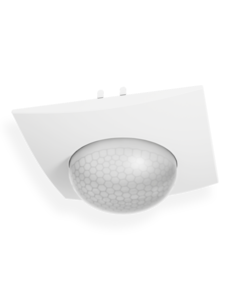

Mounting frame for presence detectors SCN-P360x3 and SCN-P360x4, suitable for surface mounting. Available in white and black matt, for 3- and 4-sensor versions.
