Motion Detector 2.2 m TS 55 KNX Secure
€210,30 Incl. tax €191,18 Incl. tax. Out of stock, but available
Specifications
Information
Datasheet This is a new product, the datasheet will be made available by MDT soon.

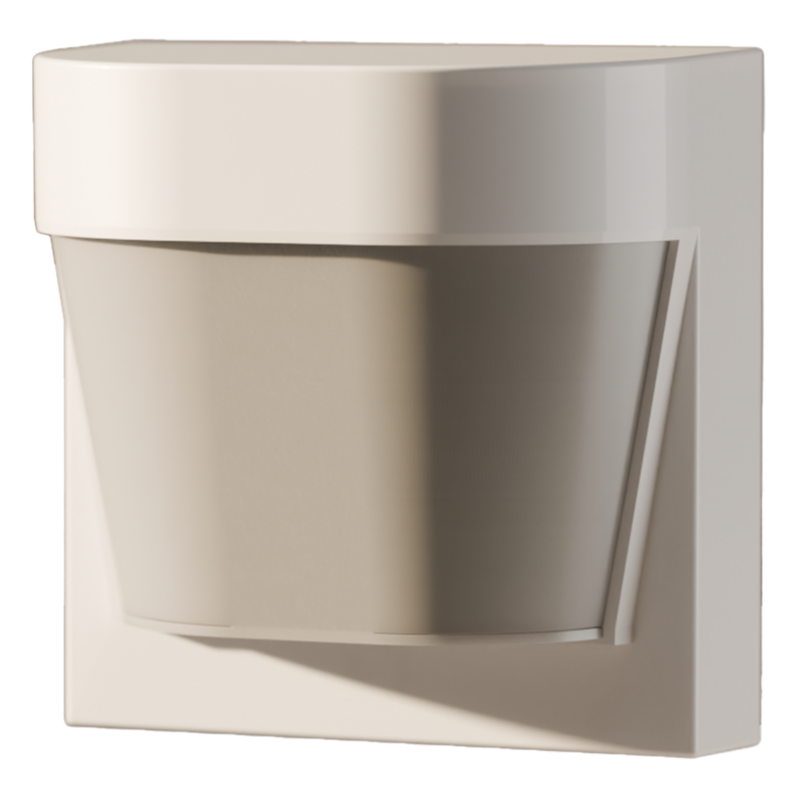

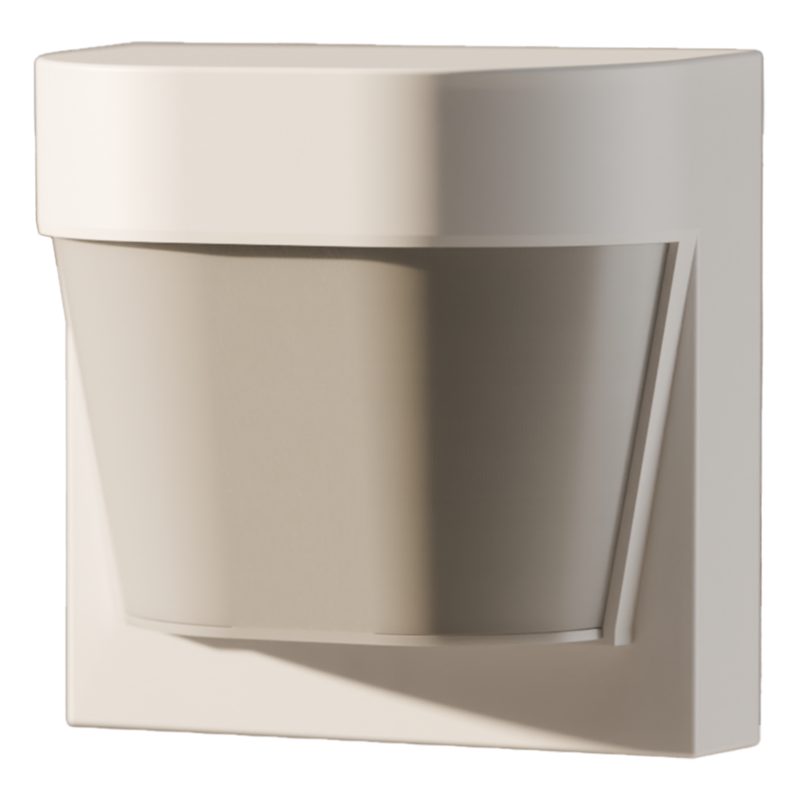

Motion Detector 55 with Temperature Sensor - KNX Secure
The MDT Motion Detector 55 is equipped with two high-precision motion sensors, a brightness sensor, and a temperature sensor. This makes the device ideal for accurately detecting movement, temperature, and light levels in a room. The device supports KNX Secure, ensuring secure communication between all networked devices. The detector is designed for wall mounting at a height of 2.2 meters and is compatible with 55 mm switch systems such as MDT, GIRA, BERKER, JUNG, and MERTEN.
Technical Specifications
- Mounting height: 2.2 meters
- Range: Up to 11 meters
- Number of sensors: 2 motion sensors, brightness sensor, temperature sensor
- Adjustable sensitivity for day/night and presence detection
- Channels: 2 light channels, 1 HVAC and alarm channel
- Short-term presence to reduce follow-up time
- Master/slave function for integration with other KNX devices
- Day/night mode for automatic light control adjustment
- Blocking and forced operation modes with fallback time
- External inputs for manual or automatic control
- Temperature sensor for accurate room temperature measurement
- Bus coupler: Integrated
- Supports KNX Secure communication
- Compatibility: GIRA, BERKER, JUNG, MERTEN (55 mm switch systems)
- Casing: Pure white matt, Pure white gloss, Black matt
Installation Instructions
The recommended mounting height is 2.2 meters for optimal performance. The motion detector should be installed in a flush-mounted box using the included installation frame. Ensure the device is correctly connected to the KNX network to enable full functionality and security through KNX Secure.
Note: This motion detector supports KNX Secure for secure communication and comes with a 3-year product warranty. Ideal for use in combination with other KNX devices for fully integrated home or building control systems.
Available Models:
- MDT PSE-B552T01.02S Motion Detector 55 | with Temperature Sensor, KNX Secure | Pure white matt
- MDT PSE-B552T02.02S Motion Detector 55 | with Temperature Sensor, KNX Secure | Pure white gloss

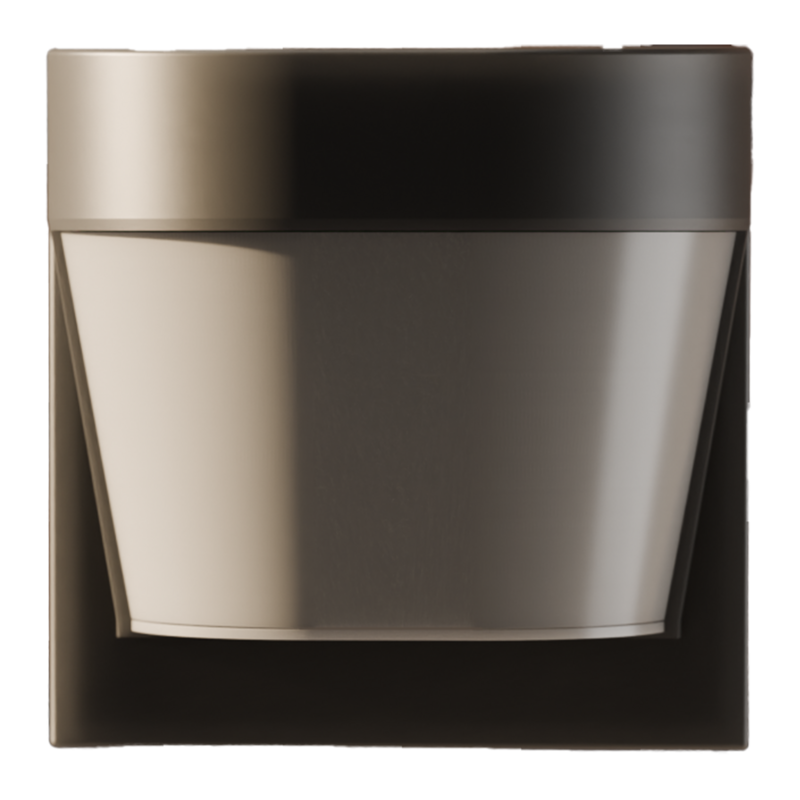

- MDT PSE-B552T06.02S Motion Detector 55 | with Temperature Sensor, KNX Secure | Black matt
