ZENNIO MINiBOX 40 v3 | KNX Universal Actuator 4 Outputs 16 A C-Load, Secure | Part No.: ZIOMN40V3

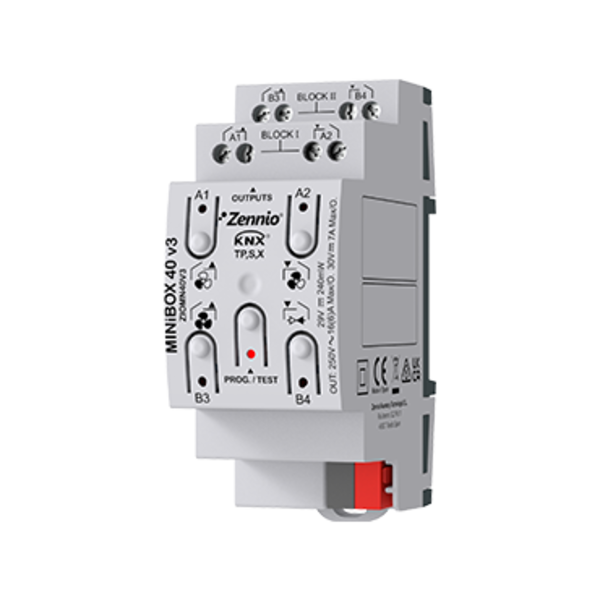

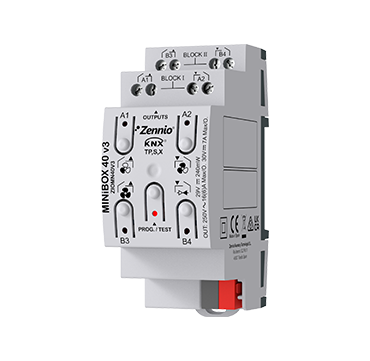

The Zennio MINiBOX 40 v3 is a multifunctional KNX actuator designed for DIN rail mounting. The device features 4 configurable outputs (16 A C-Load) that support various configurations, including shutter channels, individual outputs, or even a 2-pipe fan coil controller. With KNX Secure, the device ensures safe communication and reliable operation in residential and commercial environments.
Main Features
- 4 configurable outputs: shutter channels (up to 2), individual outputs (up to 4), and 2-pipe fan coil control.
- Suitable for capacitive loads up to 140 µF.
- Support for KNX Data Secure for safe communication.
- Manual operation via push buttons and LED status indicators.
- 10 logic functions and flexible output timing.
- Full data saving during KNX bus failure.
- Dimensions: 67 x 90 x 36 mm (2 DIN units).
- DIN rail mounting compliant with IEC 60715.
Technical Specifications
| Power Supply | KNX TP1, 21-31 VDC |
|---|---|
| Power Consumption | 4 mA at 29 VDC |
| Number of Outputs | 4 potential-free outputs |
| Rated Current | 16 A C-Load per output |
| Maximum Load | Resistive: 4000 W, Inductive: 1500 VA |
| Inrush Current | 800 A/200 µs |
| Protection Class | IP20 |
| Operating Temperature | 0 to +55 °C |
Important Notes
- Supports different phase connections on adjacent outputs.
- Compatible with KNX programming via the bus interface.
- No integrated short-circuit or overload protection.
The Zennio MINiBOX 40 v3 offers versatile functionality and is a reliable solution for modern automation needs in residential and commercial buildings.
