640 mA Bus Power Supply +30Vdc 3SU MDRC
Reliable KNX power supply with 640 mA and 30V output. Slim 3TE design for DIN rail installation. Includes choke for bus, extra output without choke, overload and short circuit protection. Read more
Specifications
Brand:
Meanwell
Article number:
KNX-20E-640
EAN:
4711232760018
Availability:
In stock (1)
Delivery time:
Will be shipped within 1 to 2 working days.
Information

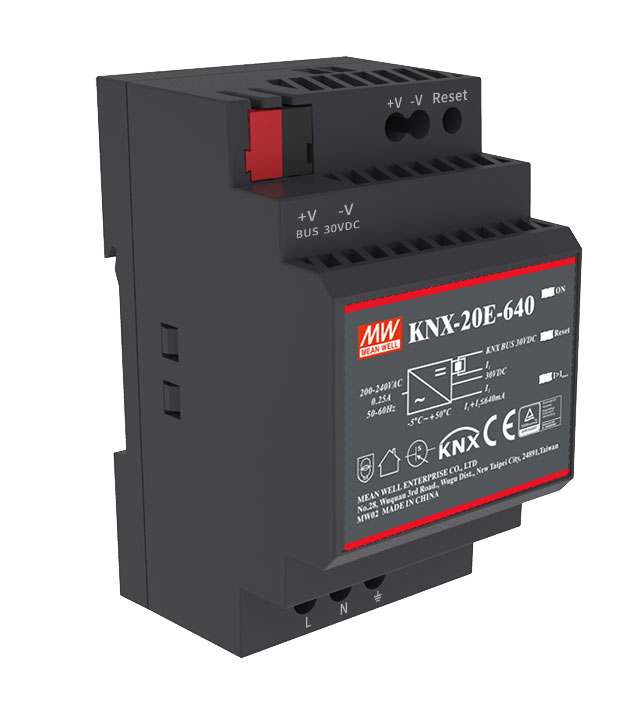

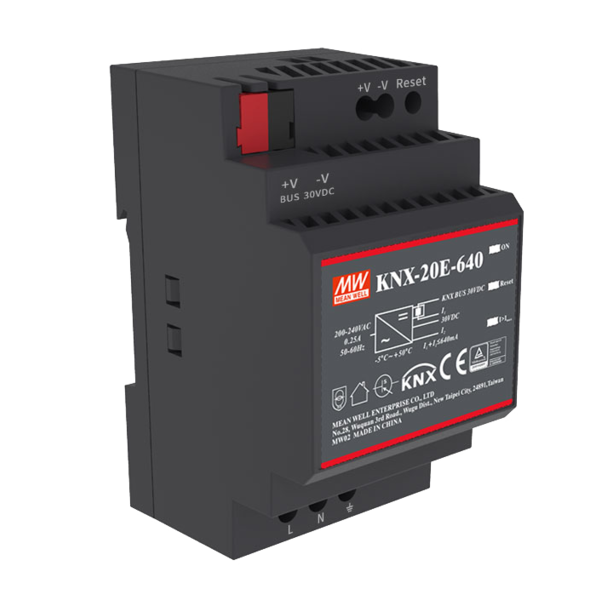

MEANWELL KNX-20E-640 KNX Power Supply for Bus Systems | 640 mA 3TE
The MEANWELL KNX-20E-640 power supply provides reliable 30V power for KNX systems with an integrated choke. Specifically designed for DIN rail installation (TS-35/7.5 or TS-35/15), its compact 3TE design allows for efficient installation in control cabinets.
- Input Voltage: 180-264 VAC
- Output Voltage: 30V DC, 640 mA
- Overload Protection: Yes
- Short Circuit Protection: Yes
- Overvoltage Protection: Yes
- Mounting: DIN rail TS-35/7.5 or 15
- Dimensions: 52.5 x 90 x 54.5 mm
- Weight: 215 g
This closed design includes touch-protected screw terminals for safe installation. With an inrush current of 40A and low power consumption (less than 0.5W on no load), this power supply supports a wide range of applications and meets the highest safety standards.
