MDT Object Server VisuControl Easy II

0 Review(s)

€409,08 Excl. tax €487,00 Excl. tax
€494,99 Incl. tax €589,27 Incl. tax. Out of stock, but available

Unit price: €409,08 / Piece

The Object Server VisuControl Easy II enables visualization and control of KNX functions like lighting, temperature, scenes, and more via a free app. Up to 200 functions, supports VPN, IP cameras, and KNX Secure, easy to configure with ETS. Read more

Specifications

Brand:

MDT

Article number:

VC-EASY.03

EAN:

4251916147648

Availability:

Out of stock, but available

Delivery time:

Will be shipped within approximately 8 working days.

Information

Datasheet

Technical manual

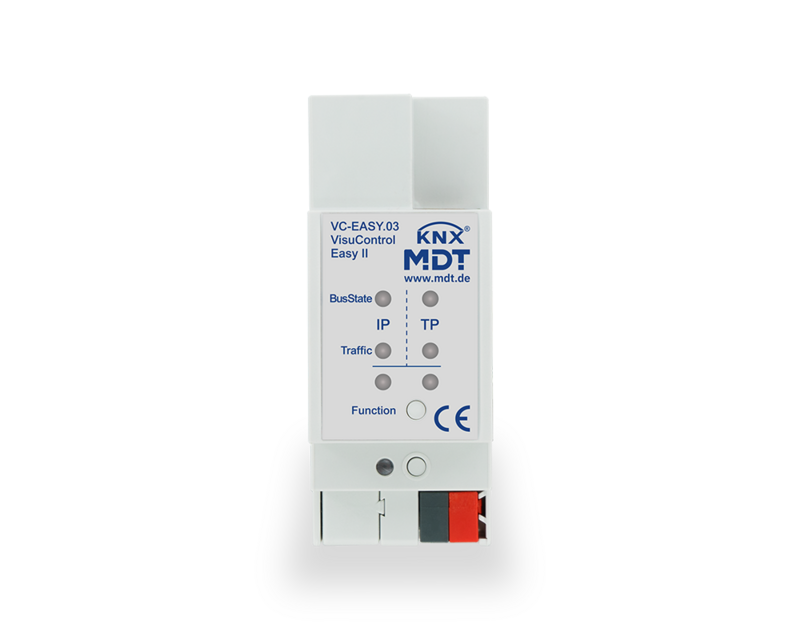

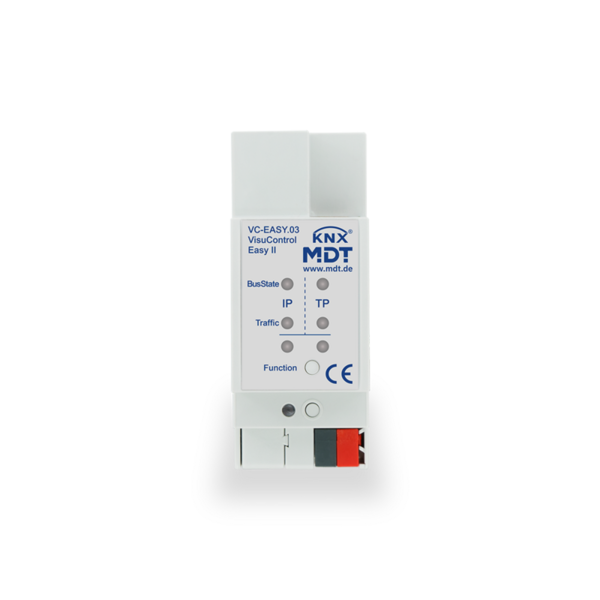

Object Server VisuControl Easy II

The VisuControl Easy II object server offers comprehensive visualization and control of building functions through a free app for Android and iOS. This server enables the visualization of up to 200 functions, including lighting, blinds, temperature control, status displays, scenes, media data, weather data, and more.

Maximum number of functions: 200
Supported devices: Smartphone and tablet (Android/iOS)
IP cameras: Support for up to 4 cameras per server
Interface: KNX Secure, KNX IP Secure, bus programming with ETS
Additional features: VPN support, email notifications, time server, diagrams for data analysis
Power supply: Powered via KNX bus, no external power supply required
Installation: DIN-rail, 2 module units (MDRC)
Protection class: IP20, for installation in dry rooms
User interface: Automatically generated and adjusted, black and white theme options

The VisuControl Easy II app supports up to 20 servers and offers a flexible and user-friendly interface. With KNX Secure, communication between the server and mobile devices is secure. Installation and configuration are straightforward via ETS5 or ETS6 without additional software. The product database is available through the MDT website.

Technical Specifications

Interface: KNX / Ethernet
Maximum number of functions: 200
Maximum number of IP cameras: 4 per object server
Supported servers in the app: 20
Bus programming / IP interface: 4 simultaneous connections
Diagrams: Up to 8
Power supply: KNX bus, < 0.8 W consumption
Temperature range: 0 ... +45 °C
Protection rating: IP20
Dimensions: MDRC (2SU)

Important Note: This device is designed for use in dry rooms and must be installed on a DIN rail in a distribution board. Configuration is done via ETS without additional software.
