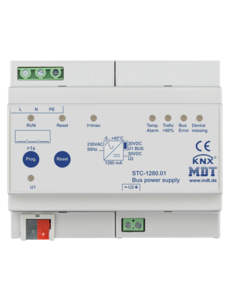

MDT 1280mA Diagnostic Power Supply with Additional 30V DC Output
The MDT 1280mA KNX power supply with integrated choke provides a stable 30V DC for the KNX bus and includes an additional output without choke for extra applications. This power supply offers continuous diagnostics of bus voltage, current, overload, and any bus faults. Events such as voltage failure or return are logged with a timestamp in an internal ring buffer, which can be read via a 14-byte telegram. The device provides high reliability and can automatically detect faulty devices in the KNX line.
Main Features:
- Nominal current: 1280mA (choke output)
- Additional output without choke: 30V DC for additional load
- Diagnostic function: Continuous monitoring of bus voltage, current, overload, and bus faults
- Ring buffer: Stores all events with timestamps
- Bus fault detection: Detects missing devices in the KNX line
- Programmable functions: Via ETS software (ETS 4/5)
- LED indicators: 8 colored LEDs display status, including normal operation, overload, bus faults, and programming mode
Technical Specifications:
- Power supply: 230V AC, 50Hz
- KNX bus output voltage: 30V DC SELV (Safety Extra Low Voltage)
- Nominal current (choke output): 1280mA
- Output without choke: 30V DC SELV
- Maximum total current (both outputs): 1600mA
- Efficiency at nominal load: >89%
- Power loss at no load: <1.0W
- Temperature range: 0°C to +45°C
- Overload and short-circuit protection: Yes
- Overvoltage category: III
- Protection class: IP20 (for installation in dry indoor environments)
- Dimensions: 6TE (DIN 35mm rail mounting)
- Certification: ISO 9001 (Made in Germany)
- Warranty: 3 years
The MDT 1280mA power supply is designed for stable performance in KNX installations. The additional output without choke offers flexibility for various applications, while the integrated diagnostics ensure continuous monitoring of bus status. This product meets high-quality standards and is ideal for demanding environments where reliability and safety are paramount.
