960mA Bus Power Supply with diagnostic function 6SU MDRC

0 Review(s)

€260,65 Excl. tax €401,00 Excl. tax
€315,39 Incl. tax €485,21 Incl. tax. Out of stock, but available

Unit price: €260,65 / Piece

This KNX bus power supply delivers 960 mA of current and offers advanced diagnostics for bus overloads, power failures, and other issues. Suitable for DIN rail mounting, with integrated protections. Read more

Specifications

Brand:

MDT

Article number:

STC-0960.01

EAN:

4251916100018

Availability:

Out of stock, but available

Delivery time:

Will be shipped within approximately 8 working days.

Information

Datasheet

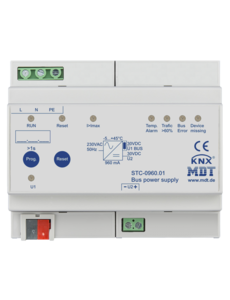

MDT KNX Bus Power Supply with Diagnostic Function | 960 mA

The MDT KNX bus power supply STC-0960.01 provides a constant, stabilized 30V DC voltage to the KNX bus and offers a nominal current of 960 mA. The power supply is equipped with an integrated bus coupling unit with advanced diagnostic functions such as monitoring bus voltage, current, and overload. All events, such as voltage failure or return, are stored with a timestamp in an internal ring buffer. This buffer can be read out using a 14-byte KNX telegram.

Product Features:

KNX power supply with integrated choke
Nominal current of 960 mA, continuous current up to 1280 mA
Bus diagnostics for bus voltage, current, and overload
Integrated fault detection for bus issues and device failure
Ring buffer for storing bus faults and status, readable with a 14-byte telegram
Short-circuit and overload protection
Suitable for DIN-rail installation (35 mm)
LED indicators for operating status, fault reports, and overload conditions

Technical Data:

Input voltage: 230VAC, 50Hz
KNX output voltage: 30VDC, SELV
Nominal current: 960 mA
Continuous current: 1280 mA
Choke-free output: 30VDC, SELV
Efficiency at nominal load: 87%
Power loss in no-load operation: < 1W
Operating temperature range: 0°C to +45°C
Dimensions: 6SU (108mm wide)
Protection class: IP20

Note:

The MDT KNX bus power supply is designed for installation in dry rooms and can be easily mounted on a standard DIN rail. This power supply complies with the strict requirements of ISO 9001 and comes with a 3-year warranty.
