Temperature controller/Sensor 6-fold, Surf.-mounted device
€210,54 Incl. tax €280,72 Incl. tax. Out of stock, but available
Specifications
Information

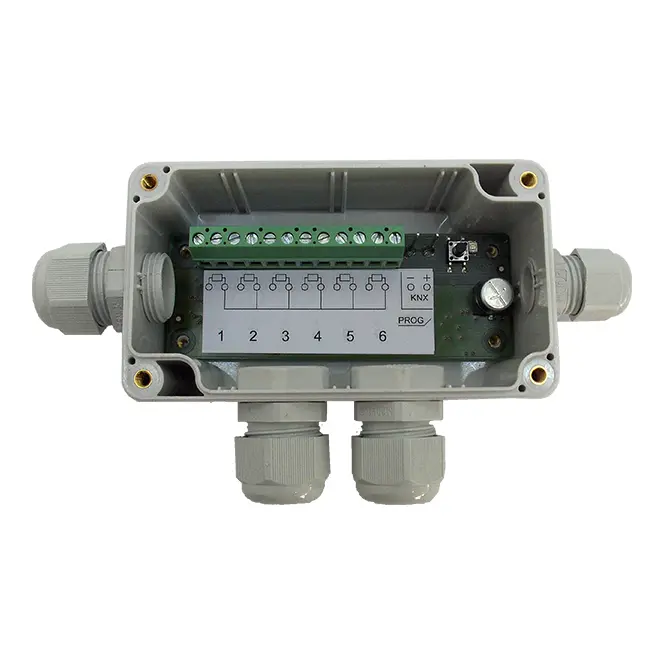

MDT Temperature Controller 6-fold - Surface-mounted
The MDT Temperature Controller 6-fold - surface-mounted is designed for versatile temperature control, ideal for managing heating and cooling systems. The device offers flexible control modes such as PI, two-step, and PWM, allowing precise temperature monitoring and regulation. With the integrated KNX bus interface, status feedback, and extensive protection functions, this is a reliable solution for advanced temperature management.
Product Features:
- Selectable control modes: PI, two-step, PWM
- Adjustable minimum and maximum limit values
- Frost and heat protection alarm
- Memory for minimum and maximum temperature values
- Programmable cyclical transmission of contact status
- Day, night, frost, and heat protection, including cooling function
- Status feedback via HVAC and RHCC status objects
- Operating modes adjustable via bit or byte objects
- Setpoint value adjustable via visualization, e.g., MDT VisuControl
- Integrated KNX bus coupler
- Manufactured in Germany, ISO 9001 certified
- 3-year factory warranty
Technical Specifications:
- Installation type: Surface-mounted
- Number of channels: 6
- Temperature control range: -20°C to +100°C (for PT1000 sensors)
- Supported sensors: PT1000 (with inputs for sensors up to 12 meters in length)
- Maximum sensor cable length: 12 meters
- KNX interface: TP-256
- Power supply: KNX bus (typical < 0.3W)
- Protection class: IP20
- Dimensions (Surface-mounted housing): 115mm x 64mm x 40mm
- Operating temperature: -5°C to +45°C
- Relative humidity: 5% to 93% (non-condensing)
Important Note:
To avoid interference, PT1000 sensor cables should not be laid parallel to 230VAC power lines. Ensure that applicable norms and guidelines for cable spacing are followed.
Related Products in this Series:
- SCN-RT2UP.01 Controller/Sensor 2-fold, flush-mounted
- SCN-RT4UP.01 Controller/Sensor 4-fold, flush-mounted
- SCN-RT6AP.01 Controller/Sensor 6-fold, surface-mounted
- SCN-RT8REG.02 Temperature Controller 8-fold, DIN rail
Available Accessories:
- SCN-PTST1.01 PT1000 sensor standard, dimensions 4mm x 30mm, 1m connection cable
- SCN-PTST3.01 PT1000 sensor standard, dimensions 6mm x 50mm, 3m connection cable
- SCN-PTAN3.01 PT1000 sensor for surface-mounted applications, dimensions 15mm x 22mm, 3m connection cable
- SCN-PTDE0.01 PT1000 sensor for ceiling mounting, borehole diameter 23mm, depth 28mm
