2-fold temperature controller for PT1000 flush-mounted device
€115,25 Incl. tax €153,67 Incl. tax. Out of stock, but available
Specifications
Information

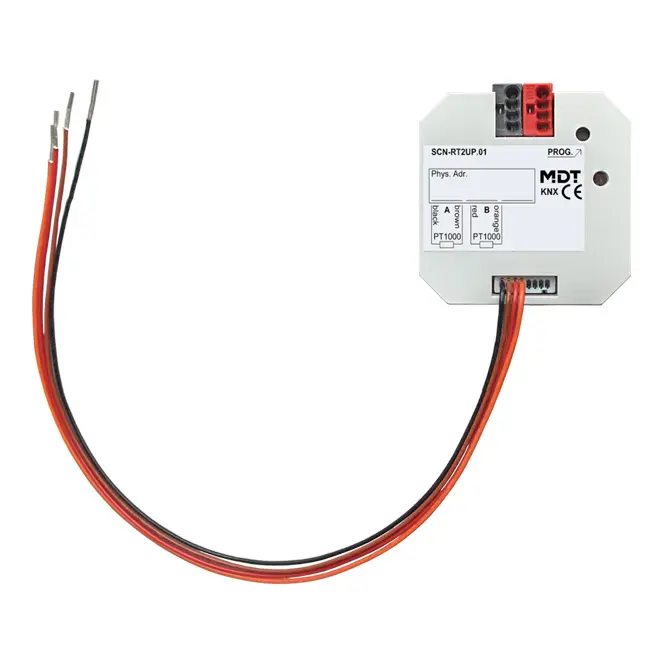

Temperature Controller 2-fold for Built-in Box
The MDT Temperature Controller 2-fold is a versatile and precise temperature controller designed for installation in built-in boxes. The device operates via the KNX bus and is compatible with PT1000 temperature sensors, enabling reliable temperature measurement. It supports multiple operating modes such as day, night, frost, and heat protection, making it ideal for a range of heating and cooling applications.
Key Features
- Selectable temperature controller (PI, two-step, PWM)
- Adjustable threshold values for minimum and maximum temperatures
- Frost and heat protection alarm with alerts for exceeding thresholds
- Memory function for storing minimum and maximum temperature values
- Programmable cyclic sending of contact status to the KNX bus
- Operating modes: day, night, frost, and heat protection, with cooling function
- Status feedback via HVAC and RHCC status objects
- Switchable operating modes via Bit or Byte objects
- Setpoint value adjustable via visualization, such as MDT VisuControl or KNX buttons
- Integrated KNX bus coupling unit
Technical Specifications
- Number of measurement channels: 2
- Temperature measurement range: -20°C to +100°C
- Control range: +7°C to +35°C
- Adjustable threshold values: +1°C to +40°C
- Maximum cable length for PT1000 sensors: 12 meters
- Power supply: via KNX bus
- Protection class: IP20, suitable for indoor use
- Dimensions: 41mm x 41mm x 12mm (for installation in built-in boxes)
- KNX interface specification: TP-256
- Cable specification for KNX bus: 0.8 mm Ø, solid core
- Power consumption: typically < 0.3 W
- Compatible with ETS 3/4/5/6 for configuration
- Made in Germany, certified according to ISO 9001
- Warranty: 3 years
Important Note
When using PT1000 sensors, sensor cables should not be laid parallel to 230VAC power lines to avoid interference. Installation of this device must be carried out in dry indoor spaces. The maximum cable length for PT1000 sensors should not exceed 12 meters.
Other available article numbers and names in this series
- SCN-RT8REG.02: Temperature Controller 8-fold, 2TE DIN-rail (REG)
- SCN-RT6AP.01: Temperature Controller/Sensor 6-fold, Surface-mounted (AP), with inputs for PT1000 sensors up to 12m length
- SCN-RT2UP.01: Temperature Controller/Sensor 2-fold, Built-in (UP), with inputs for PT1000 sensors up to 12m length
- SCN-RT4UP.01: Temperature Controller/Sensor 4-fold, Built-in (UP), with inputs for PT1000 sensors up to 12m length
Sensors and Accessories
- SCN-PTST1.01: PT1000 Sensor, standard dimensions 4mm x 30mm, 1m connection cable
- SCN-PTST3.01: PT1000 Sensor, standard dimensions 6mm x 50mm, 3m connection cable
- SCN-PTAN3.01: PT1000 Sensor for surface mounting, dimensions 15mm x 22mm, 3m connection cable
- SCN-PTDE0.01: PT1000 Sensor for ceiling mounting, drill hole diameter 23mm, depth 28mm
For more information and downloadable ETS configuration files, please visit our website: www.mdt.de/Downloads.html.
