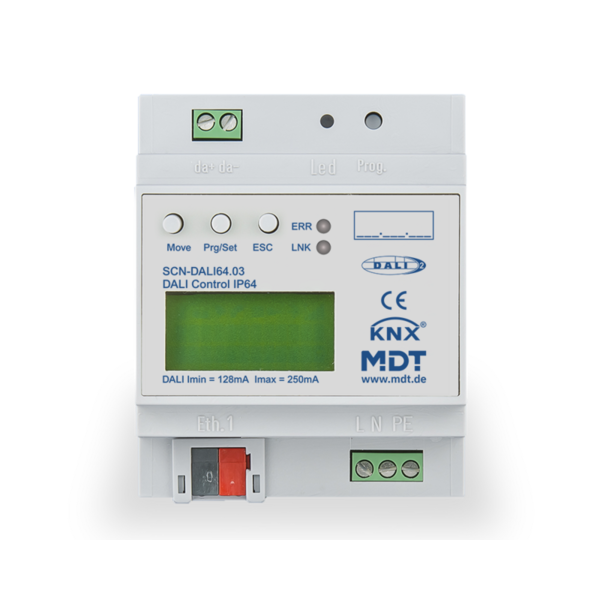

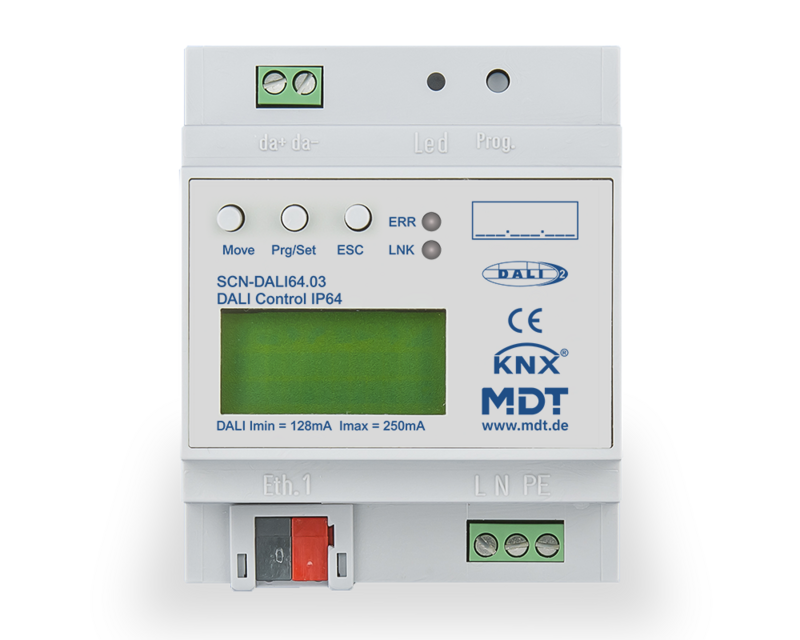

DALI Control IP64 Gateway

The MDT DALI Control IP64 Gateway provides a comprehensive interface between the KNX system and the DALI lighting system. It supports both DALI and DALI-2 standards and can control up to 64 ECGs (electronic ballasts) and 16 DALI groups. The gateway features an intuitive web interface for DALI commissioning and ballast replacement without the need for ETS software.

Key Features

• Control of up to 64 ECGs and 16 DALI groups.
• Compatible with DALI and DALI-2 standards (DT6 and DT8).
• Innovative color control, including HSV, RGB, RGBW, and XY colors according to DALI DT8 standard.
• Tunable White support for precise color temperature control.
• Manual operation for all 16 groups, including 16 programmable scenes with individual dimming times.
• Test mode for emergency lighting systems powered by central batteries.
• Support for single battery emergency luminaires (DT-1, EN 62386-202).
• Energy-saving function for switching off ECGs via additional KNX switch actuators.
• Quick ECG replacement and fault detection for lamps and ballasts.
• Commissioning via web browser or directly on the device display.
• Free DCA app available for DALI commissioning.

Technical Specifications

• Outputs: 1 DALI output, supports up to 64 ECGs.
• Groups: Up to 16 DALI groups.
• Power Supply: 230VAC/50Hz, typical power consumption < 7W.
• Maximum DALI Voltage: 16-20V DC.
• Maximum DALI Current: 250mA.
• Protection Rating: IP20, for installation in dry rooms.
• Operating Temperature: 0°C to +45°C.
• Storage Temperature: -25°C to +55°C.
• Maximum Humidity: 93%, non-condensing.
• Installation Type: MDRC, 4SU width (35mm DIN rail).
• KNX Interface: TP-256 with Long Frame support for ETS5.
• Cable Specifications:
  • Screw terminal: 0.5 - 4.0 mm² solid core, 0.5 - 2.5 mm² stranded wire.
  • KNX bus connection: 0.8 mm Ø, solid core.

Additional Features

• Supports emergency lighting with central batteries and single battery emergency luminaires.
• Integrated time-controlled color and scene control module.
• Quick group assignment and addressing directly on the device without KNX connection.
• RJ45 network connection for easy installation and DALI commissioning.
• ISO 9001-certified production in Germany.
• 3-year warranty.

The MDT DALI Control IP64 Gateway is designed for easy installation and seamless operation. It provides the ability to control a wide range of lighting modes and emergency lighting systems, making it ideal for commercial and residential applications. With its intuitive web interface and flexible KNX integration, this gateway offers a powerful solution for modern lighting management needs.
