DALI Control 64 Gateway 2 DALI outputs
€429,25 Incl. tax €572,33 Incl. tax. Out of stock, but available
Specifications
Information
Device Configuration App (DCA) ETS5/6

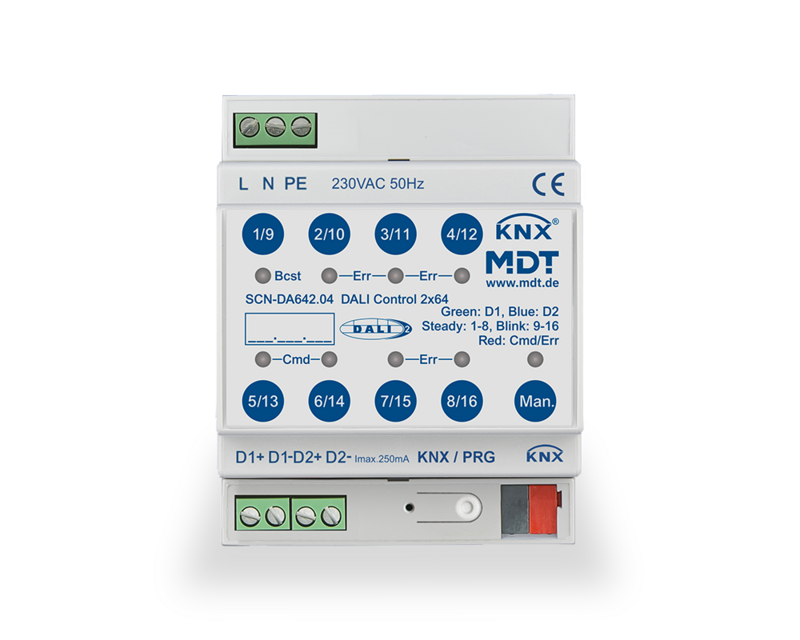

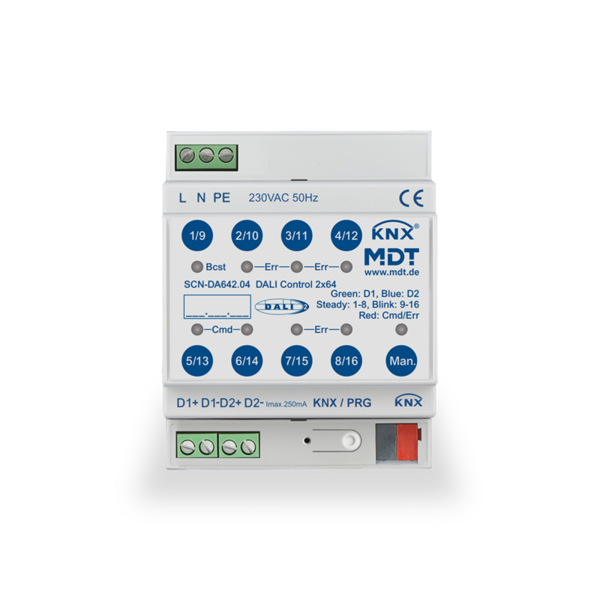

DALI Control 64 Gateway - 2 Outputs
The MDT DALI Control 64 Gateway forms the interface between the KNX system and DALI lighting, providing comprehensive control over switching, dimming, and color management of DALI lights. The device supports both DALI and DALI-2 standards and is compatible with ECGs according to DALI DT6 and DT8 standards. With two DALI outputs, it allows control of up to 128 ECGs (2 x 64 ECGs) and 32 DALI groups (2 x 16), offering flexible lighting solutions.
Main Features:
- Supports DALI and DALI-2 standard (DT6 and DT8 ECGs)
- Individual control of up to 64 ECGs and 16 DALI groups per output
- Innovative color control in HSV color space, RGB, RGBW, and XY color according to DALI DT8 standard
- Tunable White functionality for white light color temperature control
- Integrated color control module with up to 300 time-dependent color commands
- Supports 16 lighting scenes with individual dimming times for each scene
- Operation modes such as normal operation, continuous operation, night mode, staircase function, and panic mode
- Manual control of lighting groups via buttons on the device
- Fault detection at lamp and ECG level for quick troubleshooting
- Simple and fast replacement of faulty ECGs
- Energy-saving function to reduce power consumption by switching off ECGs in DALI groups
- Compatible with the free DCA app for DALI bus commissioning and scene configuration
- ETS5/6 support for system commissioning
Technical Specifications:
- Outputs: 2 DALI outputs, single-master
- Maximum number of ECGs: 2 x 64 ECGs
- Number of DALI groups: 2 x 16 groups
- Power supply: 230 VAC / 50 Hz
- Power consumption: < 5W
- Maximum DALI current: 250 mA
- DALI output voltage: Typical 16V DC
- Guaranteed current supply: 128 mA per output
- Recommended wire cross-section: Minimum 1.5 mm²
- Operating temperature: 0 to +45°C
- Protection class: IP20, for use in dry rooms
- Dimensions: 4SU (MDRC, suitable for installation on 35mm DIN rails)
- Certification: KNX certified according to EN 62386-101 and EN 62386-103
Available Versions:
- SCN-DA641.04: DALI Control 64 Gateway, 4SU MDRC, supports up to 64 ECGs and 16 DALI groups
- SCN-DA642.04: DALI Control 2 x 64 Gateway, 4SU MDRC, supports up to 2 x 64 ECGs and 2 x 16 DALI groups (with 2 DALI outputs)
Related products
The DALI Control Broadcast Gateway offers four intelligent channels for lighting with DALI and DALI-2 standards, HSV colour control, RGB/RGBW, and Tunable White. It features energy management and KNX Data Secure functionality.
€270,44 Incl. tax
The DALI Control 64 Gateway forms the interface between KNX and DALI bus, offering HSV, RGB, RGBW, and Tunable White color control. Suitable for 64 ECGs in 16 groups, supports DALI DT8 and configured via ETS5.
€363,91 Incl. tax

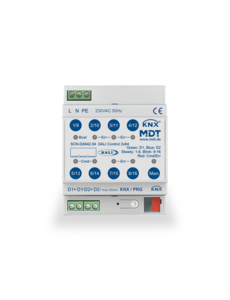

The DALI Control 64 Gateway interfaces between KNX and DALI for switching, dimming, and color control of DALI lights. Supports DALI DT6/DT8, RGB, Tunable White, and more with two DALI outputs.
