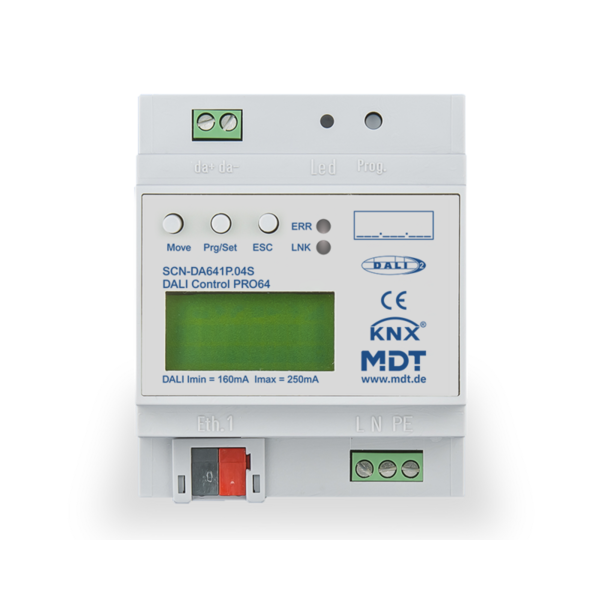

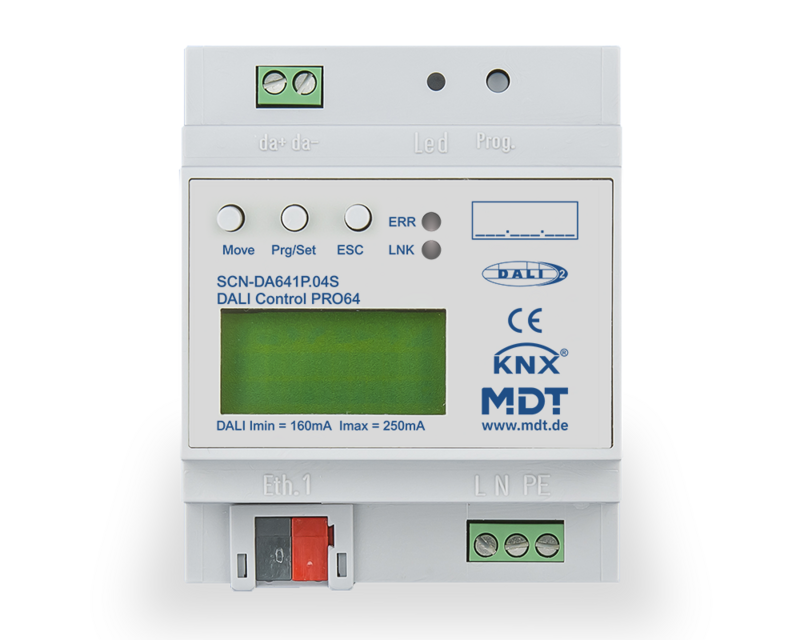

DALI Control PRO64 Gateway

The DALI Control PRO64 Gateway is a powerful multi-master application controller designed to manage electronic ballasts (ECGs) with a DALI interface via the KNX bus. The device supports both DALI and DALI-2 standards, ensuring compatibility with a wide range of lighting solutions. The Gateway can control up to 64 ECGs and is equipped with innovative color control features such as HSV, RGBW, and Tunable White. Additionally, up to 8 DALI-2 motion detectors or light sensors can be connected.

Key Features:

• Individual control of up to 64 ECGs or 16 DALI groups.
• Support for DALI and DALI-2 standards, including DALI-2 sensors.
• Innovative HSV color control, as well as RGB, RGBW, and Tunable White according to DALI DT8 standard.
• KNX Secure device with fully encrypted communication.
• Support for 16 scenes with individually adjustable dimming times.
• Energy-saving features with 16 flexible standby groups for efficient switching via KNX switch actuators.
• Manual operation for all 16 groups directly from the device.
• Supports DALI DT6 and DT8 ECG devices for extended functionality.
• Integrated time-dependent color control with dynamic transitions between colors or temperatures.
• Supports emergency lighting systems according to EN 62386-202 (battery-powered systems).
• DALI commissioning can be performed via a web browser or directly on the device display.
• Quick replacement of ECGs without requiring ETS, thanks to the integrated web interface.
• Free DCA app for easy commissioning and configuration of the DALI bus system.
• ETS5/ETS6 software required for full commissioning and configuration of the device.

Technical Specifications:

• DALI Outputs: 1 DALI output for up to 64 ECGs.
• Maximum number of sensors: Up to 8 DALI-2 motion detectors and light sensors.
• DALI Bus Voltage: Typically 18 VDC, short-circuit protected, maximum current capacity 250 mA.
• Dimensions: 4SU width (DIN rail mounting).
• Connections: Screw terminals for DALI bus, KNX connection via standard KNX bus connector, Ethernet via RJ45 port.
• Ethernet Interface: 100Base-T, supports IEEE 802.3 standard (100 Mbit/s connection).
• KNX Interface: TP-256 with support for long frames in ETS5 and ETS6.
• Power Supply: 230VAC, 50Hz, with maximum power consumption of 8W.
• Operating Temperature: -5°C to +45°C for stable operation under normal conditions.
• Protection Class: IP20, suitable for dry indoor installations.
• Overload Protection: Automatic shutdown after 5 seconds when a short circuit is detected on the DALI line.
• Compatibility: Full support for DALI DT6 and DT8 devices, including RGBW and Tunable White devices.
• Energy Management: 16 standby groups for energy optimization and selective shutdown of unused groups.
• Scene Management: Supports 16 customizable scenes with adjustable transition and dimming times.
• Maximum Power Load: Guaranteed supply of 160 mA, with a maximum current capacity of 250 mA for connected DALI devices.
• Certification: Certified according to KNX and DIIA (according to EN 62386-101 ed2 and EN 62386-103 ed2).

Safety and Installation Instructions:

The device must be installed by a qualified electrician in accordance with applicable national regulations. Ensure that all DALI devices are properly connected and that the total current consumption does not exceed the maximum current capacity of the device. The device has integrated short-circuit protection, automatically shutting down the DALI output when a short circuit is detected. The system will recover within 5 seconds after the issue is resolved.

Additional Note:

Note: Full configuration and commissioning of the DALI bus system requires the free DCA app, available on the MDT website. Ensure that all connected devices comply with DALI standards and that the maximum current capacity is not exceeded.

This product is designed and manufactured in Germany, meets ISO 9001 standards, and comes with a 3-year warranty.
