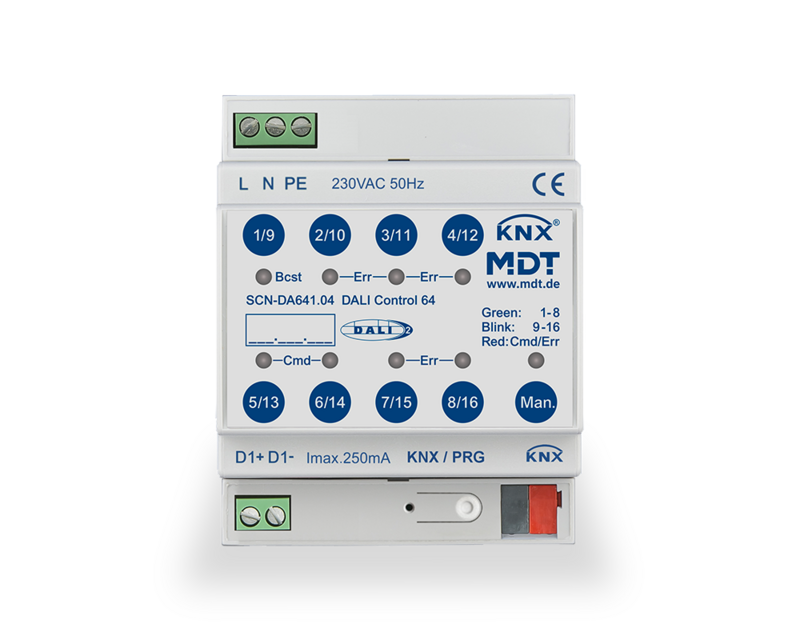

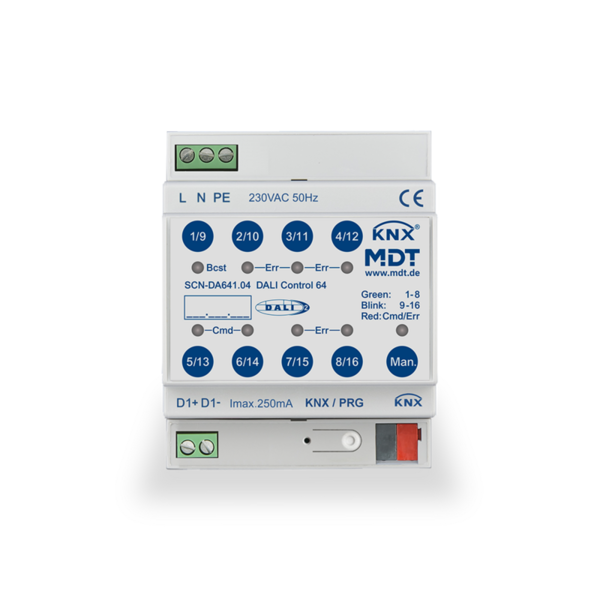

MDT DALI Control 64 Gateway - 1 Output

The MDT DALI Control 64 Gateway with 1 DALI output forms the interface between the KNX system and the DALI bus, offering extensive possibilities for controlling lighting in commercial and residential environments. The gateway supports DALI and DALI-2 standards, enabling the control of single-color, RGB, RGBW, and Tunable White lighting.

Main Features

• Supports up to 64 ECGs (Electronic Control Gear) and 16 DALI groups.
• Innovative color control: HSV (Hue, Saturation, Value), RGB, RGBW, and Tunable White according to the DALI DT8 standard.
• Integrated color control module for time-dependent lighting settings in up to 300 steps.
• Supports 16 programmable lighting scenes with individual dimming times.
• Compatible with both DALI and DALI-2 lighting and complies with the DALI DT6/DT8 standard.
• Manual operation and fault detection of lamps and ECGs with quick replacement capability.
• Operating modes such as normal operation, continuous operation, night mode, staircase, and panic operation.
• Energy monitoring and saving function for switching off ECGs in DALI groups.
• Quick replacement of defective ECGs through automatic detection and reset function.
• Configuration and commissioning with ETS5 or higher, using a free DCA app for scene and time control.

Technical Specifications

• Number of outputs: 1 DALI output for up to 64 ECGs and 16 groups.
• Maximum DALI voltage: 16V DC.
• Recommended wire cross-section: Minimum 1.5 mm².
• Guaranteed supply current: 128 mA, maximum current 250 mA.
• Shutdown delay: 600 ms after DALI short circuit.
• Restart after shutdown: 5 seconds after short circuit detection.
• KNX Interface: TP-256 with Long Frame support, ETS5 / ETS6.
• Connections: KNX bus connection 0.8 mm Ø, solid core. Screw terminal 0.5 - 4.0 mm² (solid core) and 0.5 - 2.5 mm² (stranded).
• Power supply: 230V AC / 50 Hz.
• Power consumption: Typically < 5W.
• Protection class: IP 20.
• Dimensions: 4SU (Space Units), for mounting on a DIN rail (35 mm).
• Operating temperature range: 0 to +45°C.
• Certification: KNX-certified according to EN 62386-101 ed2 and EN 62386-103 ed2.

Operating Modes and Additional Features

• Modes: Normal operation, continuous operation, night mode, staircase lighting, and panic mode.
• Scenes: Support for 16 scenes with individual dimming times.
• Color control: HSV, RGB, RGBW, Tunable White, and XY color control according to the DALI DT8 standard.
• Time-dependent lighting: Up to 300 steps for time-dependent color adjustments.
• Energy management: Function for switching off ECGs to save energy in DALI groups.
• Fault detection: Detects lamp failures and faulty ECGs.

Available Versions

• SCN-DA641.04 DALI Control 64 Gateway, 4SU MDRC, suitable for 64 ECGs / 16 DALI groups.
• SCN-DA642.04 DALI Control 2 x 64 Gateway, 4SU MDRC, suitable for 2 x 64 ECGs / 16 DALI groups (2 DALI outputs).

The MDT DALI Control 64 Gateway provides a comprehensive solution for integrating KNX with DALI systems, including advanced color control capabilities and flexibility in lighting scene management.
