KNX RF+ Shutter Actuator 1 fold 230Vac 10A
€127,50 Excl. tax
€170,00 Excl. tax
€154,28 Incl. tax €205,70 Incl. tax. In stock (1)
€154,28 Incl. tax €205,70 Incl. tax. In stock (1)
The MDT KNX RF+ Shutter Actuator controls a shutter or blind with 230 V. Easily programmable via ETS5, with 8 scenes, automatic functions, sun protection, and positioning. Read more
Specifications
Brand:
MDT
Article number:
RF-JAL1UP.01
EAN:
4251916148591
Availability:
In stock (1)
Information

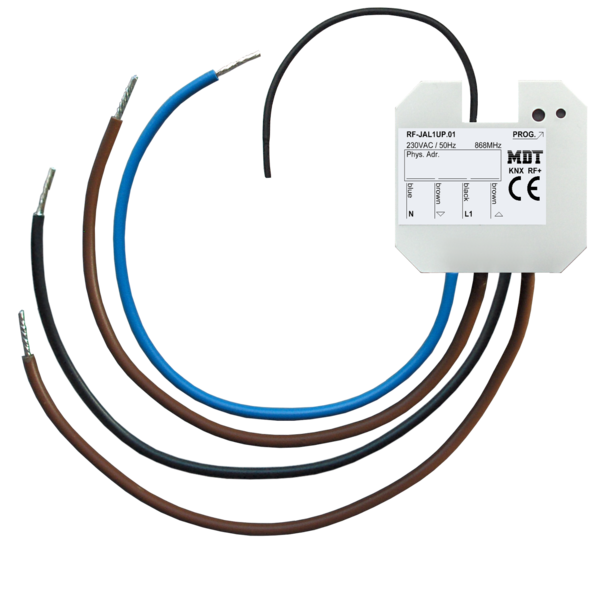

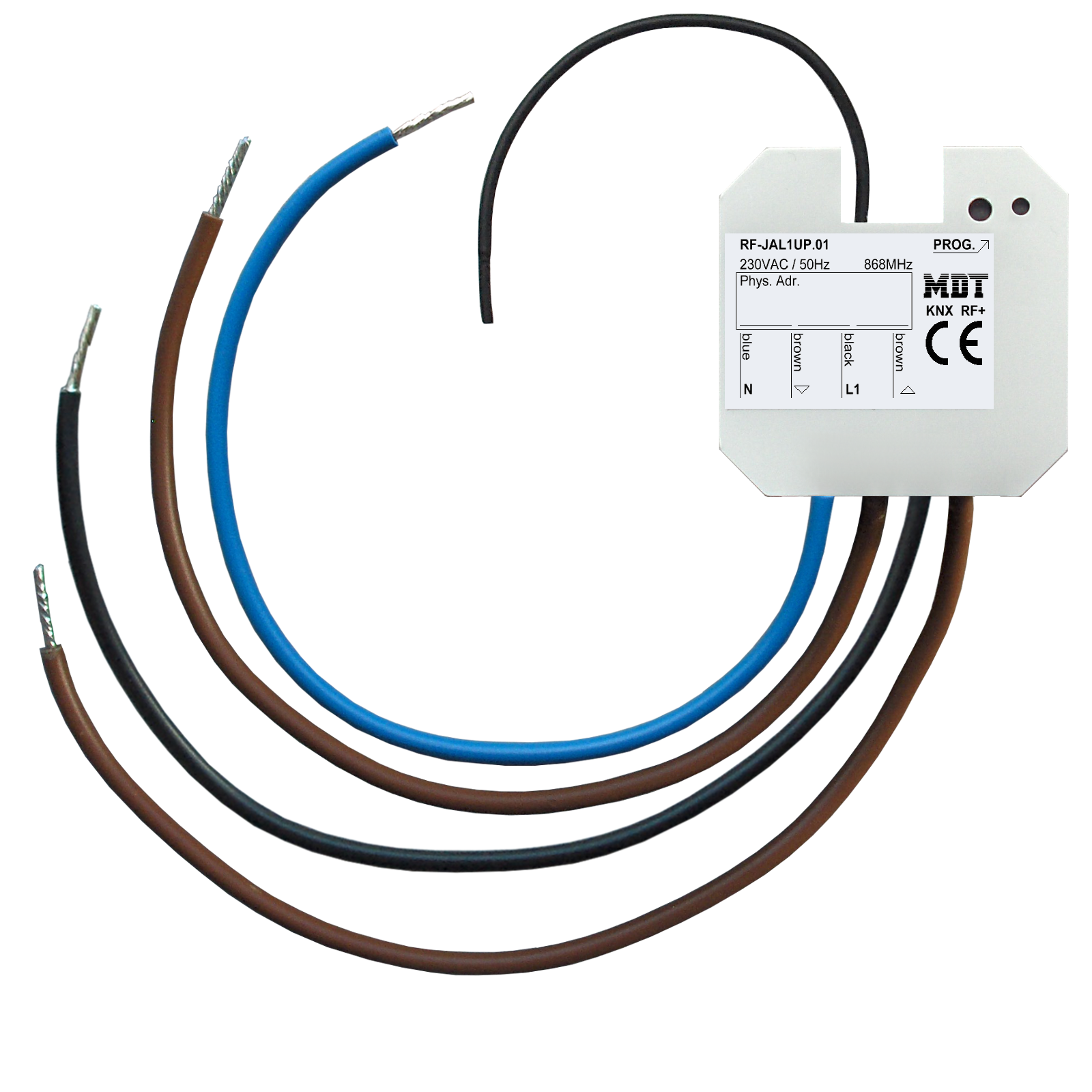

MDT KNX RF+ Shutter Actuator – Support for shutters and blinds
The MDT KNX RF+ Shutter Actuator controls a shutter or blind with 230 V, using the KNX RF+ protocol in system mode. This compact device is ideal for modern installations without KNX bus cables. Installation is easy in a standard flush-mounted box.
Main Features
- Compatible with KNX RF+ S-Mode, programmable via ETS5 or higher.
- Suitable for use within the EU with a frequency of 868 MHz.
- Supports automatic control and sun protection, with adjustable travel times.
- Program up to 8 scenes per channel for various settings.
- Alarm, central, and lock functions are available.
- Connection to the KNX bus via a KNX RF+ line coupler.
- Power supply: 230 V AC.
Technical Specifications
- Number of channels: 1
- Maximum load: 300 W for shutter motors
- Switching capacity: 10 A (resistive load)
- Operating temperature: 0 to +45°C
- Protection class: IP 20
- Dimensions: 41 mm x 41 mm x 22 mm (W x H x D)
The MDT KNX RF+ Shutter Actuator provides a reliable solution for automation without additional wiring. In the event of a power failure, all outputs are switched off. Manufactured in Germany and certified according to ISO 9001.
Note: For full functionality, an ETS5 programming system and a KNX RF+ line coupler are required. The product database is available at www.mdt.de.
