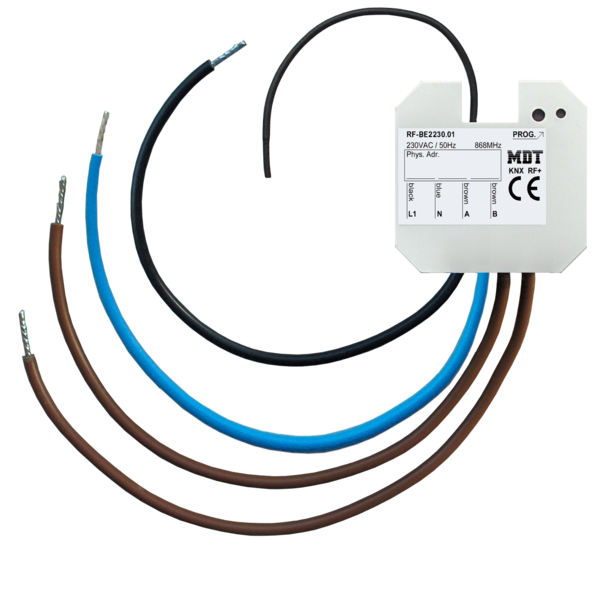

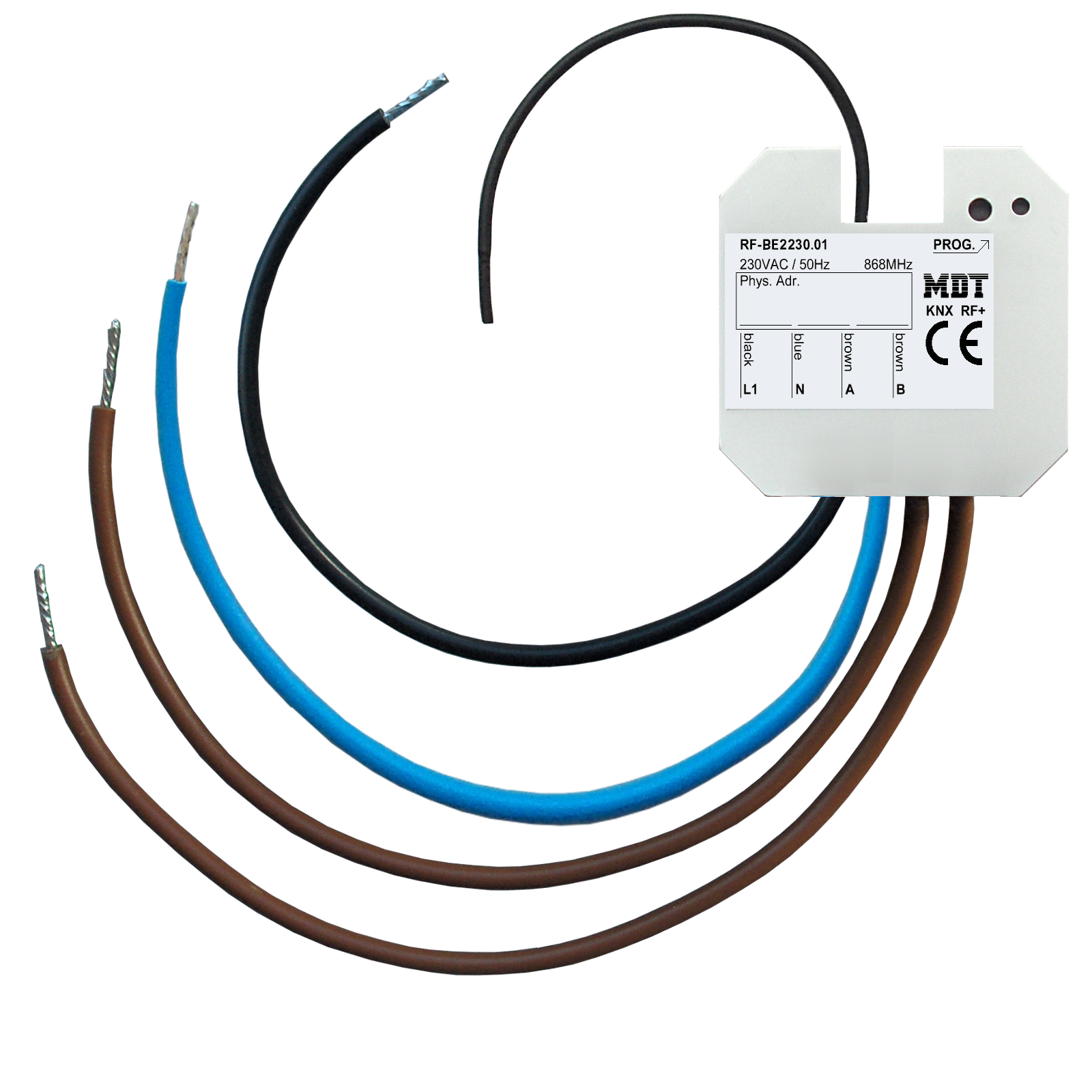

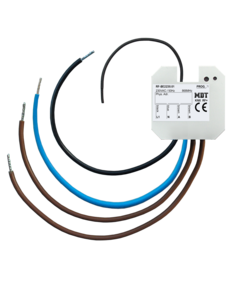

KNX-RF Wireless Push-Button Interface | 2-fold 230Vac

0 Review(s)

€109,50 Excl. tax €146,00 Excl. tax
€132,50 Incl. tax €176,66 Incl. tax. Out of stock, but available

Unit price: €109,50 / Piece

Interface for KNX RF+ system, suitable for 230VAC signals. Supports switches, blinds, and pulse counting. Flexible installation without KNX bus cables, flush-mounted. Read more

Specifications

Brand:

MDT

Article number:

RF-BE2230.01

EAN:

4251916148546

Availability:

Out of stock, but available

Information

Datasheet

MDT KNX RF+ Universal Interface 2-fold, Flush Mounted

The MDT KNX RF+ Universal Interface detects status changes at the inputs and sends KNX telegrams according to the parameter settings. This device is suitable for connecting conventional switches, push-buttons, and presence detectors. Utilizing four integrated logic modules, it enables complex logical functions such as lighting control, blinds operation, and pulse counting. Each input can be individually parameterized via ETS.

Product Features

Supports KNX RF+ protocol in system mode
Configuration with ETS 5 or higher
Operation on 230V AC, suitable for EU (868 MHz)
Connection for switches, blinds control, and sensors
4 integrated logic modules for logical operations
NO/NC contact operation, adjustable push-button actuation time
Forced setting function for each output
Supports short/long button push operation
Pulse counting and cyclic sending of contact state
Flush-mounted installation in an electrical box
Connection via MDT KNX RF+ Line Coupler
Manufactured in Germany, certified according to ISO 9001
3-year warranty

Technical Data

Number of inputs: 2
Contact voltage: 230VAC
Transmission frequency: 868.3 MHz
Range: 150m
Output level: 10dBm
Power supply: 230VAC/50Hz
Protection class: IP20
Dimensions (W x H x D): 41mm x 41mm x 24mm
Operating temperature: 0 to +45°C

Note: This interface is ideal for existing installations without KNX bus cables. The connection to the KNX bus is made via a KNX RF+ Line Coupler.
