KNX Tastsensor Smart 63 | without and with Temp./Humidity Sensor
€104,00 Excl. tax
€160,00 Excl. tax
€125,84 Incl. tax €193,60 Incl. tax. Out of stock, but available
€125,84 Incl. tax €193,60 Incl. tax. Out of stock, but available
The Push-button Smart 63 features a color display, RGB status LEDs, and 4 buttons for switching, dimming, blinds, and more. Available with or without temperature and humidity sensor. Read more
Specifications
Brand:
MDT
Article number:
BE-TAS6304.01
EAN:
4251916111298
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information

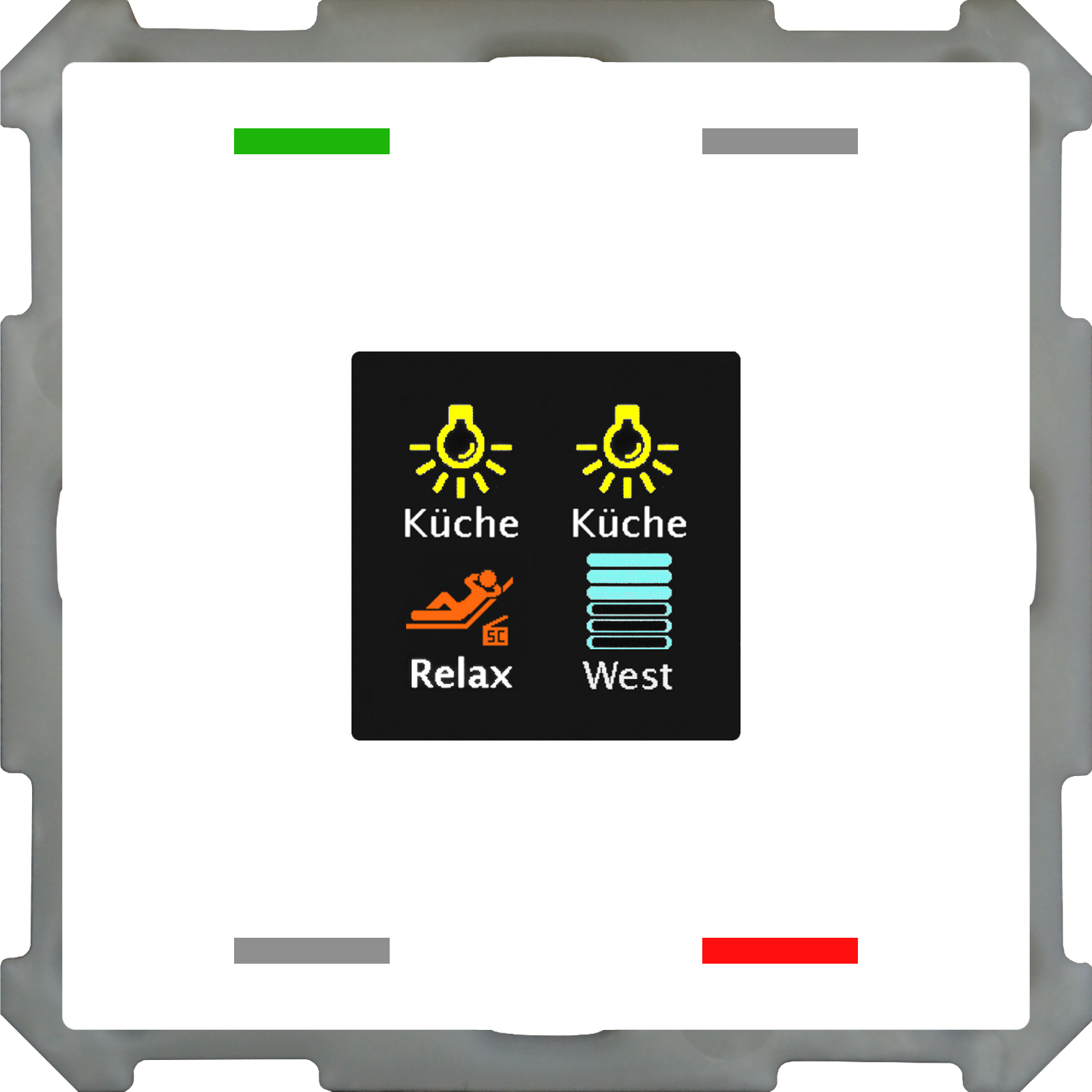

MDT Push-button Smart 63
The MDT Push-button Smart 63 features a central color display and mechanical push-buttons. The 4 buttons can control various functions such as switching, dimming, blinds, and scenes. Each button has its own RGB status LED, which can be controlled via internal or external objects. The LED brightness can be adjusted using a day/night object. The push-button is available with or without a temperature and humidity sensor.
Main Features
- Compatible with 63 mm systems such as Busch-Jaeger future linear, solo, carat, Busch-axcent.
- Active color display for function and status indication.
- Adjustable background color (white or black).
- Automatic brightness via light sensor and day/night object.
- Visualization of indoor/outdoor temperature and time.
- Includes integrated temperature and humidity sensor (only BE-TAS63T4.01).
- Multi-touch function: send up to 4 values to the same or different objects.
- Innovative group control with long/extra-long button press.
- 1 and 2 button operation for switching, dimming, shutters, values.
- Customizable symbols and text for each button.
Technical Data
| Model | BE-TAS6304.01 | BE-TAS63T4.01 |
|---|---|---|
| Number of buttons | 4 | 4 |
| Temperature range | -- | 0 to +40°C |
| Humidity sensor range | -- | 0-95% |
| Protection class | IP20 | IP20 |
| Dimensions | 63mm x 63mm | 63mm x 63mm |
For project design and commissioning of the MDT Push-button Smart 63, it is recommended to use the ETS software. Please download the application at www.mdt.de/downloads.html.
Note: Installation in a flush-mounted box with the included support ring. Made in Germany according to ISO 9001. No additional power supply required.
