Motion Detector/Automatic Switch 63

0 Review(s)

€98,80 Excl. tax €152,00 Excl. tax
€119,55 Incl. tax €183,92 Incl. tax. Out of stock, but available

Unit price: €98,80 / Piece

Motion detector with light sensor, 2 lighting channels, HVAC and monitoring channel. Available with or without temperature sensor. Fits 63 mm systems like Busch-Jaeger. Read more

Specifications

Brand:

MDT

Article number:

SCN-BWM63.02

EAN:

4251916111359

Availability:

Out of stock, but available

Delivery time:

Will be shipped within approximately 8 working days.

Information

Datasheet

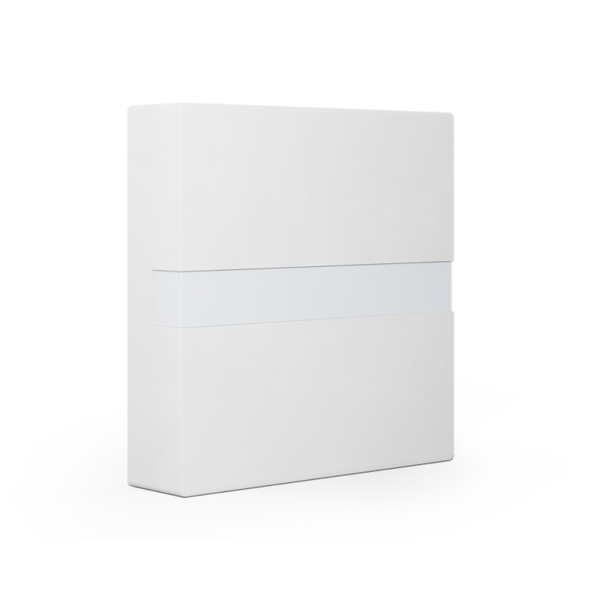

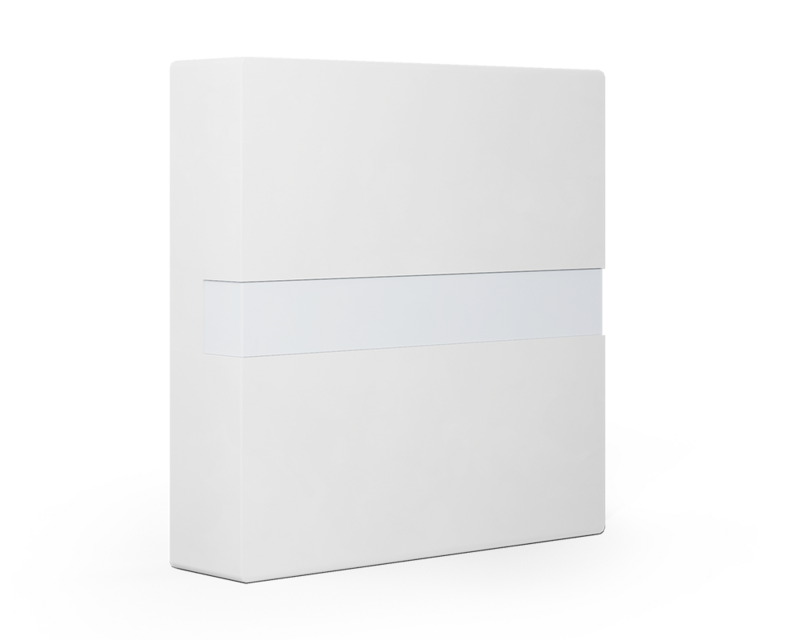

MDT Motion Detector / Automatic Switch 63

The MDT Motion Detector / Automatic Switch with light sensor detects the smallest movements using 2 pyro sensors and a high-resolution lens. The detector offers 2 separate lighting channels, 1 HVAC channel, and 1 monitoring channel, which can be easily configured. This model is available in versions with or without an integrated temperature sensor.

Includes light sensor (5 - 1000 lux) and optional temperature sensor (for SCN-BWM63T.02)
Detection range of 6-10 meters with a horizontal angle of 180° and a vertical angle of 15°
Suitable for pets up to 12 kg
2 programmable sensor buttons (for SCN-BWM63T.02)
Master/slave function, scenes, and logic functions available
Day/night function and orientation light
Block and forced operation function with release time
External push button input for manual and automatic operation
Integrated white LED night light
Made in Germany, ISO 9001 certified

Important note: This device is designed for use in dry indoor environments and should be installed at a recommended height of 1.05 - 1.20 meters for optimal performance. For project design and commissioning, it is recommended to use the ETS software. The application software can be downloaded from www.mdt.de/downloads.html.
