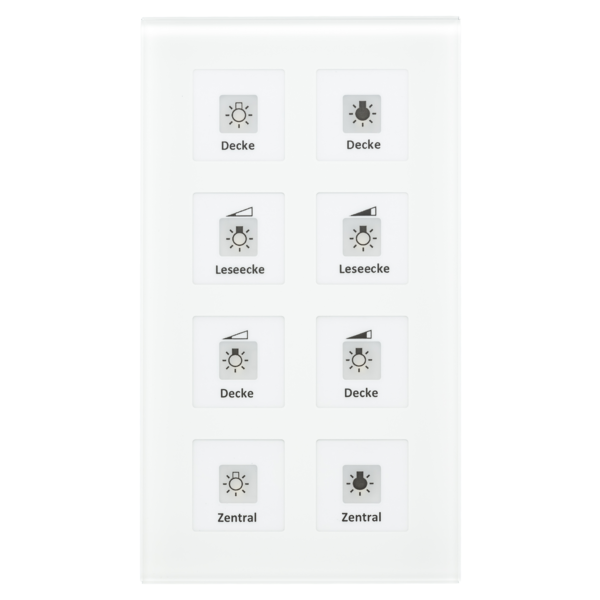

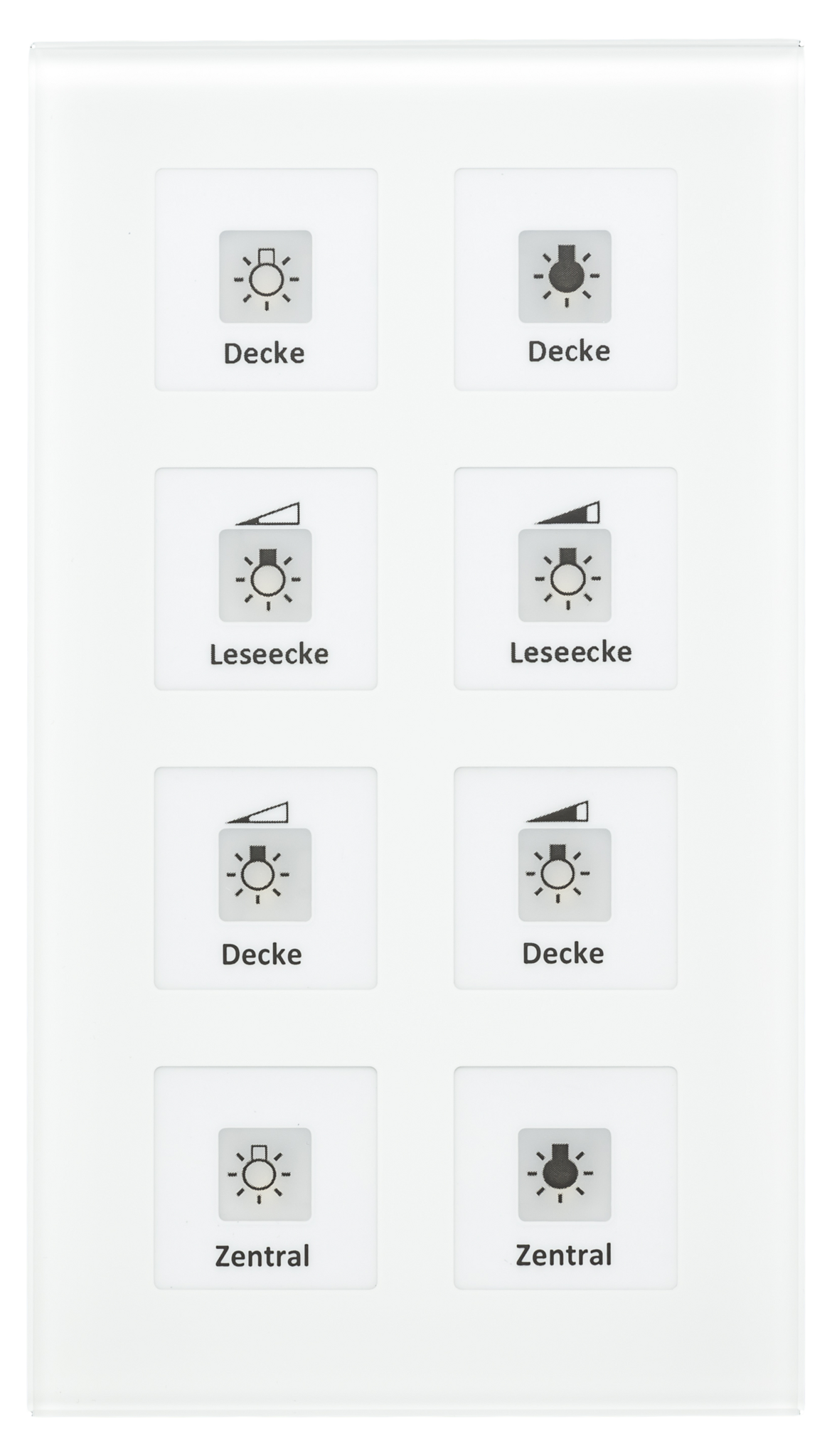

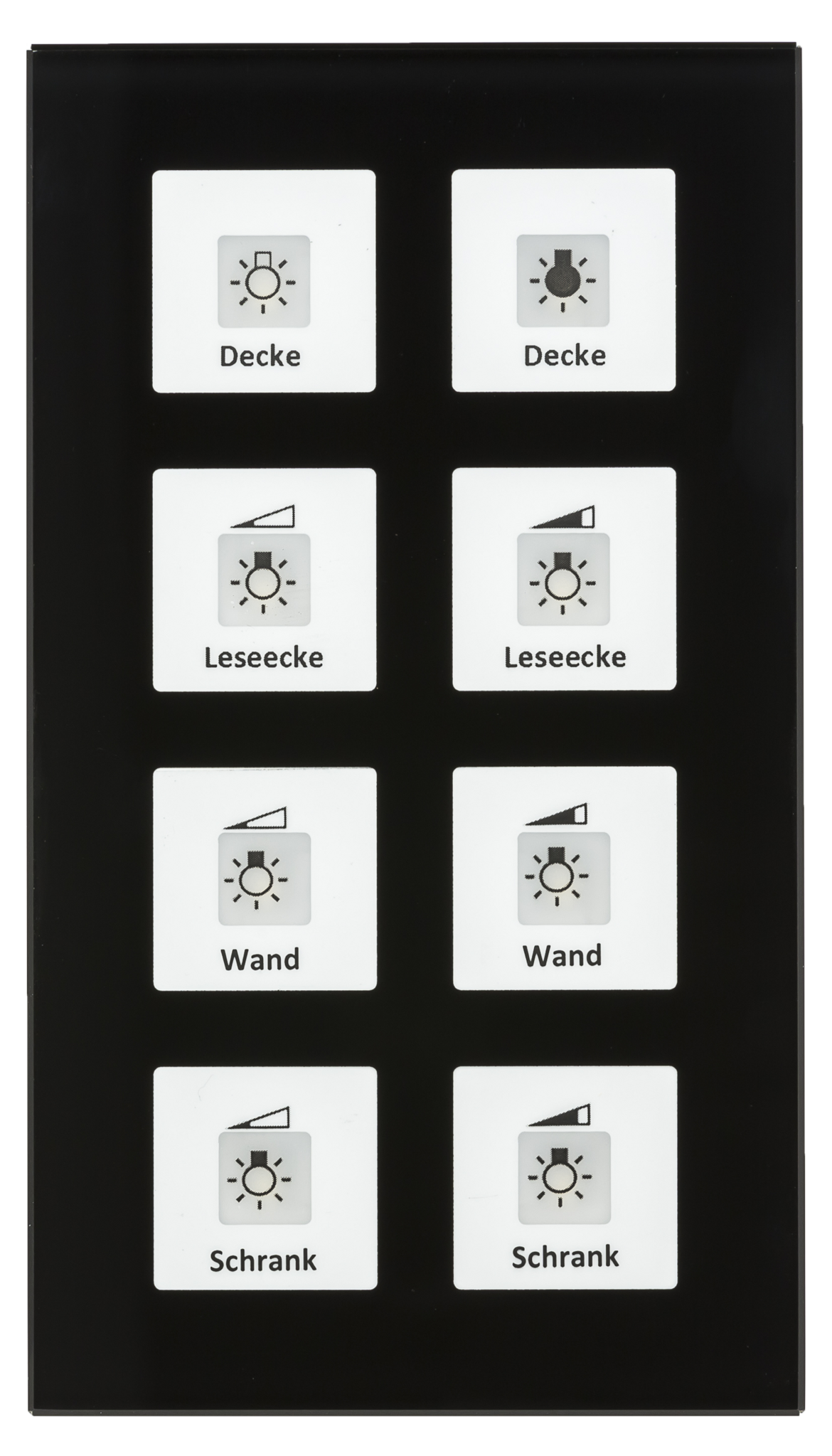

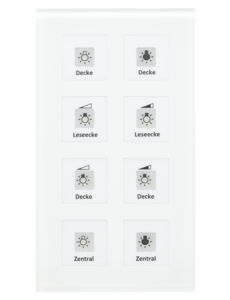

KNX RF+ Glass Push Button Plus 8-fold with switching actuator
€235,04 Incl. tax €313,39 Incl. tax. Out of stock, but available
Specifications
Information
KNX RF+ Glass Push-button 8-fold – Smart Control with Integrated Actuator
The KNX RF+ Glass Push-button 8-fold provides a versatile solution for intelligent control of lighting, blinds, and other electrical functions. The device features an integrated switching actuator, allowing direct control of connected loads. Additionally, it has a built-in temperature sensor for accurate measurements and supports functions such as switching, dimming, scenes, and blind control. The operation can be configured for 1- or 2-button use, with contact operation set as NO (normally open) or NC (normally closed).
Features
- Support for KNX RF+ protocol in system mode
- Configuration via ETS5 or higher
- Integrated switching actuator for direct control of connected devices
- Built-in temperature sensor for room temperature measurement
- Programmable sensor areas, 1- or 2-button operation possible
- Short and long button press functions with 2 objects
- Independent forced setting for each output
- Supports blind and shutter control with 1 or 2 buttons
- Configurable as 4-fold switching actuator or 2-fold shutter actuator
- 4 integrated logic functions and cleaning mode
- Surrounding orientation light with day/night object
- Integrated bus coupling unit
Technical Specifications
- Dimensions: 8-fold 92 x 163 mm
- Power supply: 230 V AC, 50 Hz
- IP rating: IP20, for indoor use
- Transmission frequency: 868.3 MHz, range up to 150 meters
- Maximum switching load: 10 A, capacitive load up to 14 µF
- Operating temperature range: 0°C to +45°C
- Output lifespan: 1,000,000 switching cycles
The KNX RF+ Glass Push-button comes with a support ring for easy installation and a labeling film for customization. For ETS configuration, download the application software from www.mdt.de.
Important Note: This device is designed for fixed installations in dry rooms. Installation should be done in mounting boxes according to applicable standards.
