Glass Central Operation Unit Smart
€274,97 Incl. tax €366,63 Incl. tax. Out of stock, but available
Specifications
Information

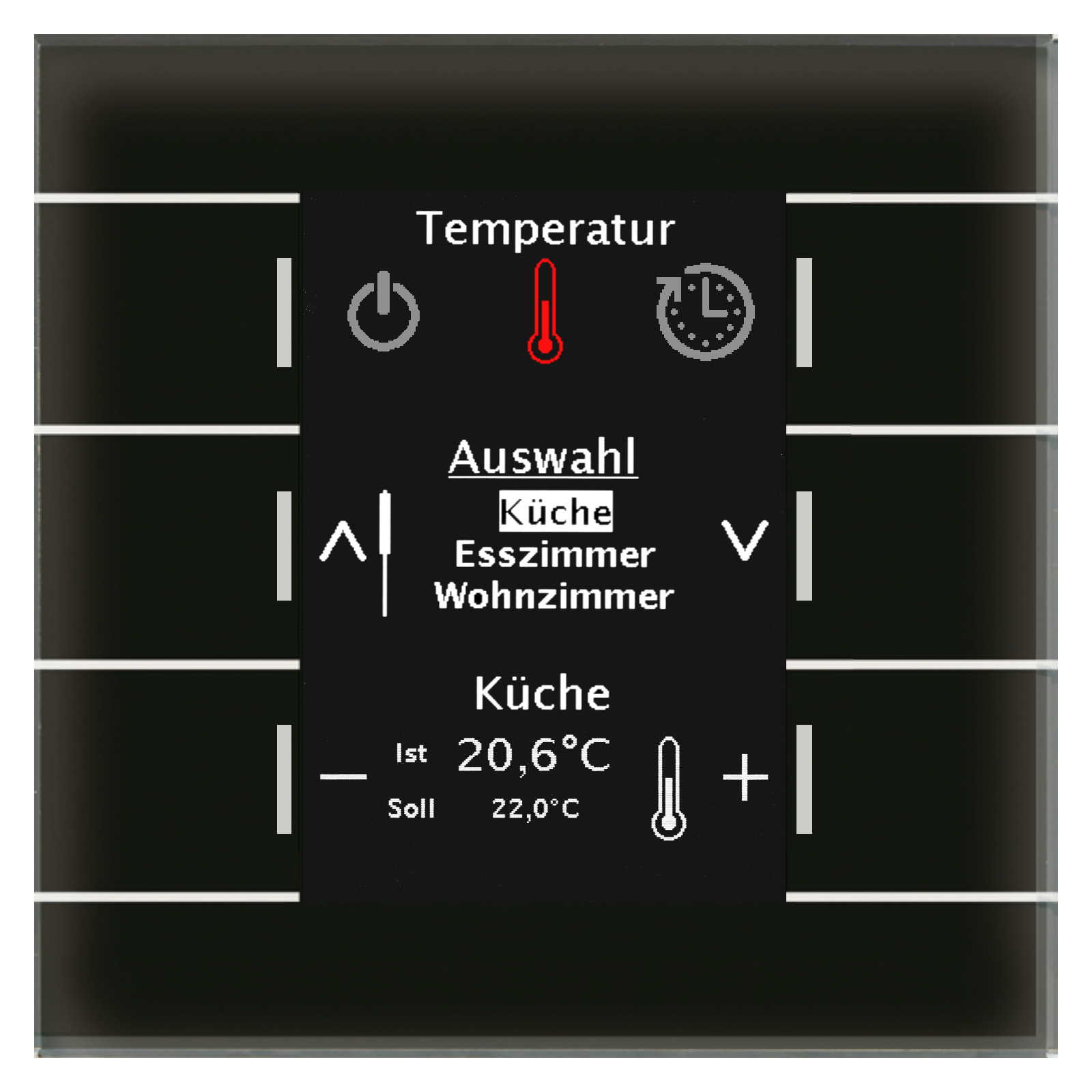

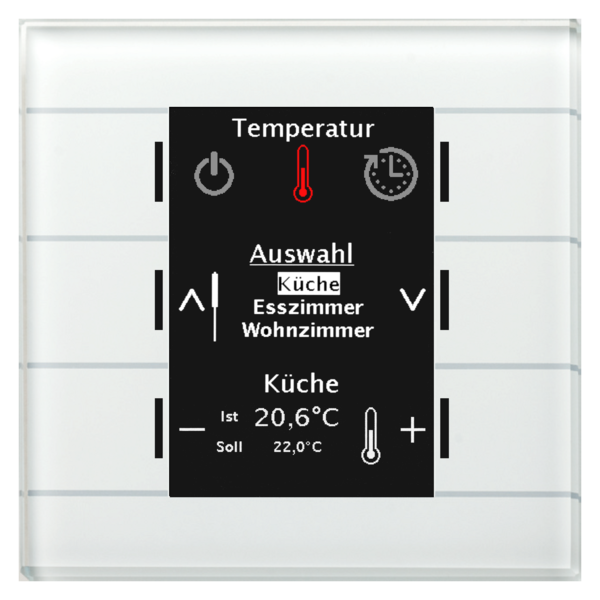

MDT Glass Central Operation Unit Smart
The MDT Central Operation Unit Smart combines numerous functions in one device and serves as a central control unit for your smart home. With the integrated astronomical timer, the blinds are automatically raised in the morning and lowered again after sunset. Additionally, the outdoor and basic lighting in the house are switched on at sunset until midnight. All timer functions and switching times are individually adjustable.
The Central Operation Unit Smart measures and regulates room temperature and controls the ventilation system with heat recovery. The comfort temperature can be individually set for each room, and automatic shading can be activated via the menu. You can lock your blinds for window cleaning or activate your KNX alarm system via the integrated code lock.
Key Features
- Large, active color display with automatic brightness adjustment
- Four direct operating functions (e.g., present, light, blinds)
- 20 operating functions via menu or timer (e.g., dimmer, switching, temperature settings)
- Code lock with 4-6 digits for locking and alarm activation
- Daily, weekly, and astronomical timer with 20 channels (each with 6 switching times)
- Holiday function with time period activation
- Visualization of indoor/outdoor temperature, setpoint, time/date
- 6 status LEDs independently controllable
The Central Operation Unit Smart is designed for flush-mounted installation in a wall box and requires no additional power supply. Made in Germany and certified according to ISO 9001. 3-year warranty.
Technical Specifications
- Dimensions (W x H x D): 92 mm x 92 mm x 29.2 mm
- Installation: Flush-mounted
- Protection class: IP20
- Operating temperature range: 0 to +45°C
- Power supply: KNX bus, no external power supply required
- Temperature sensor range: -10 to +50°C
For project planning and commissioning, the use of the ETS software is recommended.
Important: This product is suitable for use in dry rooms.
