CO2 / VOC Combi Sensor 55
€223,50 Excl. tax
€298,00 Excl. tax
€270,44 Incl. tax €360,58 Incl. tax. Out of stock, but available
€270,44 Incl. tax €360,58 Incl. tax. Out of stock, but available
The MDT CO2/VOC Combi Sensor 55 measures CO2, VOC, temperature, and humidity for optimal air quality. Early warning of high concentrations, fits 55mm systems. Read more
Specifications
Brand:
MDT
Article number:
SCN-CO2MGS.02
EAN:
4251916111960
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information

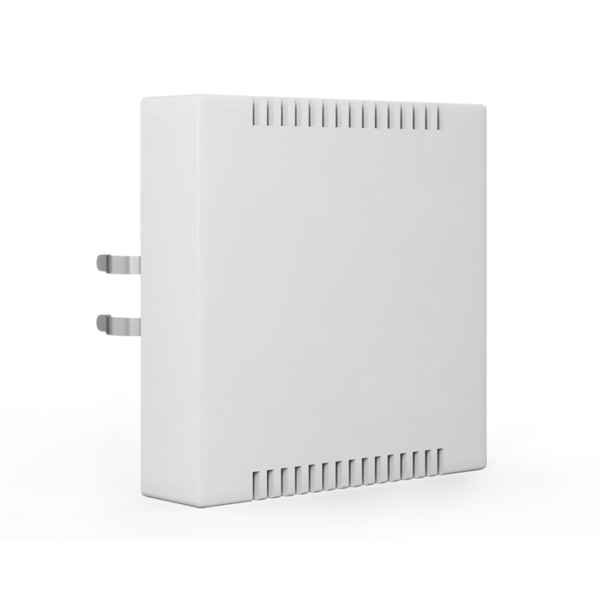

MDT CO2/VOC Combi Sensor 55
The MDT CO2/VOC Combi Sensor 55 offers advanced monitoring of indoor air quality by measuring CO2, volatile organic compounds (VOC), room temperature, and relative humidity. Designed for installation in airtight flush-mounted boxes, the sensor fits perfectly with the 55mm switch ranges of leading brands like GIRA, BERKER, JUNG, and MERTEN. This product provides early warning of elevated CO2 or VOC concentrations, essential for maintaining a healthy indoor environment.
Key Features:
- Measurements: CO2 (400-5000 ppm), VOC (0-500 IAQ), temperature (0-40°C), humidity (0-95%)
- Upper and lower thresholds adjustable per measured value
- PI controller for CO2 and VOC with externally adjustable setpoint
- Visual air quality indication with 4-channel color display
- Powered via KNX bus, no additional power supply required
Specifications:
- Protection class: IP 20
- Operating temperature: 0-45°C
- Humidity range: max. 95% without condensation
- Installation: flush-mounted (minimum depth 35mm, airtight)
- Dimensions: 55mm x 55mm x 13mm
Available Variants:
- SCN-CO2MGS.02 CO2 / VOC Combi Sensor 55 Glossy Pure White
- SCN-CO2MGS01.02 CO2 / VOC Combi Sensor 55 Pure White Matte

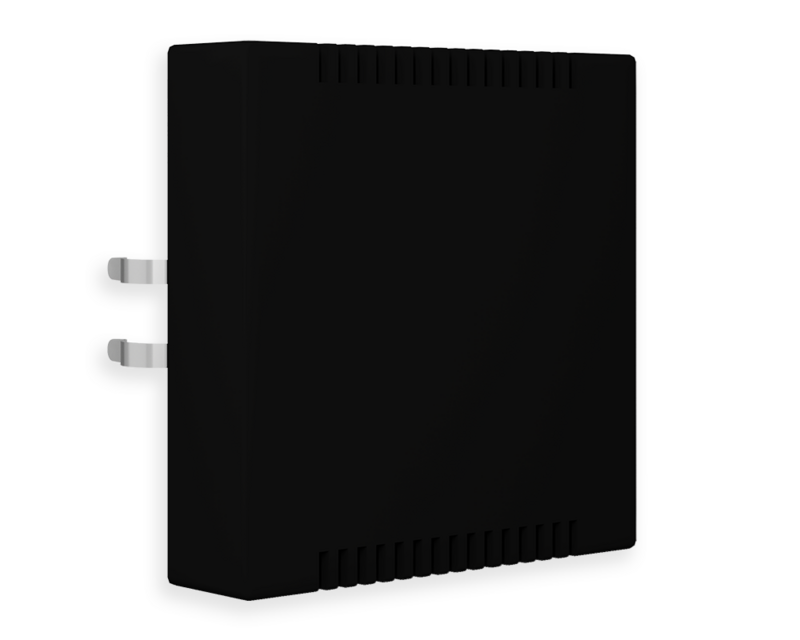

- SCN-CO2MGS06.02 CO2 / VOC Combi Sensor 55 Black Matte
