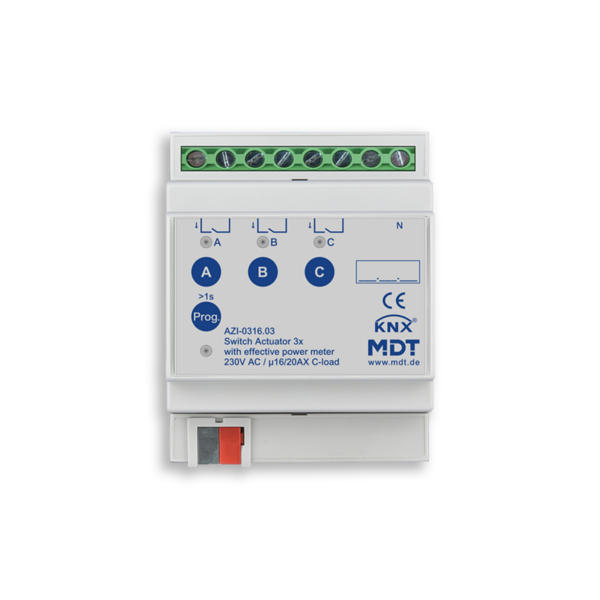

3 fold Switch Actuator AZI active power measurement | series .03 16/20Amp C-load
€205,40 Excl. tax
€316,00 Excl. tax
€248,53 Incl. tax €382,36 Incl. tax. Out of stock, but available
€248,53 Incl. tax €382,36 Incl. tax. Out of stock, but available
Switch actuator with active power measurement for industrial use. Supports high inrush currents up to 16/20 A and C-loads up to 200 µF. Provides precise current and voltage measurement with integrated active power meter. Read more
Specifications
Brand:
MDT
Article number:
AZI-0316.03
EAN:
4251916130855
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information
MDT Switch Actuator AZI with Active Power Measurement | Series .03
The MDT Switch Actuator AZI with active power measurement combines switching high inrush currents with the precision of active power measurement. Each channel can be switched independently via bistable relays, supporting currents up to 16/20 A and C-loads up to 200 µF. The device features an integrated active power meter that accurately measures both per-channel and total energy consumption.
Key Features:
- Supports current and voltage measurement (True RMS) with a range from 10 mA to 20 A.
- Built-in power meter for active and reactive power measurement (Wh/kWh).
- Manual operation available via push-buttons, with LED indicators for each channel.
- Switching functions like on/off delays and staircase lighting function.
- Threshold values for consumption and automatic shutdown.
- Logical linking of binary data and 8 scenes per channel.
- Operating hours counter and service countdown timer.
- Customizable behavior for bus or mains voltage failure.
Technical Specifications:
- Number of channels: 3 or 6
- Rated current: 16/20 A
- C-load capacity: 200 µF
- Nominal voltage: 230 V AC
- Measurement accuracy: 2%
- Inrush current: Max. 600 A / 150 µs
- Protection rating: IP20
- Operating temperature: 0 ... 45 °C
For project design and commissioning, ETS5 or later is recommended. The device is designed for installation on a 35 mm DIN rail in dry indoor spaces.
