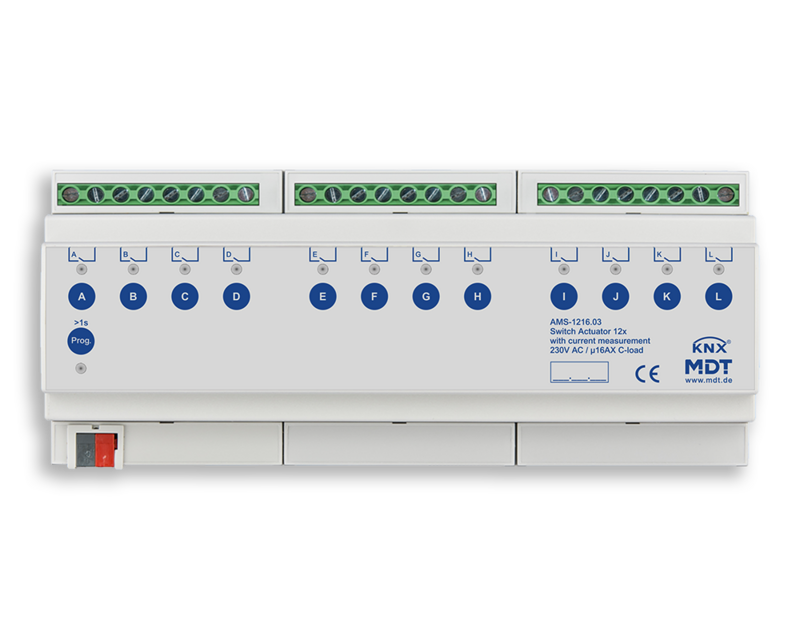

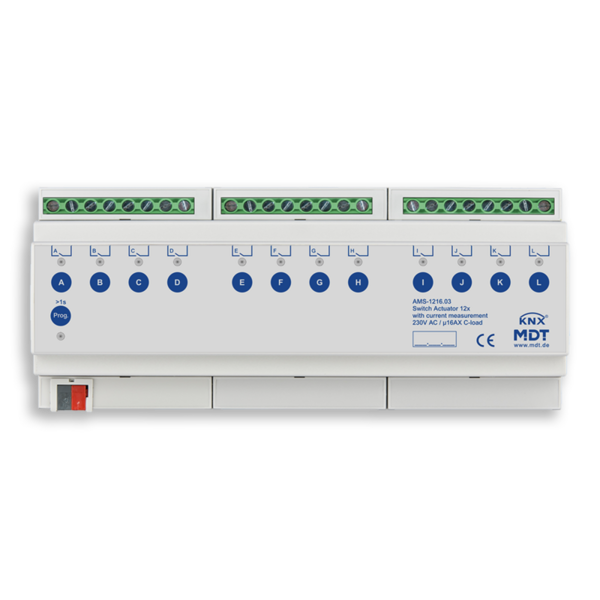

12-fold Switch Actuator with Current Measurement (AMS-1216.03)

The MDT 12-fold switch actuator with integrated current measurement provides reliable control up to 16 A per channel. With support for C-Load (140 µF) and an integrated energy meter function (Wh/kWh), this device is ideal for energy management and automation in smart buildings.

Technical Specifications

• Number of channels: 12
• Module width: 12 SU (MDRC)
• Current measurement per channel: 10 mA to 16 A
• Total current carrying capacity: 128 A
• Measurement accuracy: 2%
• Sampling rate: 2000 measurements / 500 ms
• Voltage: 230 V AC
• Capacitive load: 140 µF (C-Load)
• Maximum inrush current: 600 A / 150 µs, 250 A / 600 µs
• Maximum loads:
  • Incandescent lamps: 2500 W
  • Halogen lamps 230 V: 2500 W
  • Halogen lamps, electronic transformer: 1500 W
  • Fluorescent lamps, not compensated: 2300 W
  • Fluorescent lamps, parallel compensated: 1300 W
• Output life expectancy (mechanical): 1,000,000 switching operations
• Protection class: IP20
• Operating temperature: 0 ... 45 °C
• Maximum number of electronic transformers: 20
• Manual operation: Yes, via buttons on the device
• LED status indicator per channel
• Functions: RMS current measurement, integrated energy meter (Wh/kWh), time delay, energy metering
• ETS software support: Yes (from ETS5)
• Power supply via KNX bus: Typically <0.4 W

Product Features

• Fast reaction (< 1 second) in master/slave configuration
• Integrated energy meter function for precise consumption measurement (Wh/kWh)
• Individual programming per channel via ETS software
• Extended status functions (inverted, cyclic, when locked)
• Priority and forced operation with automatic release time
• Adjustable behavior on bus or power failure (configurable per channel)

Note

The device is designed for fixed mounting on a 35 mm DIN rail in dry indoor spaces. It is not permitted to operate mixed nominal and safety extra-low voltages (SELV) within the actuator. All relays maintain their current switching position during a power failure. In the event of bus voltage failure or return, the relay switching positions can be programmed individually for each channel.

Available Part Numbers in this Series

• AMS-0416.03 Switch Actuator 4-fold 4 SU MDRC, 16 A, 230 V AC, C-load, 140 µF, current measurement
• AMS-0816.03 Switch Actuator 8-fold 8 SU MDRC, 16 A, 230 V AC, C-load, 140 µF, current measurement
• AMS-1216.03 Switch Actuator 12-fold 12 SU MDRC, 16 A, 230 V AC, C-load, 140 µF, current measurement
