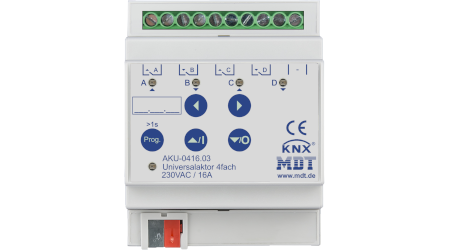

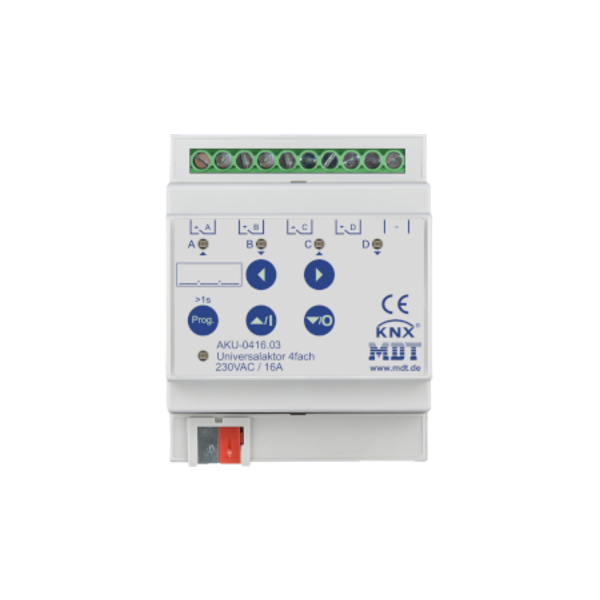

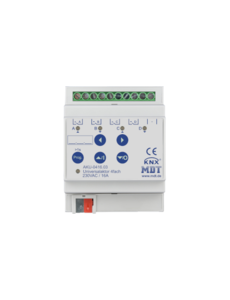

Universal Actuator for KNX (AKU Series, 16 A)

The MDT Universal Actuator from the AKU series offers versatile capabilities for switching, shutter control, and heating. The device supports automatic shading, PWM control, and ventilation functions, and can manage up to 8 scenes per channel. Ideal for various KNX applications. Available in versions from 4- to 24-fold with a capacitive load of 100 µF.

Main Features:

• Part of the AKU series, suitable for 16 A with 100 µF capacity
• Automatic shading and louvre adjustment based on sun position
• Heating control with PWM (0-100%) for precise temperature regulation
• Ventilation function for open or tilted windows, with automatic shut-off
• Time functions: switch-on/off delay, staircase lighting function, and direction change delay
• Manual operation via push buttons and LED status indicators for each channel
• Logical linking of binary data and 8 scenes per channel
• Central switching functions and blocking for forced operation
• Adjustable behavior in case of bus voltage failure or recovery
• 8-bit positioning for shutters and blinds, and 1-bit automatic functions
• Separable power supply phases for flexible installation
• Quick application download with ETS 5 or higher, supports long frames
• Output lifespan: 1,000,000 switching cycles (mechanical)

Technical Specifications:

• Voltage: 230 V AC
• Maximum current: 16 A (resistive load)
• Capacitive load: 100 µF
• Channels: Available in 4-, 6-, 8-, 16-, and 24-fold
• Protection class: IP20
• Operating temperature range: 0 ... 45 °C
• DIN rail mounting (35 mm) in power distribution boards
• Maximum inrush current: 400 A / 150 µs, 200 A / 600 µs
• Maximum load for shutter motors: 600 W
• Maximum load for incandescent lamps: 2300 W
• Maximum load for halogen lamps (230 V): 2300 W
• Maximum load for electronic halogen transformers: 1300 W
• Maximum load for fluorescent lamps (not compensated): 2000 W
• Maximum load for fluorescent lamps (parallel compensated): 1200 W
• Maximum number of electronic transformers: 15
• Wire gauge: 0.5 - 4.0 mm² (screw terminals), 0.8 mm (KNX bus connection)
• Torque screw terminal: 0.5 Nm
• Power consumption KNX bus: typ. < 0.15 W

Note: Mixed operation of nominal and safety extra low voltage (SELV) within the actuator is not allowed.

For project design and commissioning, it is recommended to use ETS 5 or higher. The application software is available for download at www.mdt.de/Downloads.html.

Available Variants:

• AKU-0416.03 Universal Actuator 4-fold 4 SU MDRC, 230 V AC, 16 A
• AKU-0616.03 Universal Actuator 6-fold 4 SU MDRC, 230 V AC, 16 A
• AKU-0816.03 Universal Actuator 8-fold 4 SU MDRC, 230 V AC, 16 A
• AKU-1616.03 Universal Actuator 16-fold 8 SU MDRC, 230 V AC, 16 A
• AKU-2416.03 Universal Actuator 24-fold 12 SU MDRC, 230 V AC, 16 A

The MDT Universal Actuator is produced in Germany and certified according to ISO 9001. The device comes with a 3-year warranty.
